– Dash Panel
WIRING HARNESS
CONFIGURATION DIAGRAMS
Connector
symbol
–66
thru
–89
and
–98
B

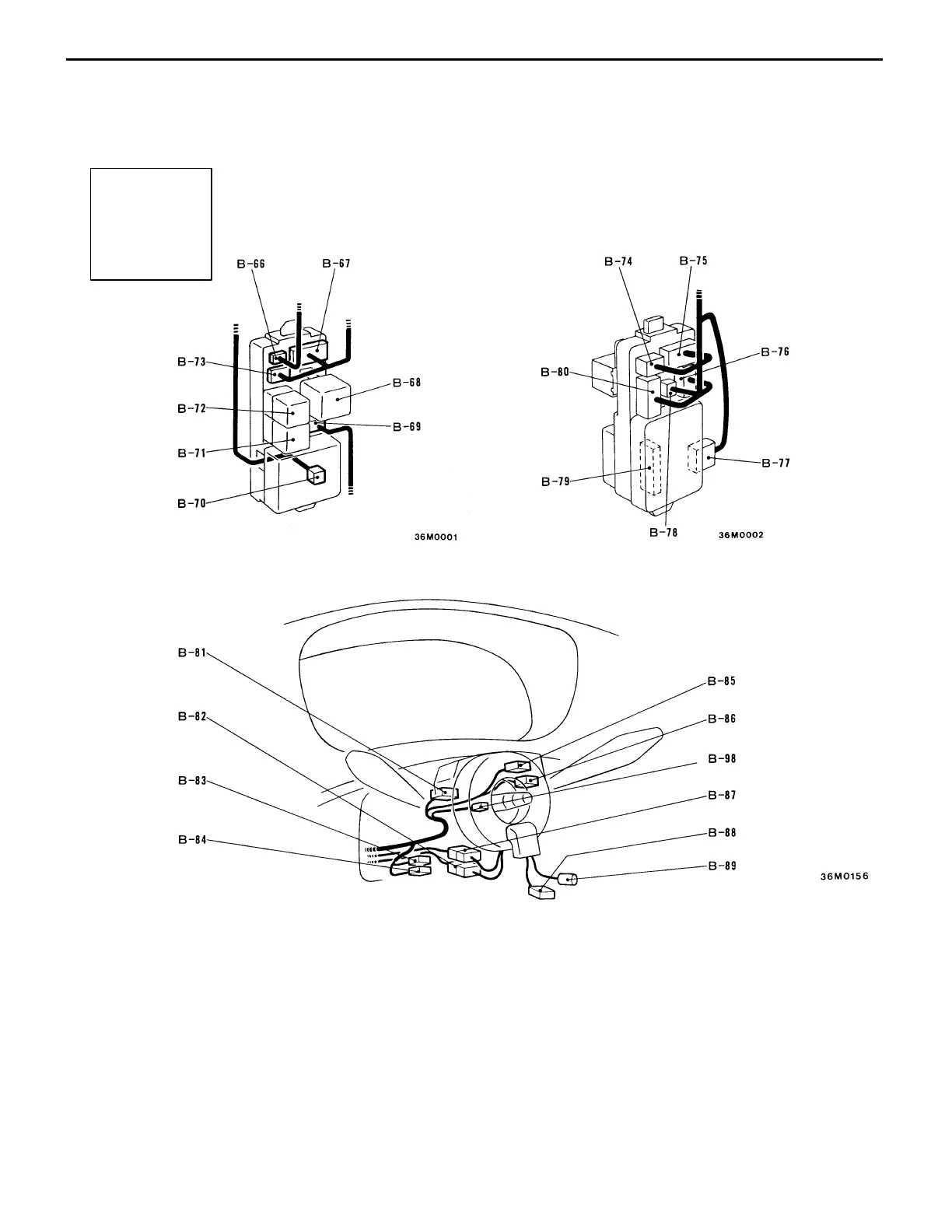

<Front view> <Rear view>
<Steering column>
<Junction block>
B-10
B-66 (2) Junction block and roof harness combination
B-67 (11) Junction block and front harness combination
B-68 (3) Turn signal / hazard flasher unit
B-69 (14) Junction block and instrument panel harness
combination
B-70 (4) Dedicated fuse (for sunroof circuit)
B-71 (5) Defogger relay
B-72 (5) Blower relay
B-73 (1) Junction block and front harness combination
B-74 (10) Junction block and body harness combination
B-75 (10-B) Junction block and body harness combination
B-76 (8) Junction block and body harness combination
B-77 (8) ETACS-ECU
B-78 (4) Junction block and body harness combination
B-79 (12) Junction block and ETACS-ECU combination,
or junction block and ECU combination
B-80 (13) Junction block and body harness combination
B-81 (12) Column switch
B-82 (2-R) Clock spring <vehicles with SRS air bag>
B-83 (6) Ignition switch
B-84 (5) Key reminder switch
B-85 (6) Column switch
B-86 (10) Column switch
B-87 (3) Clock spring (SRS) <vehicles with dual horn>
B-88 (2) Driver seat air bag module (squib)
B-89 (1) Horn switch <vehicles with SRS air bag>
B-98 (5) Steer sensor <vehicles with AYC>
