Mitsubishi LANCER EVOLUTION-V 1998

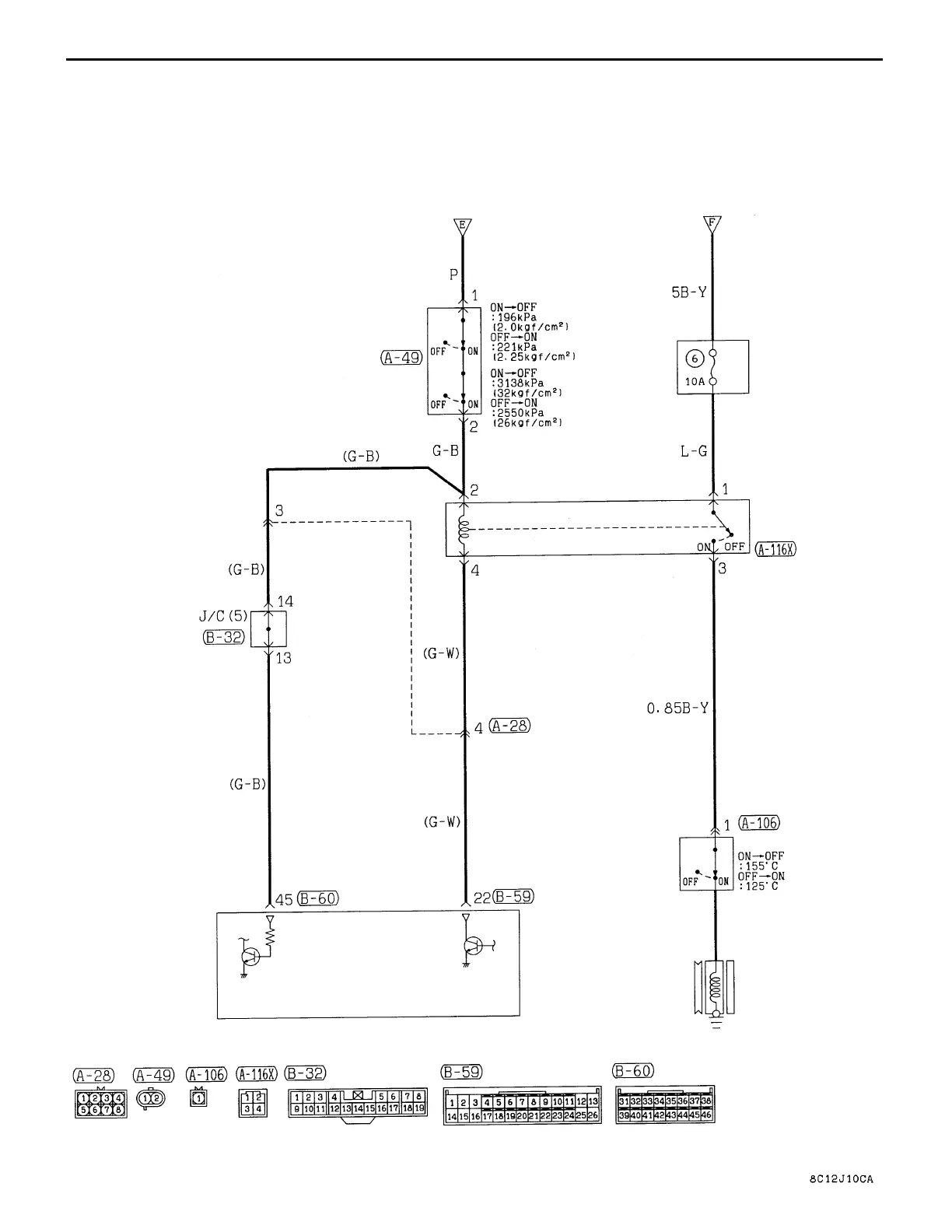

CIRCUIT DIAGRAM – Heater and Manual Air Conditioner
AUTOMATIC
COMPRESSOR
ECU
FUSIBLE LINK
DUAL
PRESSURE
SWITCH
DEDICATED
FUSE
A/C
COMPRESSOR
RELAY
ENGINE-ECU
REFRIGERANT
TEMPERATURE
SWITCH
A/C COMPRESSOR
AND MAGNETIC
CLUTCH
C-52
HEATER AND MANUAL AIR CONDITIONER (CONTINUED)
