– Floor, Roof, and Seat

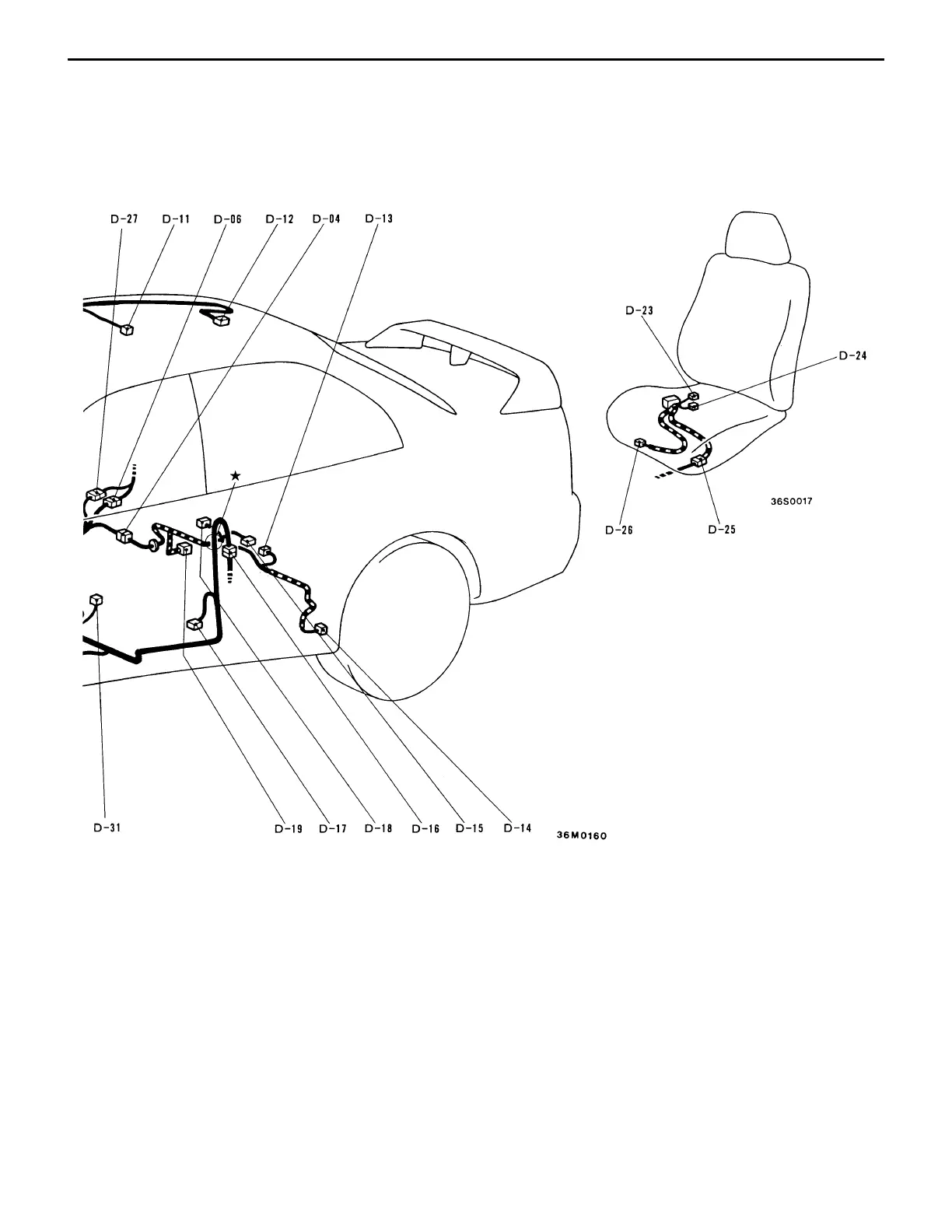

WIRING HARNESS
CONFIGURATION DIAGRAMS
<Power seat>
B-13
D-19 (2-B) Rear speed sensor (RH)
<vehicles with ABS>
D-20 (3-B) Acceleration sensor (longitudinal)
<vehicles with ABS or AYC>
D-21 (1-B) Parking brake switch
D-22 (2-B) High temperature sensor
D-23 Reclining motor
D-24 Slide limit switch
D-25 (2) Body harness and power seat harness
combination and power seat switch
D-26 Slide motor
D-27 (2) Body harness and rear harness combina-
tion <vehicles with AYC>
D-31 (2) Water spray switch
D-32 (3-B) Acceleration sensor (lateral)
<vehicles with AYC>
