Mitsubishi LANCER EVOLUTION-V 1998

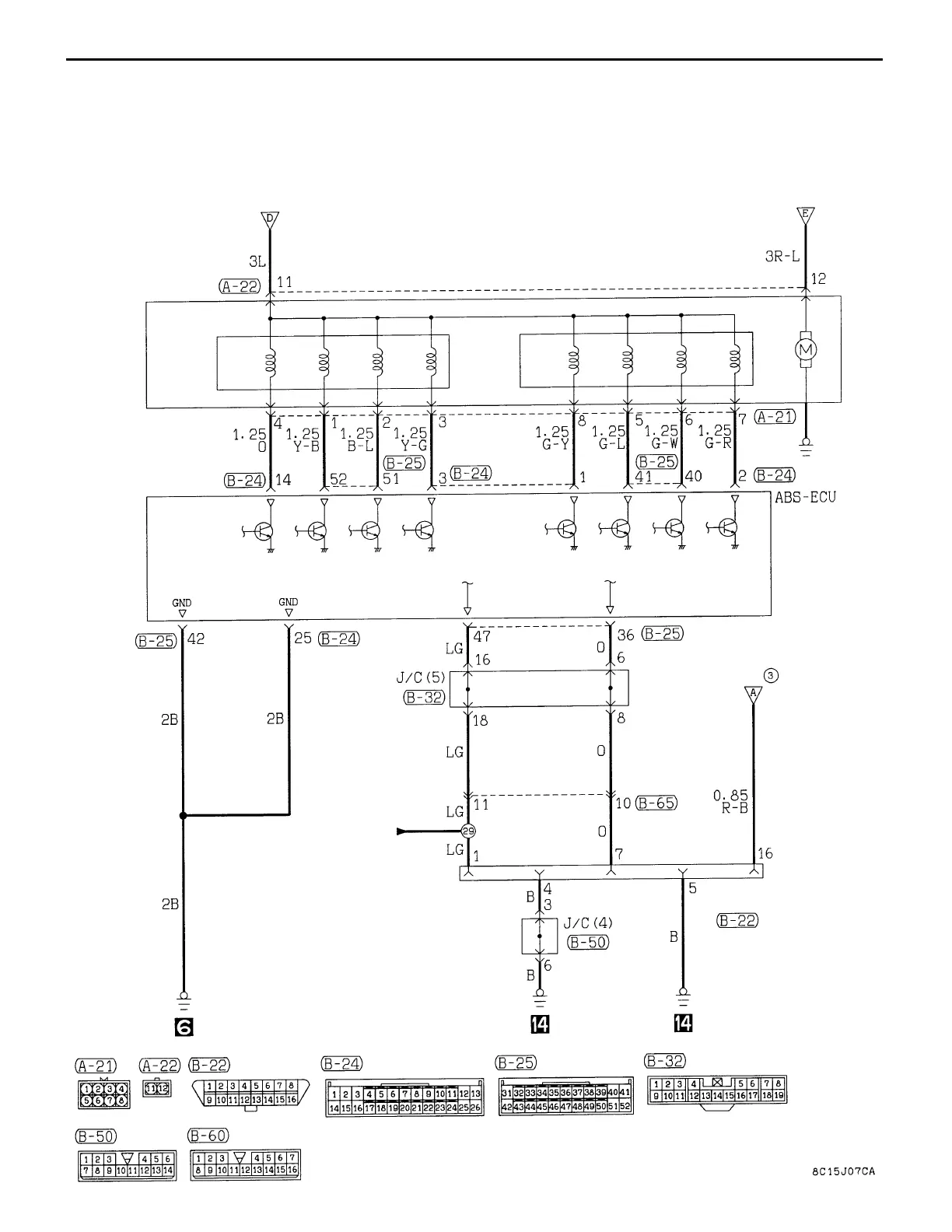

CIRCUIT DIAGRAM – Anti-lock Brake System (ABS)
VALVE
RELAY
MOTOR
RELAY
HYDRAULIC
UNIT
INLET
VALVE
FRONT
(LH)
FRONT
(RH)
REAR
(LH)
REAR
(RH)
OUTLET
VALVE
FRONT
(LH)
FRONT
(RH)
REAR
(LH)
REAR
(RH)
• CENTRAL DOOR
LOCKING SYSTEM
<VEHICLES WITH
KEYLESS ENTRY
SYSTEM>
• FULLY AUTOMATIC
AIR CONDITIONER
MULTI-PURPOSE
FUSE
DIAGNOSIS
CONNECTOR
FRONT VIEW
C-78
ANTI-LOCK BRAKE SYSTEM (ABS) (CONTINUED)
