ENGINE – Timing Belt
11-26

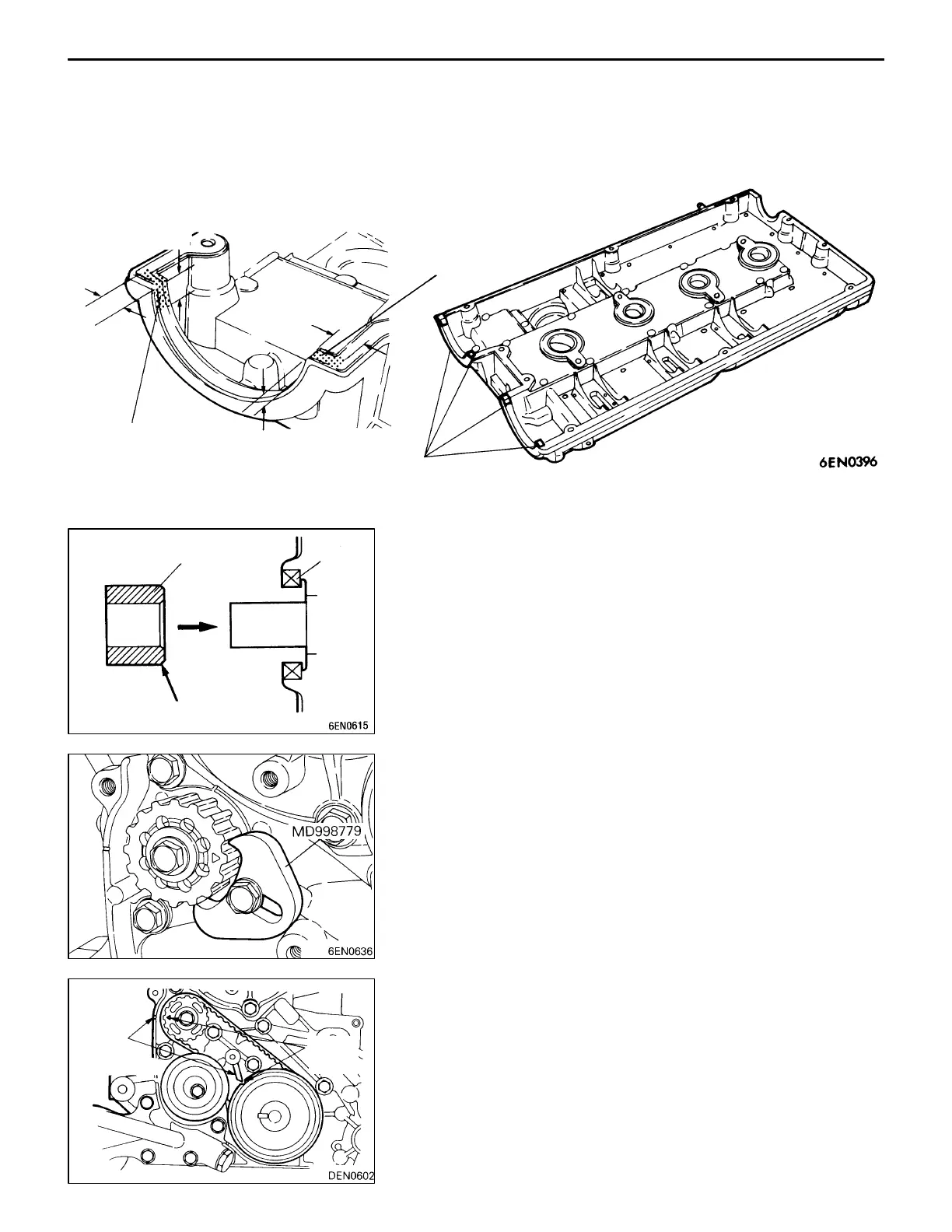

"DA SEALANT APPLICATION ON ROCKER COVER
Apply sealant to the areas indicated in the illustration.
Specified sealant: THREEBOND 1212D or equivalent
Apply sealant
10 mm
10 mm
10 mm
10 mm
Apply sealant
Apply sealant
"EA SPACER INSTALLATION
(1) Apply very thin coat of oil to the outer periphery of the
spacer (oil seal contacting surface).
(2) Install the spacer with the chamfered end toward the
oil seal. Mounting in the reverse direction can damage
the oil seal lip.
"FA COUNTERBALANCE SHAFT SPROCKET
INSTALLATION
"GA TIMING BELT “B” INSTALLATION
(1) Align timing marks on the crankshaft sprocket “B” and
counterbalance shaft sprocket with the marks on the front
case respectively.
(2) Install the timing belt “B” on the crankshaft sprocket “B”
and counterbalance shaft sprocket. There should be no
slack on the tension side.
Spacer
Oil seal
Chamfer
Timing
marks
Timing
marks
