ENGINE – Timing Belt
11-28

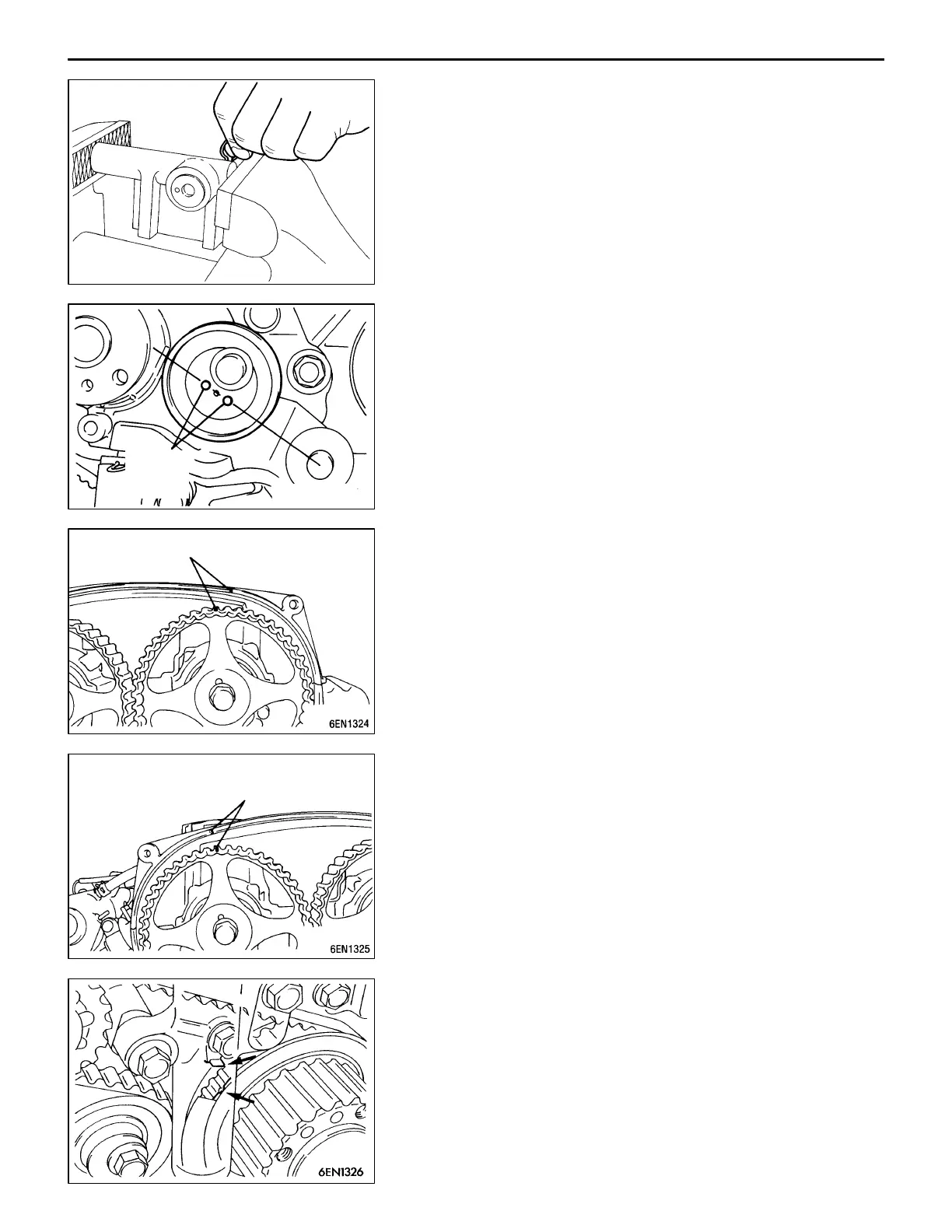

c. Insert a wire (1.4 mm in diameter) into the set holes.
d. Unclamp the auto tensioner from the vise.
(2) Install the auto tensioner. Leave the wire installed in the
auto tensioner until the timing belt is installed.
"KA TENSIONER PULLEY INSTALLATION
Install the tensioner pulley as shown in the illustration.
"LA TIMING BELT INSTALLATION
(1) Place the exhaust side camshaft sprocket in a position
where its timing mark is one tooth offset from the timing
mark on the rocker cover in the counterclockwise direction.
NOTE
Even if the timing marks on the sprocket and the rocker
cover are brought into alignment, the exhaust camshaft
is forced back by the valve spring tension. It is stabilized
at a position one tooth before the timing mark.
(2) Align the timing mark on the intake side camshaft sprocket
with that on the rocker cover.
NOTE
Even if the timing marks on the sprocket and the cover
are brought into alignment, the intake camshaft is forced
to turn one tooth in the clockwise direction by the valve
spring tension and stabilized there.
(3) Place the timing mark on the crankshaft sprocket one
tooth this side from the mated timing mark as in the case
of the camshaft sprocket.
6AE0050
6EN1323
Holes in
tensioner
pulley
Timing marks
Timing marks
To Next Page
