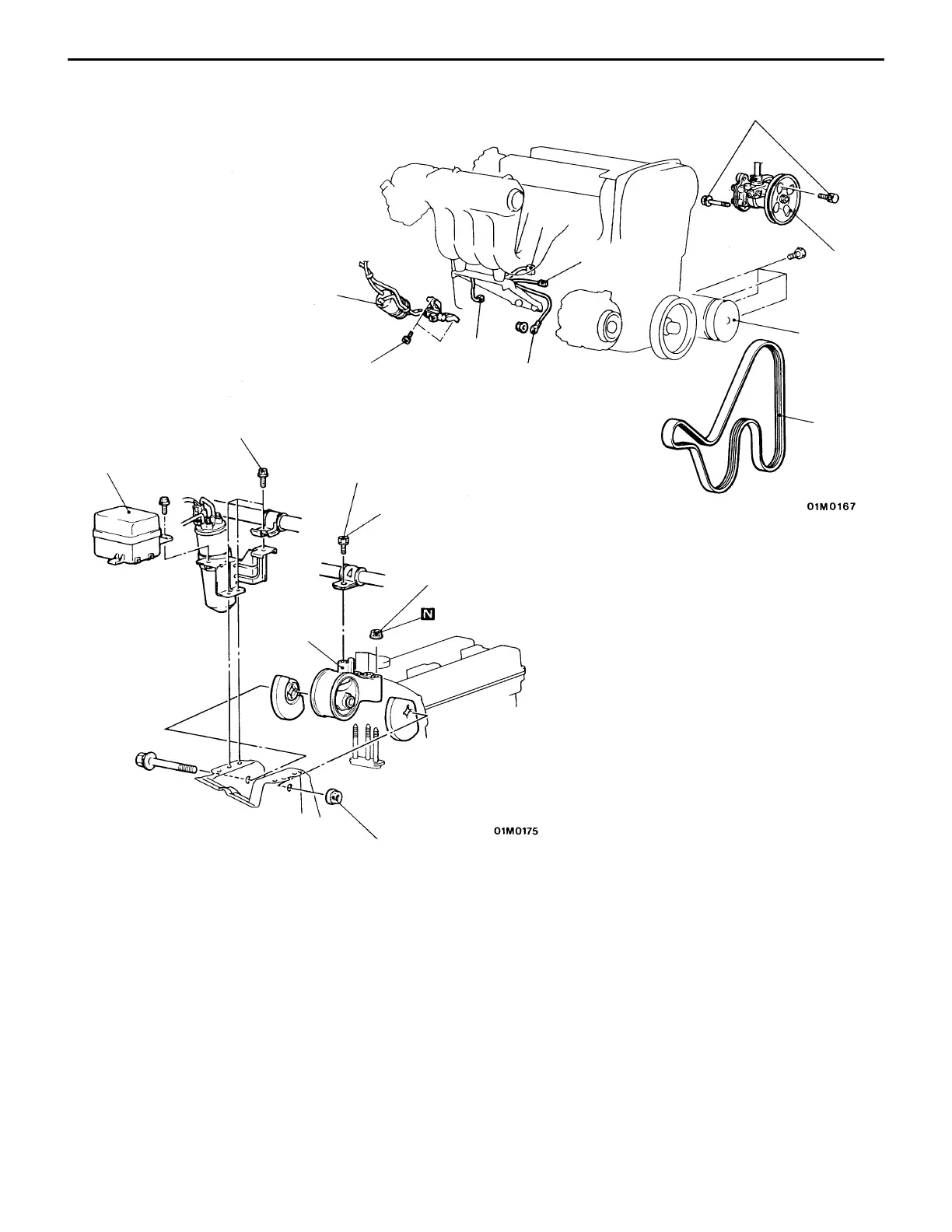

ENGINE – Engine Assembly
11-33
25
27
28
19
20
21
22
23
24
26
Unit: Nm {kgf@m}
98 {10.0}*
29
57 {5.8}
22
12 {1.2}
39 {4.0}
9 {0.9}
19. Solenoid valve connector
20. Vacuum tank/solenoid valve/vacuum
hose assembly
21. Oil pressure switch connector
22. Alternator connector
D Drive belt tension inspection
(Refer to P.11-4.)
AA" 23. Drive belt
AB" 24. A/C compressor
AC" 25. Power steering oil pump
D Transmission assembly
26. A/C relay box
27. A/C receiver bracket mounting bolt
28. Oil pressure hose mounting bolt
AC""BA 29. Engine mount bracket
AE""AA 30. Engine assembly
Caution
Mounting locations marked by * should be
provisionally tightened, and then fully tightened after
placing the vehicle horizontally and loading the full
weight of the engine on the vehicle body.
To Next Page
