MANUAL TRANSMISSION OVERHAUL – Output Shaft
22B-28
DISASSEMBLY SERVICE POINTS

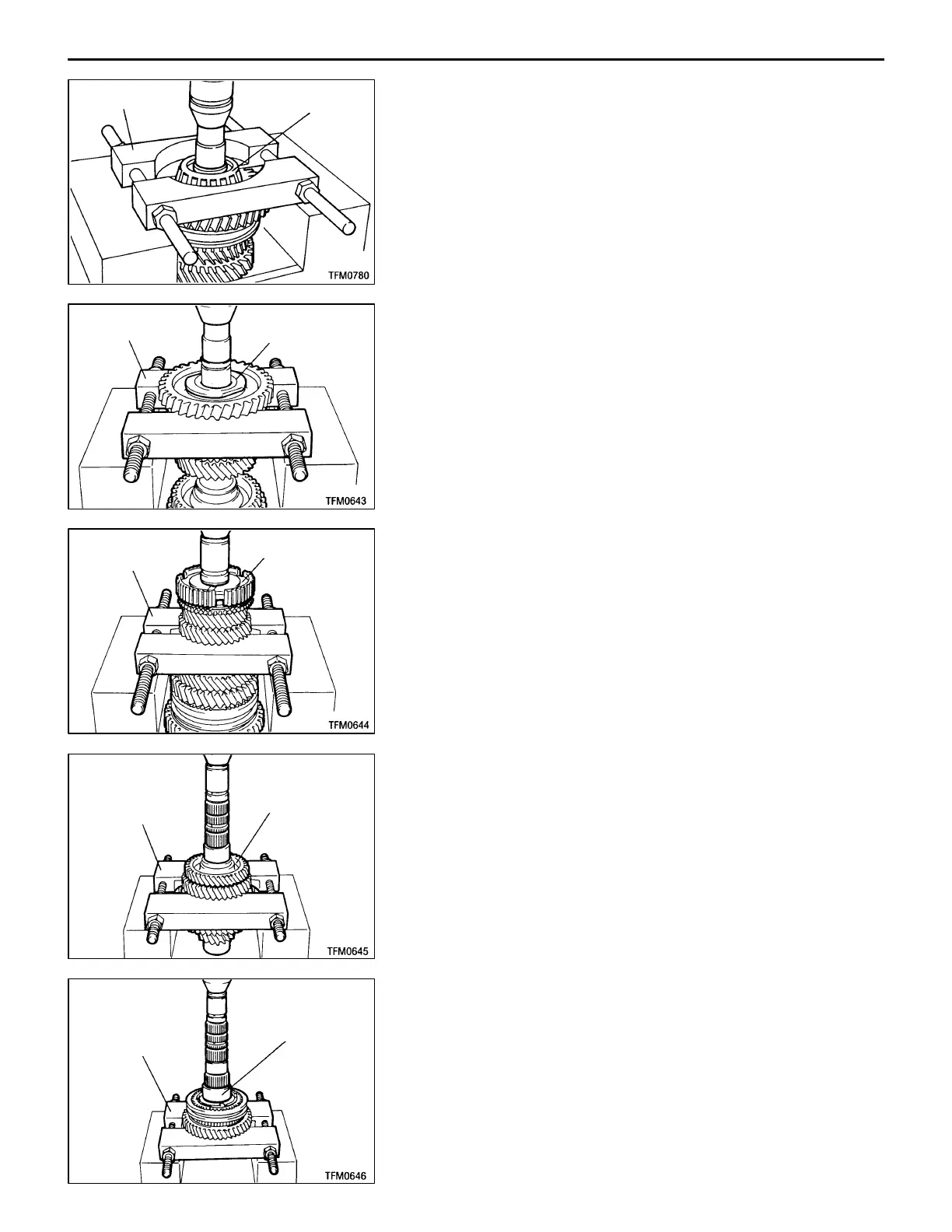

AA" TAPER ROLLER BEARING REMOVAL
AB" REVERSE GEAR BEARING SLEEVE REMOVAL
Mount a special tool on the reverse gear and remove the
reverse gear bearing sleeve.
AC" 5TH-REVERSE SPEED SYNCHRONIZER HUB
REMOVAL
Mount a special tool on the 4th speed gear and remove
the 5th-reverse speed synchronizer hub.
AD" 3RD SPEED GEAR REMOVAL
Mount a special tool on the 2nd speed gear and remove
the 3rd speed gear.
AE" 2ND SPEED GEAR SLEEVE REMOVAL
Mount a special tool on the 1st speed gear and remove the
2nd speed gear sleeve.
Taper roller bearing
MD998801
Reverse gear
bearing sleeve
MD998801
5th-reverse
speed
synchronizer
hub
MD998801
3rd speed gear
MD998917
2nd speed
gear sleeve
MD998917
