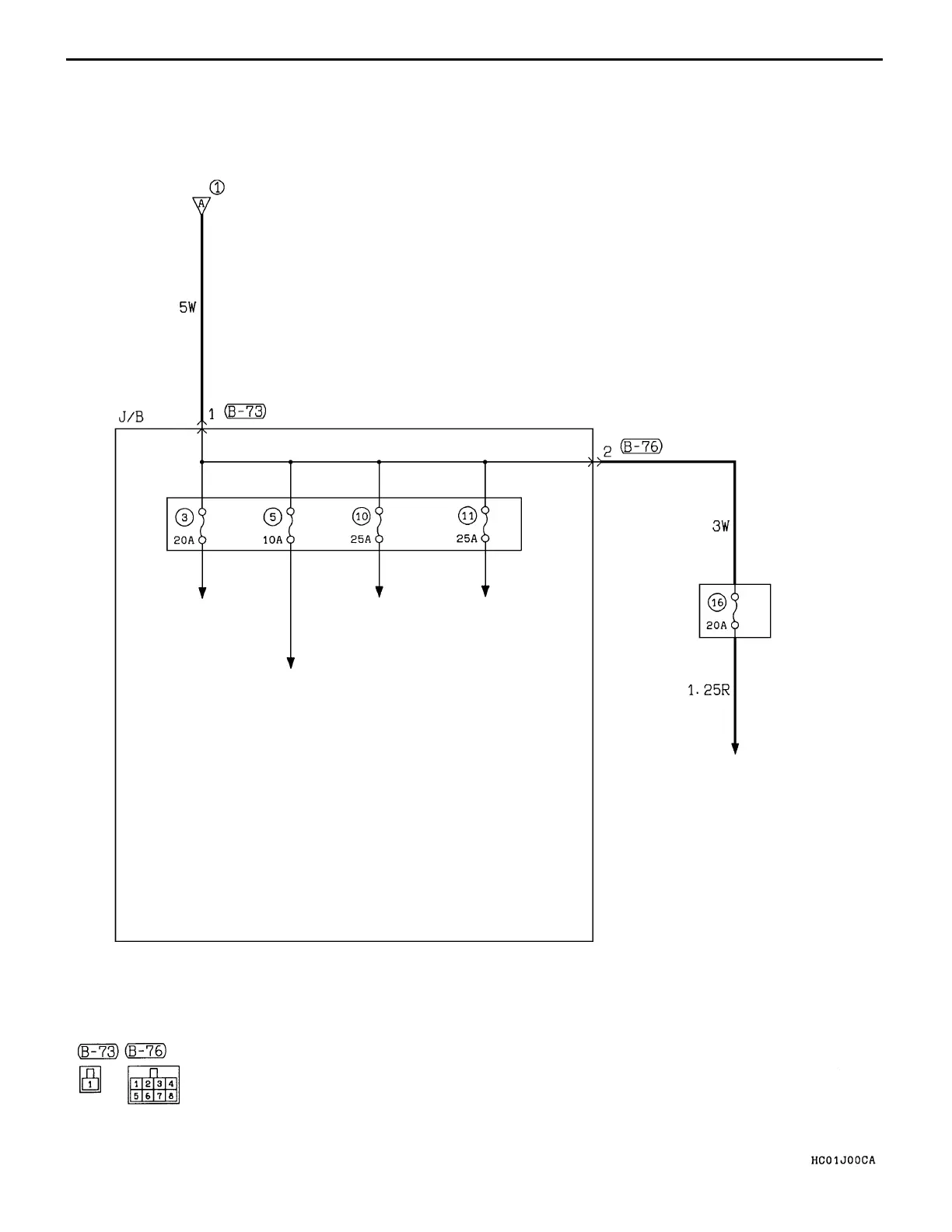

CIRCUIT DIAGRAM – Power Distribution System
FUSIBLE
LINK
MULTI-
PUR-
POSE
FUSE
CENTRAL DOOR
LOCKING SYSTEM
• HEATER
• HEATER AND MANUAL
AIR CONDITIONER
• FULLY AUTOMATIC AIR
CONDITIONER
DEFOGGER
AND DOOR
MIRROR
HEATER
• SRS AIR BAG
• ACTIVE YAW CONTROL SYSTEM
• ANTILOCK BRAKE SYSTEM
• IGNITION KEY CYLINDER ILLUMINATION LAMP
• IGNITION KEY REMINDER BUZZER
• ENGINE CONTROL SYSTEM
• CLOCK AND MULTI-DISPLAY
• METER AND GAUGE
• CENTRAL DOOR LOCKING SYSTEM
• TAIL LAMP, POSITION LAMP, LICENCE PLATE LAMP,
AND LIGHTING MONITOR BUZZER
• DEFOGGER AND DOOR MIRROR HEATER
• FULLY AUTOMATIC AIR CONDITIONER
• RADIO
• SPARE CONNECTOR FOR RADIO
• ROOM LAMP AND LUGGAGE COMPARTMENT LAMP
DEDICATED
FUSE
(INSTALLED
IN JUNCTION
BLOCK)
B-70
SUNROOF
B-30
POWER DISTRIBUTION SYSTEM (CONTINUED)
To Next Page
