MANUAL TRANSMISSION OVERHAUL – Clutch Housing
22B-42

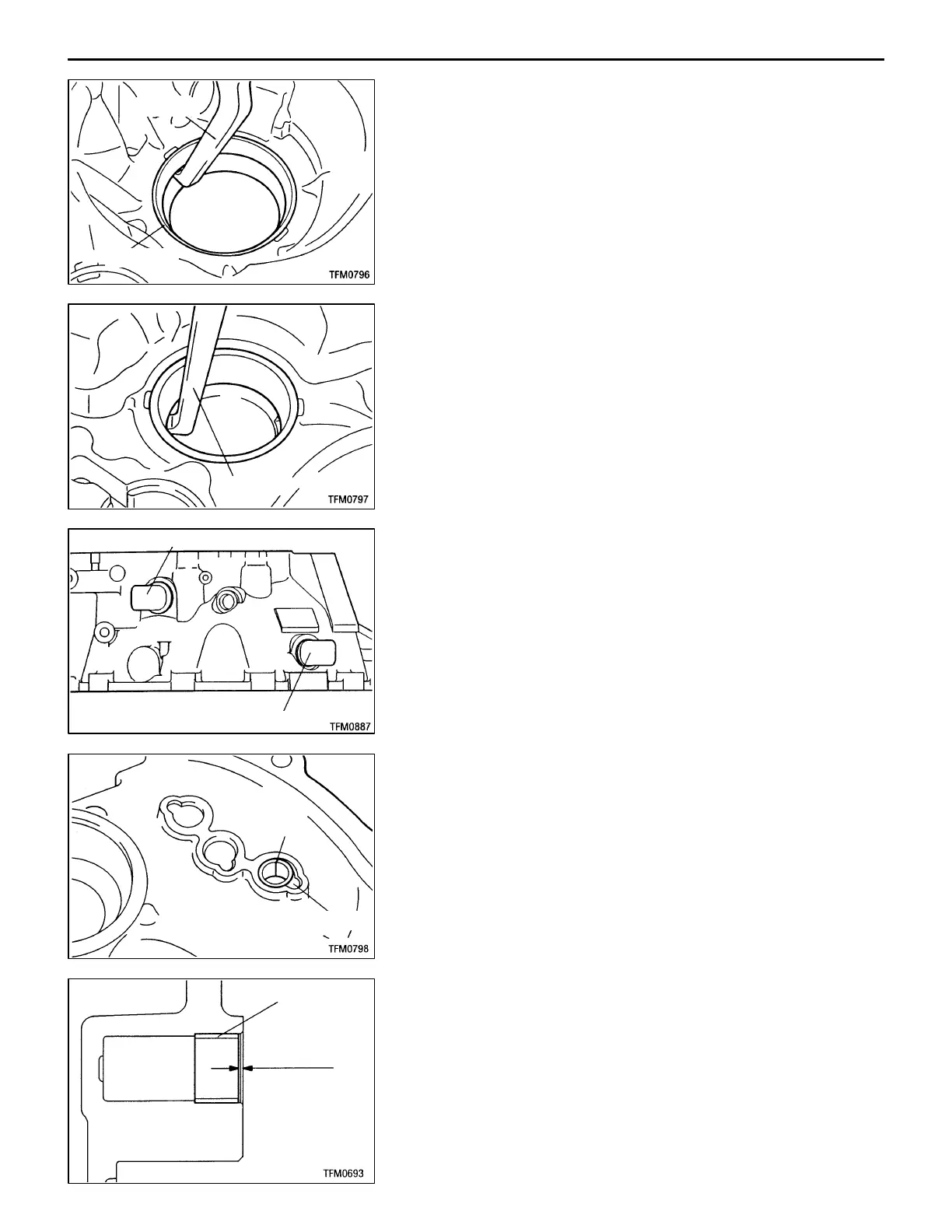

DISASSEMBLY SERVICE POINTS
AA" OUTER RACE REMOVAL
AB" OUTER RACE REMOVAL
REASSEMBLY SERVICE POINTS
"AA COVER-A / COVER-B INSTALLATION
Install the covers directed as shown in the illustration
"BA BUSHING INSTALLATION
Press fit the bushing to the illustrated position, while making
sure that the split ends of the bushing do not coincide with
the air purge groove.
Outer race
MD999566
MD999566
Cover-B
Cover-A
Bushing
Air purge groove
Bushing
1 mm
