REAR AXLE – Rear Hub Assembly
27-34
INSTALLATION SERVICE POINT

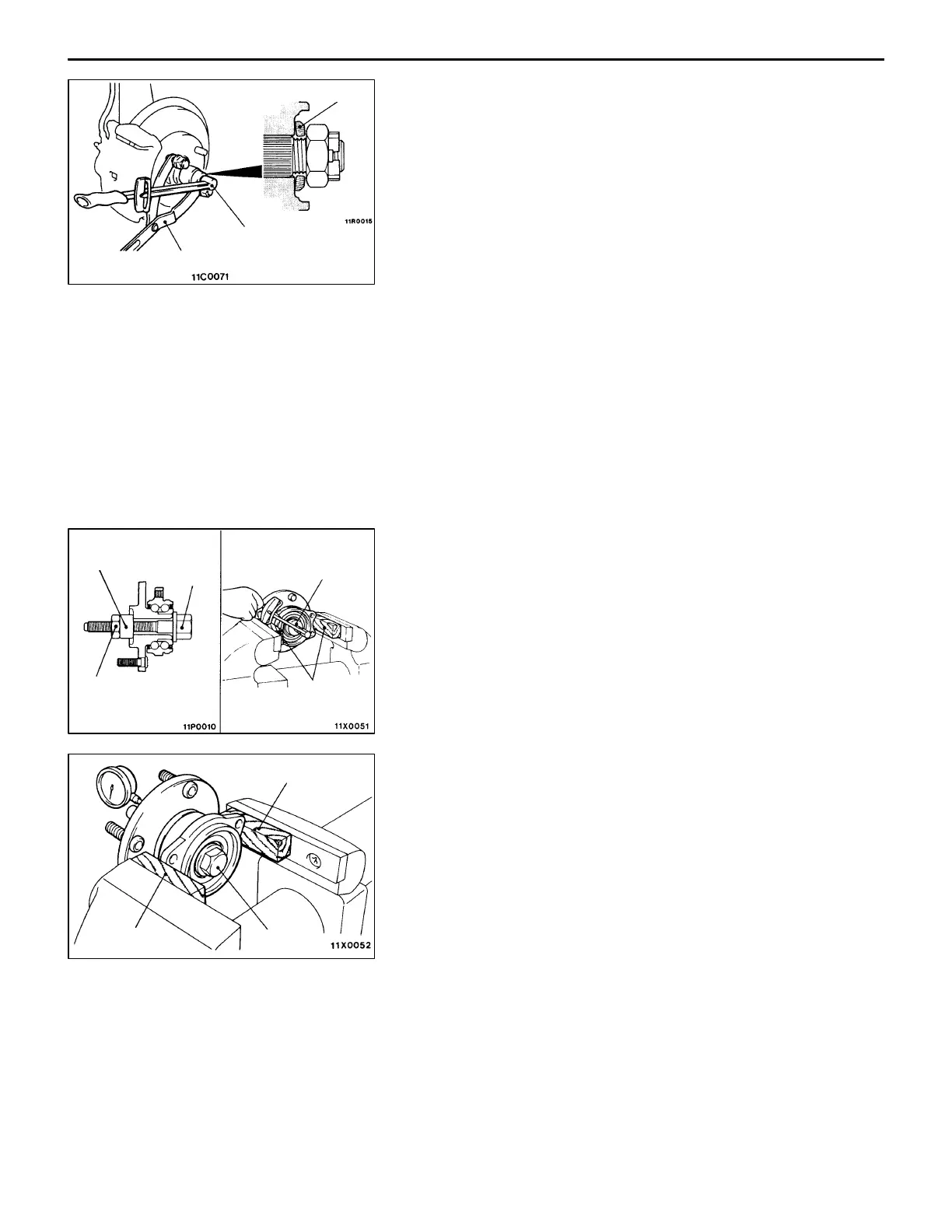

"AA DRIVE SHAFT NUT INSTALLATION
(1) Install the washer on the drive shaft in the direction shown
on the left.
(2) Using the special tool, tighten the drive shaft nut to the
specified torque.
Caution
Before torquing the drive shaft nut to specification,
do not apply vehicle weight to the wheel bearing.
(3) If, at this time, the split pin holes are not aligned, tighten
the nut further (within 255 Nm {26.0 kgf@m}), insert the
split pin in the first matching holes, and bend it securely.
INSPECTION
1. REAR WHEEL BEARING ROTATION STARTING
TORQUE
(1) Install the special tool to the rear hub assembly and tighten
it to the specified torque.
(2) Using the special tool, measure the wheel bearing rotation
starting torque.
Limit: 1.0 Nm {10.5 kgf@cm}
(3) The wheel bearing starting torque should be within the
limit and the hub should be free of binding or rough motion
when turned.
2. WHEEL BEARING AXIAL PLAY CHECK
(1) Check the wheel bearing for axial play.
Limit: 0.05 mm
(2) If the specified torquing range (196 to 255 Nm {20.0
to 26.0 kgf@m}) does not bring the wheel bearing axial
play into the limit, replace the rear hub assembly.
Washer
MB990767
196 – 255 Nm
{20.0 – 26.0 kfg@m}
MB990326
MB991000
(MB990998)
Wood block
196 – 255 Nm
{20.0 – 26.0 kfg@m}
MB991017
Wood block
Wood block
MB991017
To Next Page
