Mitsubishi LANCER EVOLUTION-V 1998 User Manual

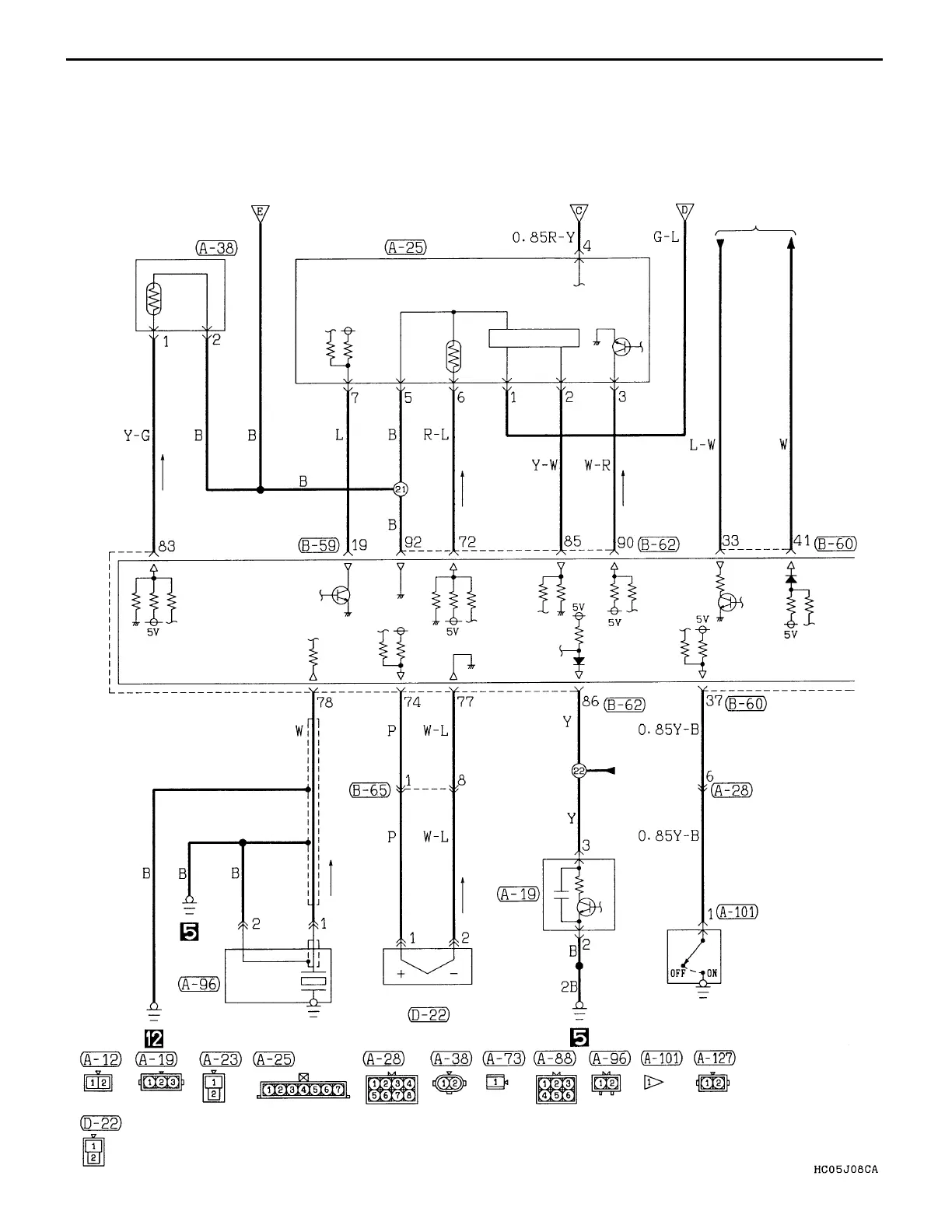

CIRCUIT DIAGRAM – Engine Control System
THROTTLE POSITION
SENSOR
IDLE SPEED
CONTROL SERVO
ENGINE-ECU
ENGINE COOLANT
TEMPERATURE
SENSOR
AIR FLOW
SENSOR
INTAKE AIR
TEMPERATURE SENSOR
BAROMETRIC PRES-
SURE SENSOR
ENGINE-ECU
• METER
AND
GAUGE
• RADIO
KNOCK
SENSOR
VEHICLE
SPEED
SENSOR
POWER STEERING OIL
PRESSURE SWITCH
HIGH TEMPERATURE SENSOR
CHARGING
SYSTEM
B-38
ENGINE CONTROL SYSTEM (CONTINUED)
