FRONT SUSPENSION – Lower Arm <EVOLUTION-IV>
33A-6
INSTALLATION SERVICE POINT
"AA BUSHING ASSEMBLY INSTALLATION

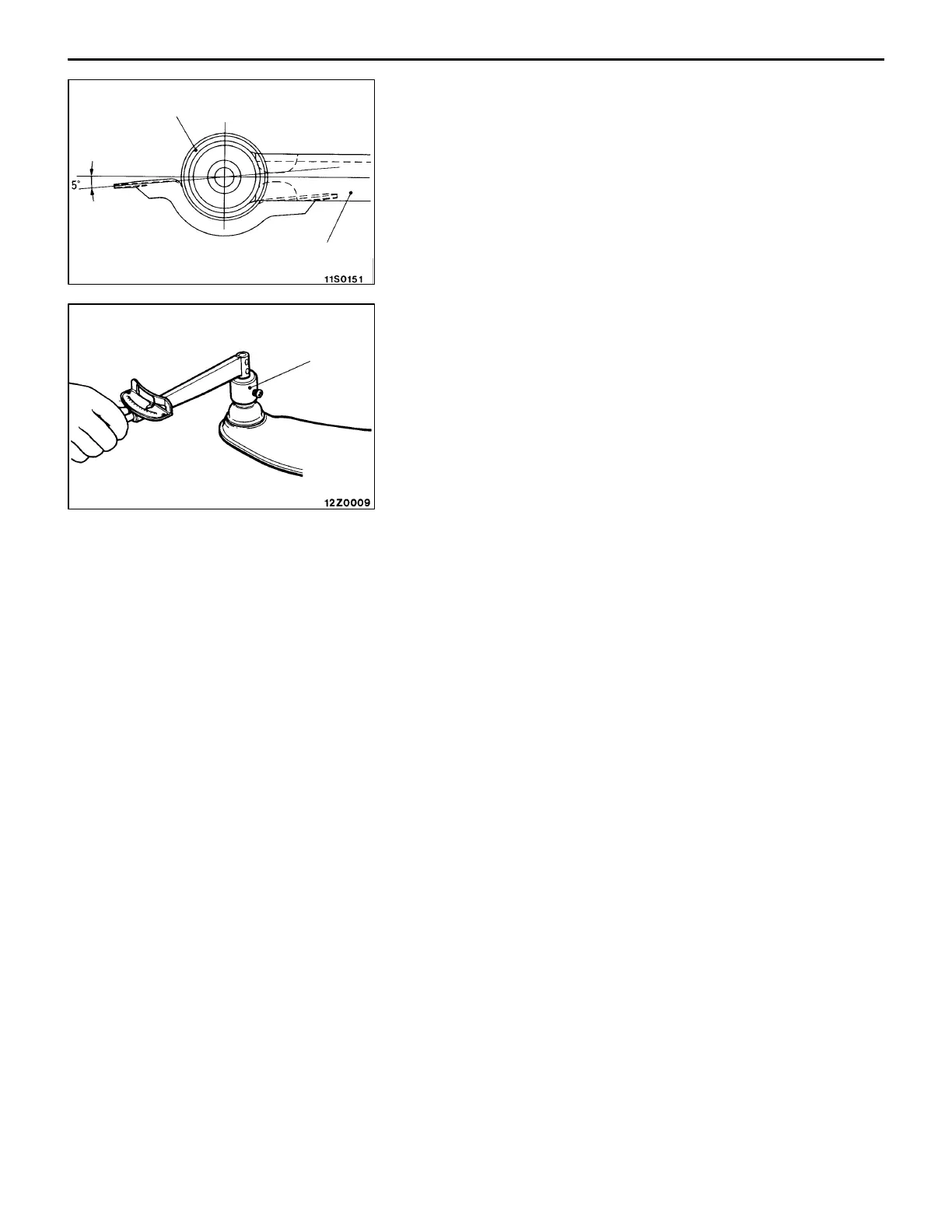

Install the bushing assembly to the lower arm assembly with
a relative angle as shown and tighten the self-locking nut
to the specified torque.
Tightening torque: 137 Nm {14.0 kgf@m}
INSPECTION
BALL JOINT ROTATION STARTING TORQUE
Use the conventional procedures except the special tool used
and the standard value as given below.
Standard value: 2.0 – 8.8 Nm {20 – 90 kgf@cm}
LOWER ARM BALL JOINT DUST COVER
REPLACEMENT
Replace the dust cover by using the conventional procedure
only if it has been inadvertently damaged during servicing.
After the dust cover has been replaced with a new one, push
it with a finger to check for possible cracks or damage.
