FRONT SUSPENSION – Lower Arm <EVOLUTION-V>
33A-8
INSTALLATION SERVICE POINTS
"AA BUSHING ASSEMBLY INSTALLATION
Follow the conventional procedure.
"BA LOWER ARM TO KNUCKLE COUPLING BOLT
INSTALLATION
(1) Install the lower arm assembly to the knuckle.

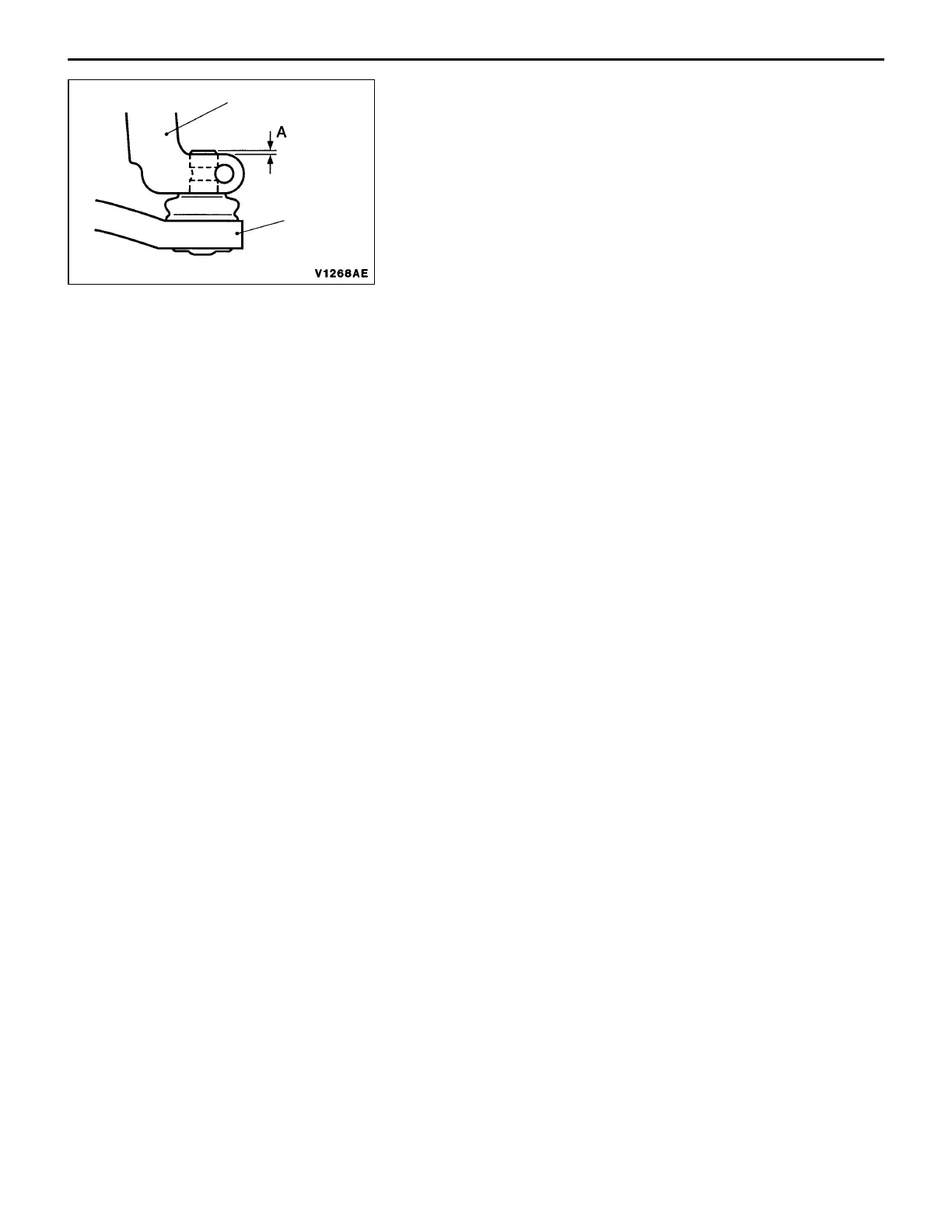

Caution
To prevent the dust cover lip from being recessed
and grease from flowing out, ensure that protrusion
A of the ball joint stud from knuckle measures 4 mm
or less during installation of the lower arm assembly.
(2) Should the knuckle be pushed in excessively and grease
flow out from the dust cover, replace the dust cover with
a new one.
(3) Check that there is no clearance between the knuckle
and dust cover.
INSPECTION
BALL JOINT ROTATION STARTING TORQUE
Use the conventional procedures.
LOWER ARM BALL JOINT DUST COVER
REPLACEMENT
Replace the dust cover by using the conventional procedure
if it has been inadvertently damaged or grease flown out
during servicing.
After the dust cover has been replaced with a new one, push
it with a finger to check for possible cracks or damage.
Knuckle
Lower arm
assembly
