REAR SUSPENSION – Rear Suspension Assembly
34-5
REMOVAL SERVICE POINTS
AA" BRAKE CALIPER ASSEMBLY REMOVAL
Remove the brake caliper assembly and secure it with a
wire.
AB" PROPELLER SHAFT DISCONNECTION
(1) Make an alignment mark on the differential carrier
companion flange and propeller shaft flange yoke.
(2) Remove the mounting bolts and nuts of the differential
carrier and propeller shaft.
AC" CROSSMEMBER MOUNTING BOLT REMOVAL
Support the differential case with a garage jack or transmission
jack and then remove the crossmember mounting bolt.
INSTALLATION SERVICE POINTS
"AA CROSSMEMBER MOUNTING BOLT
INSTALLATION

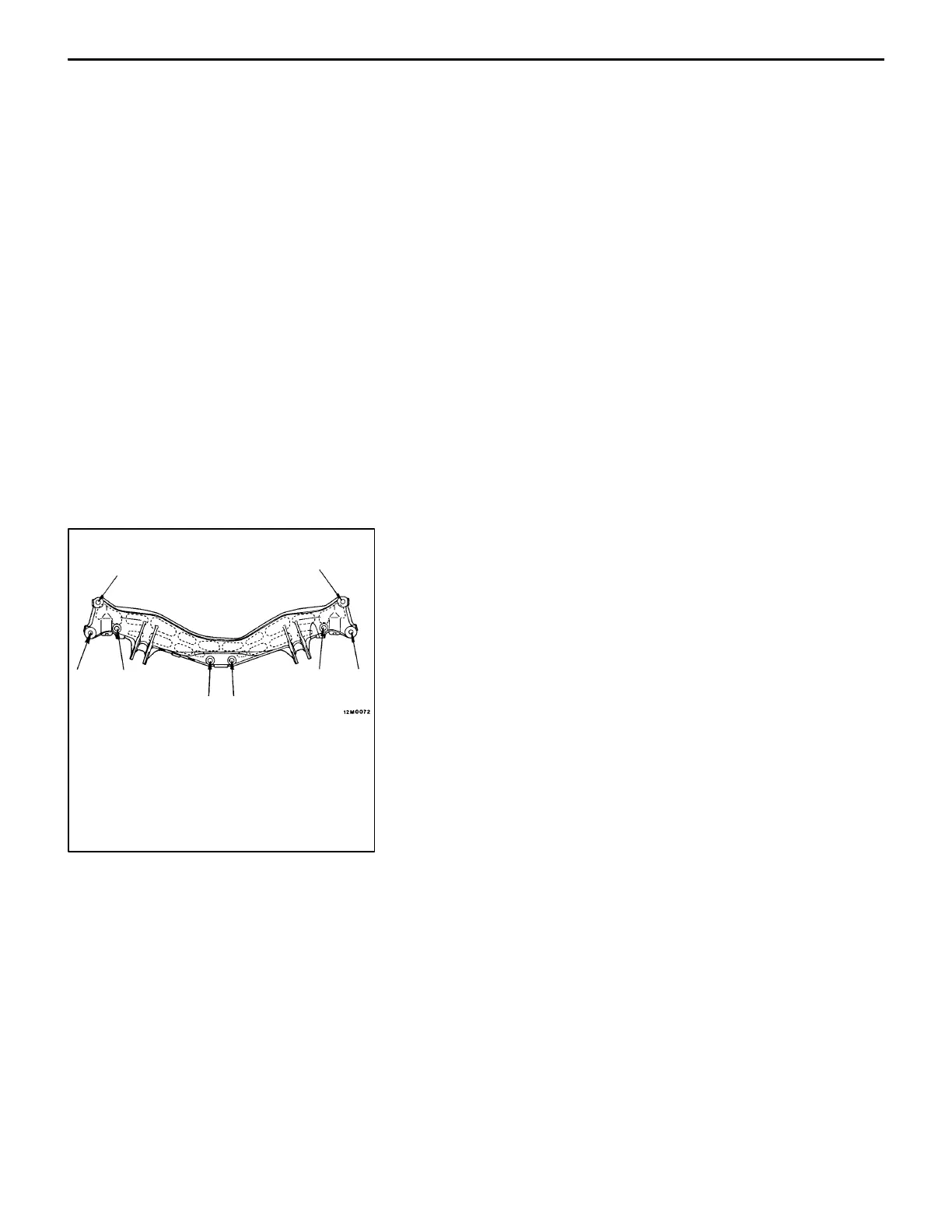

Tighten the mounting bolts in the numerical order shown.
NOTE
To ensure both good installation accuracy and ease of
installation, the crossmember mounting holes have different
diameters between front and rear. This is the reason for
specifying the tightening sequence of the mounting bolts.
"BA PROPELLER SHAFT CONNECTION
Align the alignment mark on the differential carrier with that
of the propeller shaft at installation.
Caution
Oil or grease on the threads of the mounting bolt or nut
can allow the bolt or nut to come loose. Be sure to
degrease the threads before installation.
Bolt size (thread dia. × length mm)
1 to 3: Flange bolt (with washer) 12 × 70
4: Flange bolt (with washer) 12 × 152
5: Bolt (with spring washer + washer) 12 × 105
Front of vehicle
1
3
3
4
4
2
55
To Next Page
