STEERING – Power Steering Oil Pump
37A-8
<EVOLUTION-V>

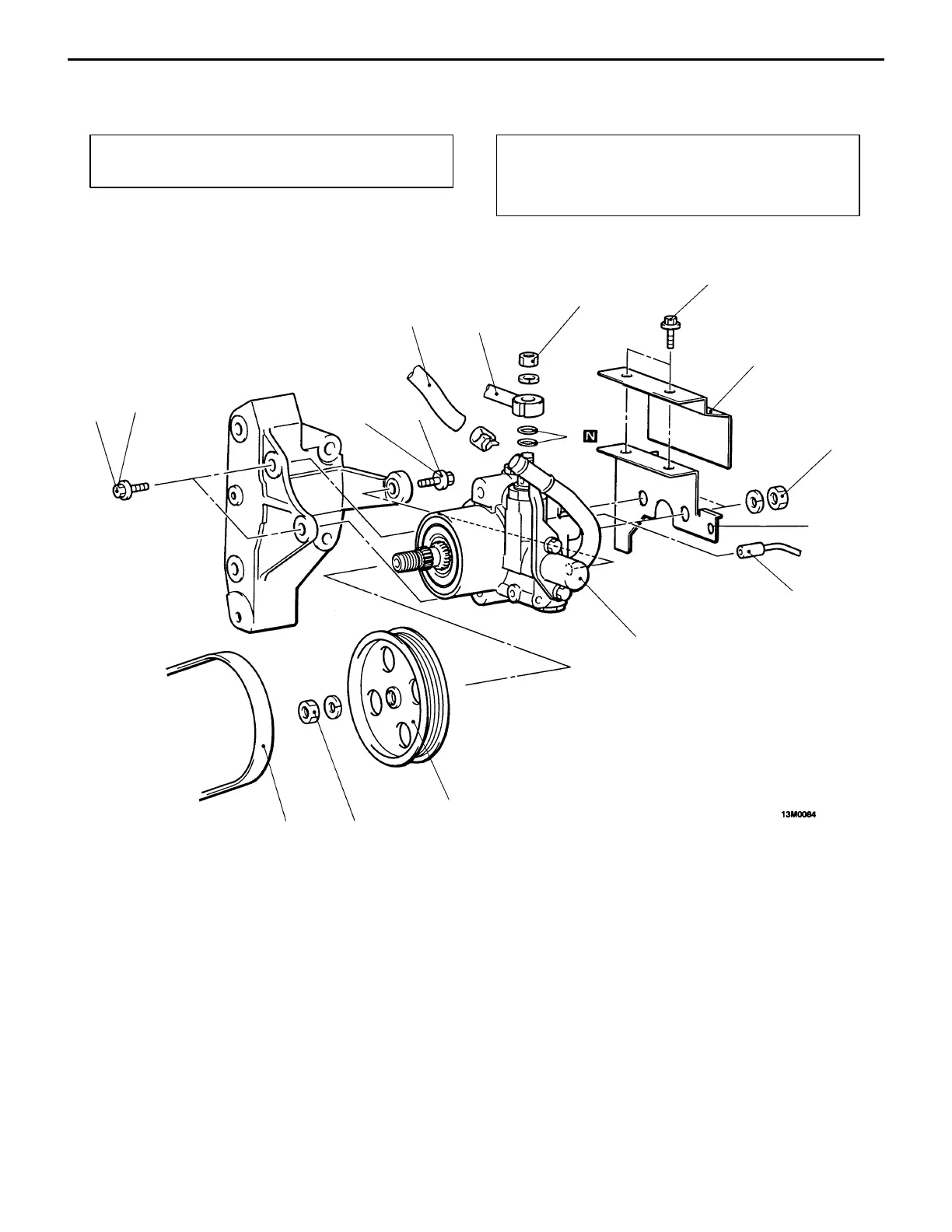

REMOVAL AND INSTALLATION
Pre-removal Operation
D Power Steering Fluid Draining
Post-installation Operation
(1) Power Steering Fluid Supplying
(2) Drive Belt Tension Adjusting
(3) Power Steering Fluid Line Bleeding
1
2
3
4
5
6
7
8
9
10
Unit: Nm {kgf@m}
22 {2.2}
11
22 {2.2}
52 {5.3}
24 {2.4}
12 {1.2}
18 {1.8}
Removal steps
1. Drive belt
2. Suction hose
3. Pully
4. Pressure hose
5. O-ring
6. Heat protector A
7. Heat protector B
8. Pressure switch connector
9. Bolt
10. Bolt
11. Oil pump assembly
To Next Page
