Mitsubishi LANCER EVOLUTION-V 1998

BODY –
Body Dimension
42-12
9, 106 7, 8
2
21
4
31
indicates that the dimension and the measurement point are the same as those for EVOLUTION-IV.
7
8
10
9

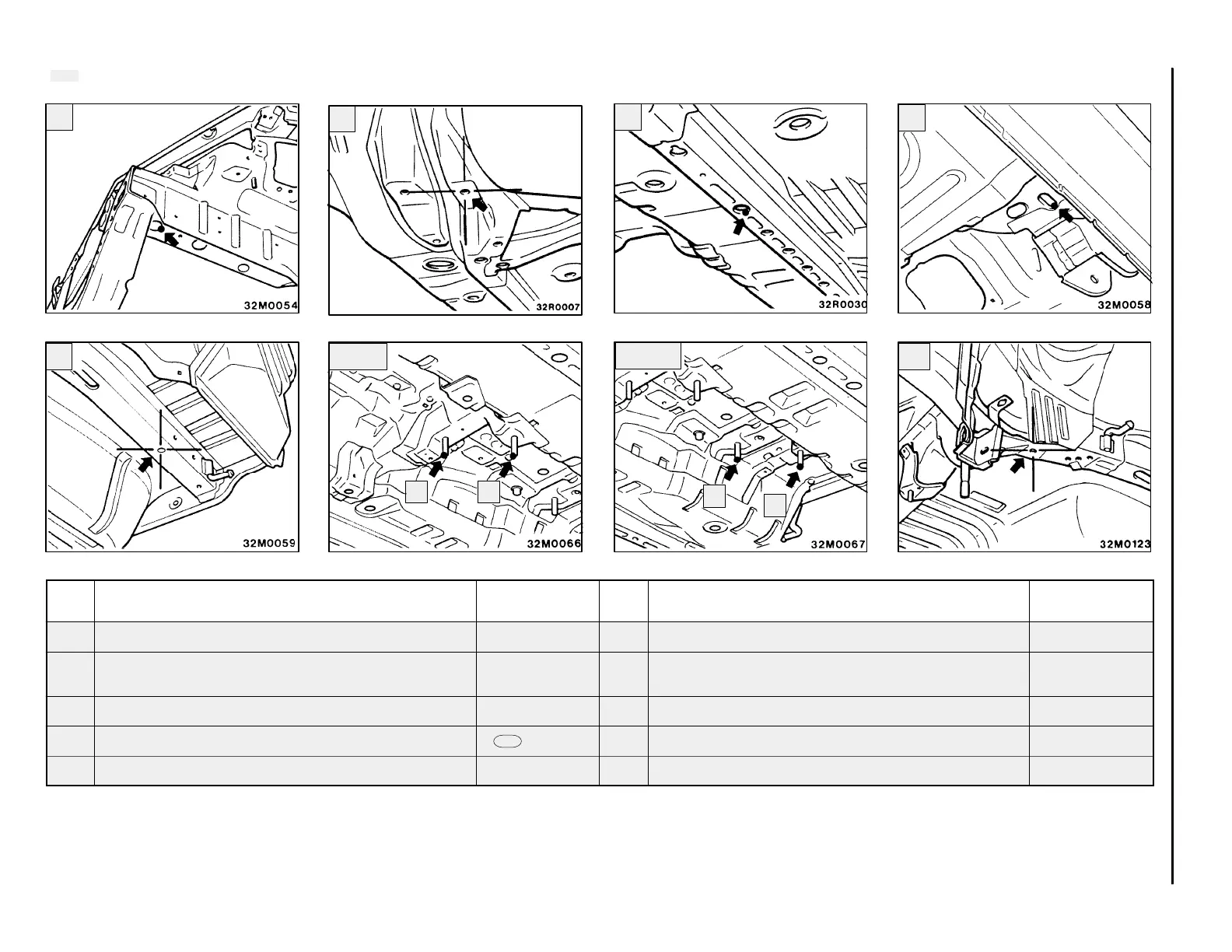

No. Standard measurement point Hole _ Size
shape mm
No. Standard measurement point Hole _ Size
shape mm
1
Rear portion of front bumper stay mounting hole f – 30
7
Center bearing mounting bolt end –
2
Center of suspension crossmember mounting hole Left: f – 14
Right: f – 16
8
Center bearing mounting bolt end –
3
Rear portion of front floor sidemember positioning hole f – 25
9
Center bearing mounting bolt end –
4
Rear portion of rear seat crossmember positioning hole
– 22 × 38
10
Center bearing mounting bolt end –
6
Center of rear floor sidemember extension drain hole f – 20
21
Center of suspension crossmember mounting hole f – 14
