EXTERIOR – Front Bumper <EVOLUTION-V>
51-5
DISASSEMBLY AND REASSEMBLY
1
3
4
6
7
2
9
10
11
12
13
14
15
16
17
Unit: Nm {kgf@m}
2.5 {0.25}
2.5 {0.25}
9
8
6
5
4
4
18

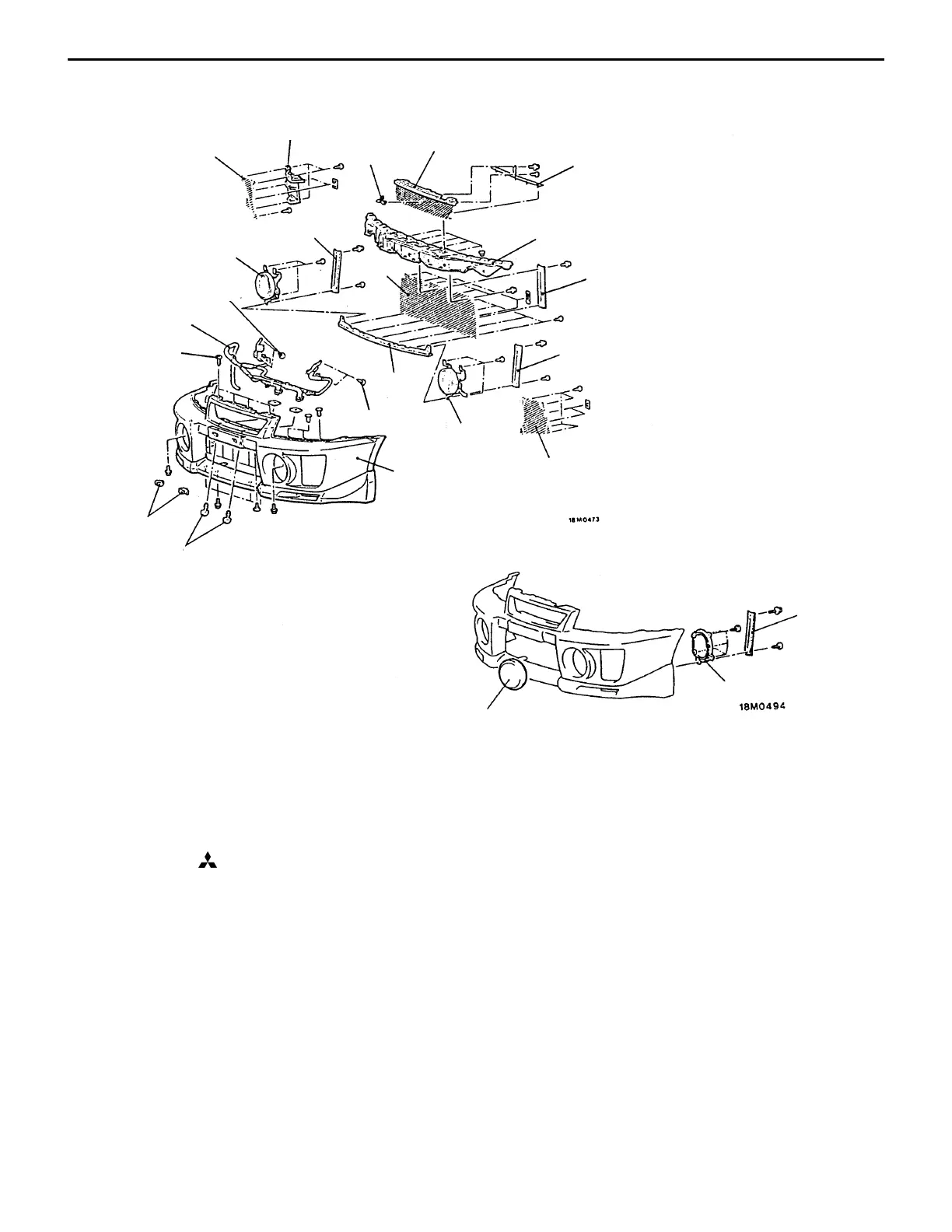

Disassembly steps
D Front air dam (Refer to P.51-9.)
D Brake duct (Refer to P.51-9.)
1. License plate bracket
2. mark
3. Bumper center stay
4. Bumper center stay
<vehicles without fog lamps>
5. Air guide panel (on driver’s seat
side)
6. Bumper net (side)
7. Fog lamp plate
<vehicles without fog lamps>
8. Fog lamp cover
<vehicles without fog lamps>
9. Fog lamp
10. Bumper bolt plate
AA" 11. Clip
12. Bumper upper reinforcement
assembly
13. Bumper lower reinforcement
14. Bumper reinforcement
15. Bumper center net
16. Water spray hose assembly
17. Water spray nozzle
18. Bumper face
