Mitsubishi LANCER EVOLUTION-V 1998

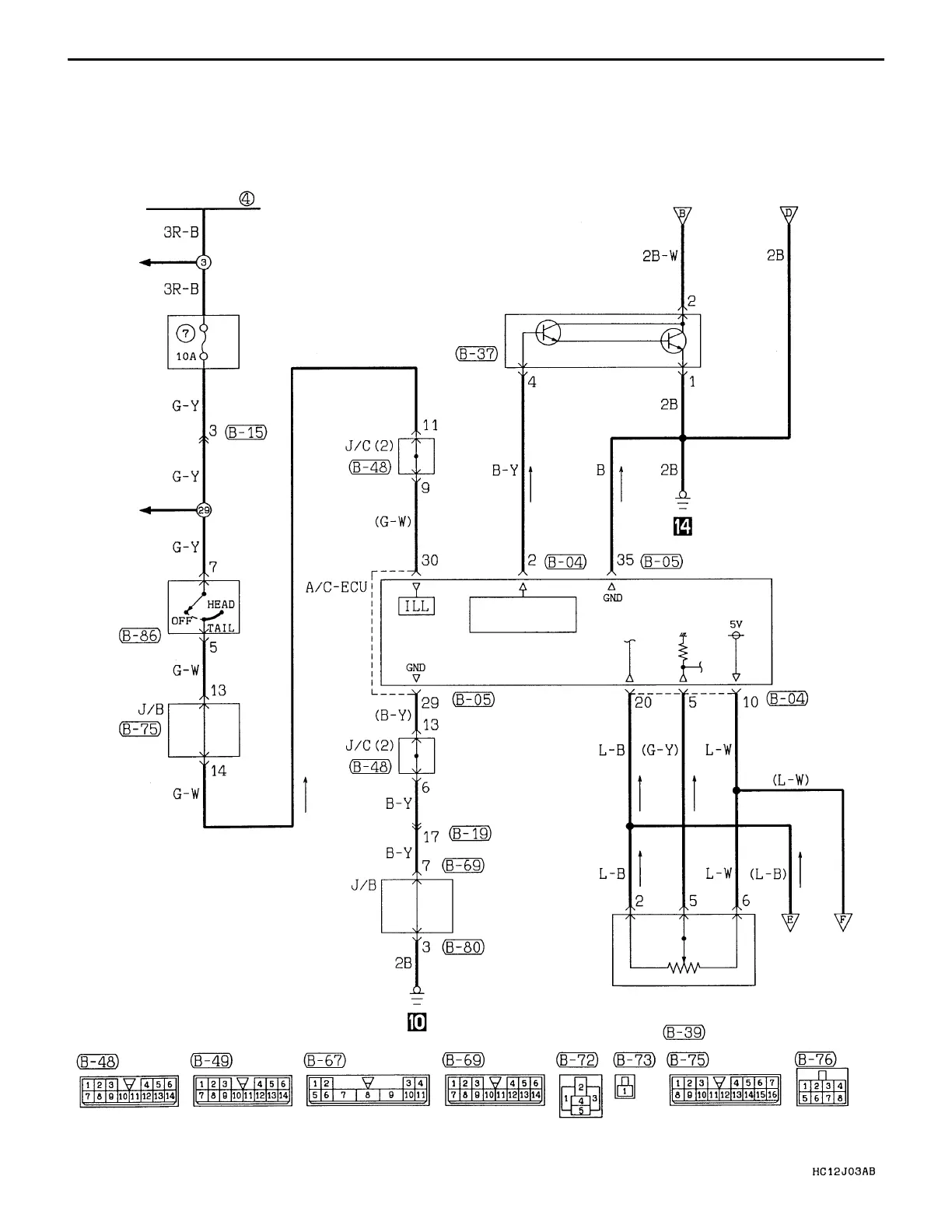

CIRCUIT DIAGRAM – Fully Automatic Air Conditioner
FUSIBLE LINK
• CHARGING
SYSTEM
• POWER
SUPPLY
• HEADLAMP
DEDICATED
FUSE
POWER
TRANSISTOR
BLOWER
MOTOR
BLOWER HIGH
SPEED RELAY
FOG
LAMP
COLUMN
SWITCH
(LIGHTING
SWITCH)
POWER TRAN-
SISTOR DRIVE
CIRCUIT
AIR MIX DAMPER
POTENTIOMETER
B-65
