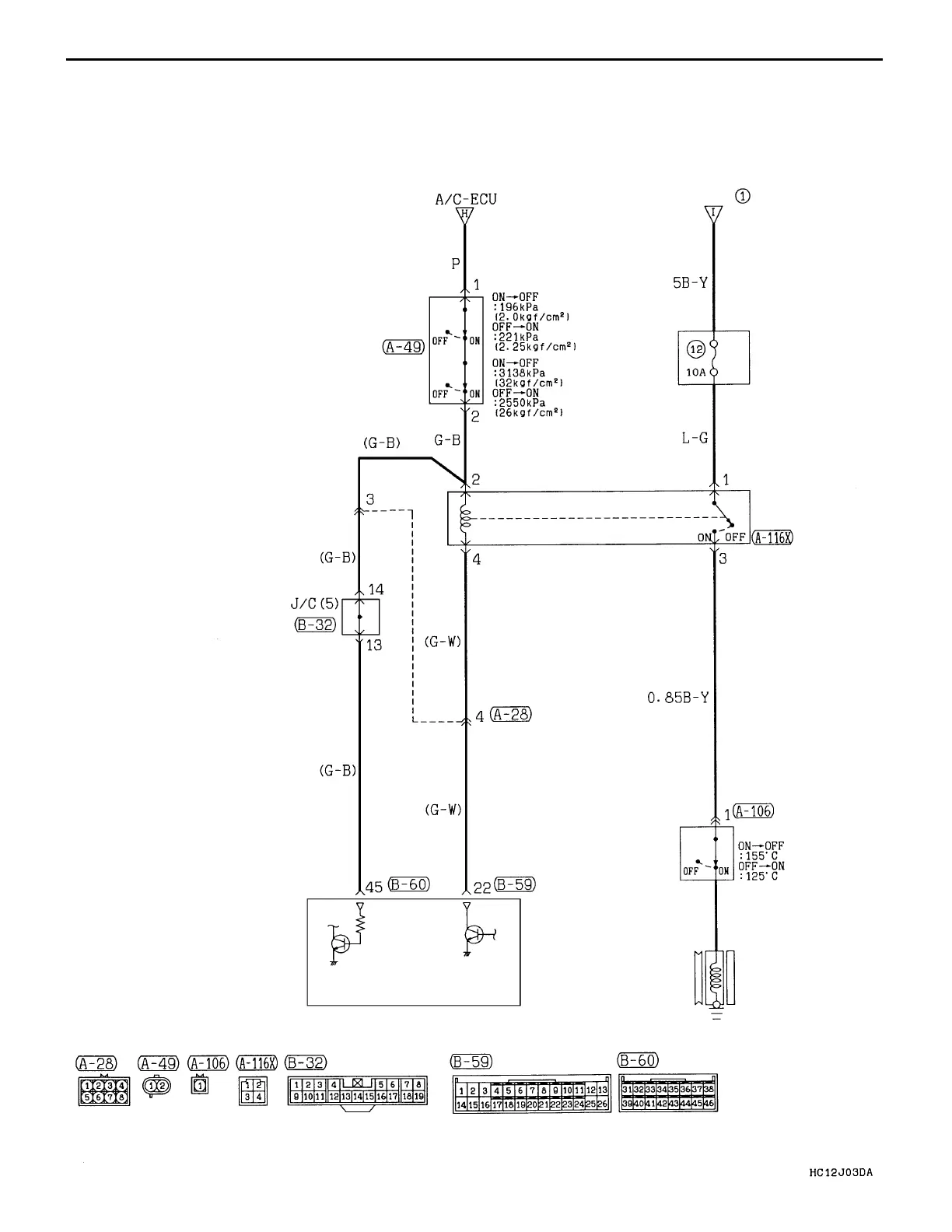

CIRCUIT DIAGRAM – Fully Automatic Air Conditioner
DUAL
PRESSURE
SWITCH
DEDICATED
FUSE
DEDICATED
FUSE
A/C COMPRESSOR
RELAY
REFRIGERANT
TEMPERATURE SWITCH
A/C COMPRESSOR
AND MAGNETIC
CLUTCH
ENGINE-ECU
B-70
FULLY AUTOMATIC AIR CONDITIONER (CONTINUED)
