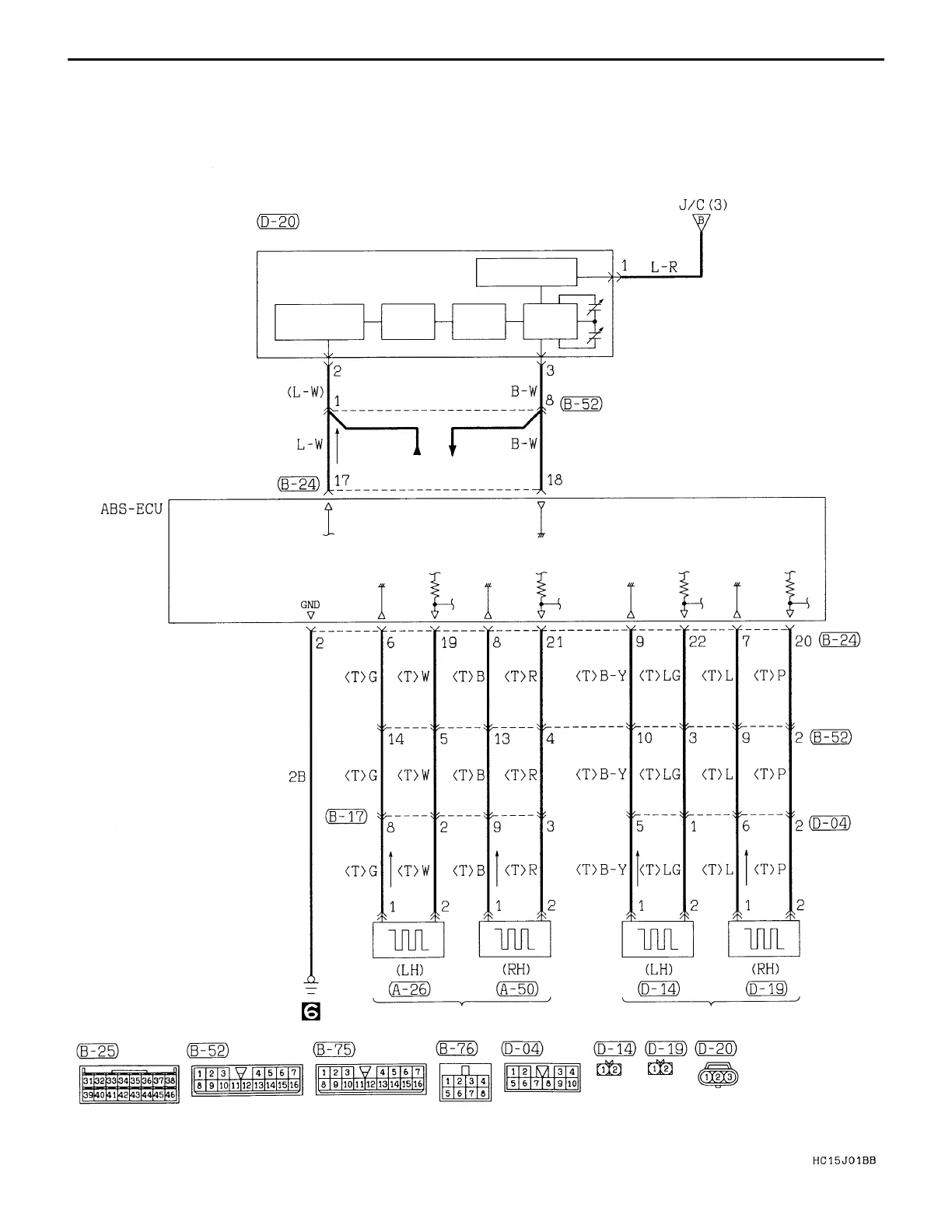

CIRCUIT DIAGRAM – Anti-lock Brake System (ABS)
ACTIVE YAW
CONTROL SYSTEM
FRONT SPEED SENSOR
REAR SPEED SENSOR
ACCELERATION SENSOR (LONGITUDINAL)
NOISE
FILTER
AMPLI-
FYING
CIRCUIT
LOW-
PASS
FILTER
TRANSFORMER
CIRCUIT
DETEC-
TION
CIRCUIT
B-85
