Moons' MBDV Series - Motor Model Introduction; Motor Nameplate Description; Motor Model Description

14
Rev. 2.0
07/27/2023
MBDV Hardware Manual
2.3 Motor model introduction

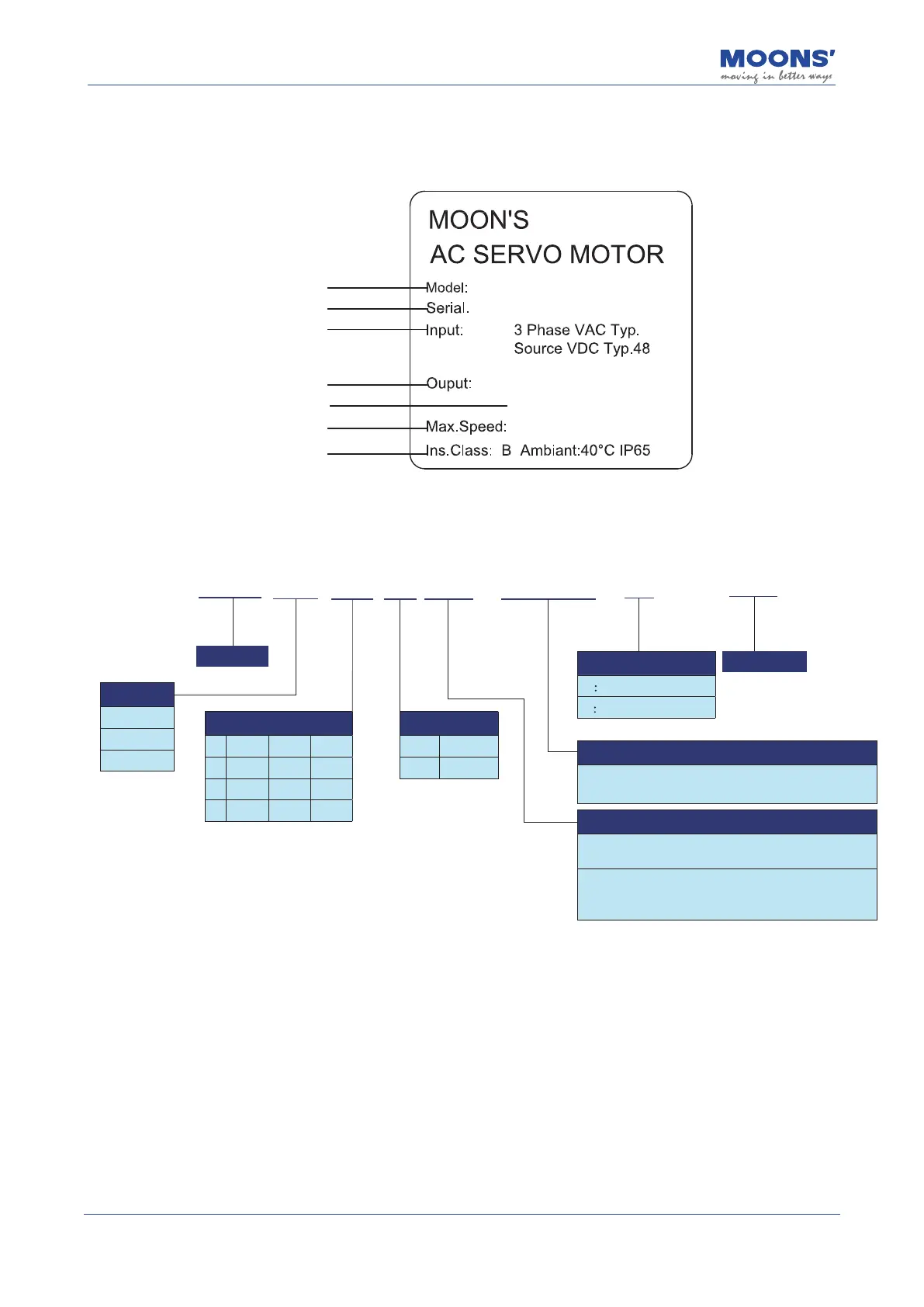

2.3.1 Motor nameplate description
SM0602GSL-KCY-NNV
Model Number
Serial No
Input Voltage
Maximum speed
Protection class
Rated Output Power
Output torque, speed
2109179002
11.8A Rated 12.9A Stall
400W
1.27Nm 3000r/min
4000r/min
2.3.2 Motor model description
SM Series
04-
□
40mm
06- 60mm
08- 80mm
□
40 60 80
01 200W
02 100W 400W
03 750W
Winding(DC)
G 48V
J 24V
SL: 16-bit incrementel Magnetic Encoder,
Communication type
EL: 16-bit incremental Magnetic Master
EncoderCommunication type
1000line incremental Optical Auliary Encoder
KCY: Standard keway, molor cable with Y
type terminal
N
B With brake(24VDC)
S M0602GSL-KCY-NNV
* *
□
□
□
□
Frame Size
Motor Length
Brake
Shaft and lead type
Encoder Type
Custom code
No brake
