MBDV Hardware Manual
3 Installation
3.1 Storage conditions
Please note the following when storing:
• Please put this drive in the packing box and store it in a dry, dust-free place away from direct
sunlight
• Storage ambient temperature between -20
℃
to +65
℃
• Storage environment humidity is in the range of 10% to 85% without condensation
• Avoid storage in corrosive atmospheres
3.2 Installation conditions
The environmental conditions for the driver of this product are:
1. Temperature is 0
℃
~ 50
°
C. If the ambient temperature exceeds 45
℃
, please place it in a
well-ventilated place. It is recommended to operate at 45
℃
for a long time
2. Below ambient temperature to ensure reliable performance of the product.
3. If this product is installed in a distribution box, the distribution box must be sized and ventilated
so that there is no danger of overheating of all electronic devices used inside.
4. Ambient humidity is 10%~85% RH, no condensation
5. Vibration below 9.8m/s 2
6. Do not use the driver near corrosive gas, ammable gas or combustible material
7. Please install the driver in an indoor electrical control box without water and direct sunlight
8. Please avoid using these drive-in dusty places
3.3 Drive installation space
• When installing the drive, please reserve enough space up, down, left and right for the drive to
ensure good air circulation.
• Do not block the cooling vents of the drive.
• To ensure the temperature in the electrical control box, it is recommended to install a cooling
fan in the electrical control box.
• Please ground the drive well when installing.
3.4 Motor Installation Precautions
3.4.1 Protection of encoders and bearings

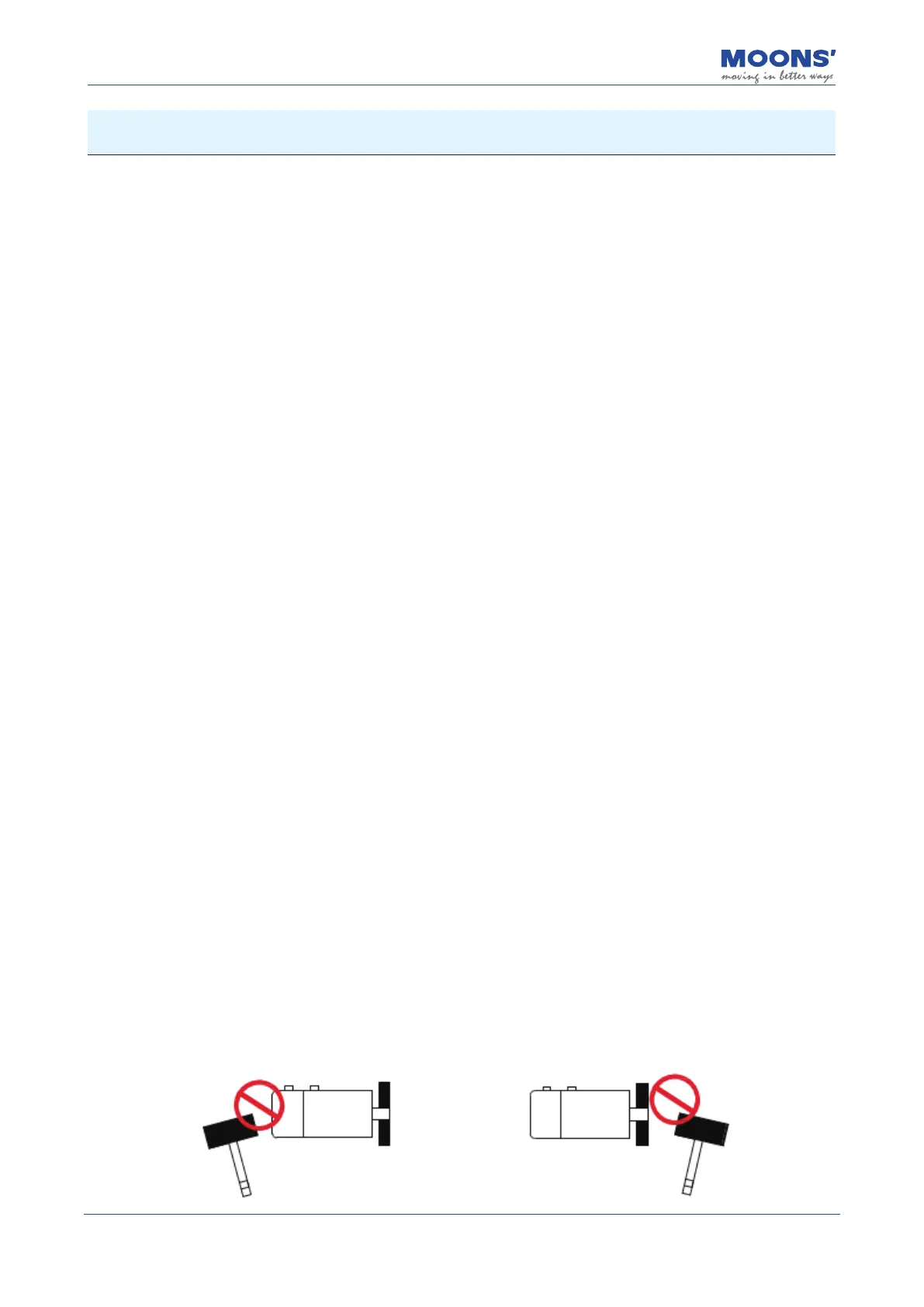

• To prevent damage to the encoder and bearing, do not knock the motor body and shaft during
installation.
