Moons' MBDV Series - Position Control Mode; Position Control Mode Configuration

72
Rev. 2.0
07/27/2023
MBDV Hardware Manual

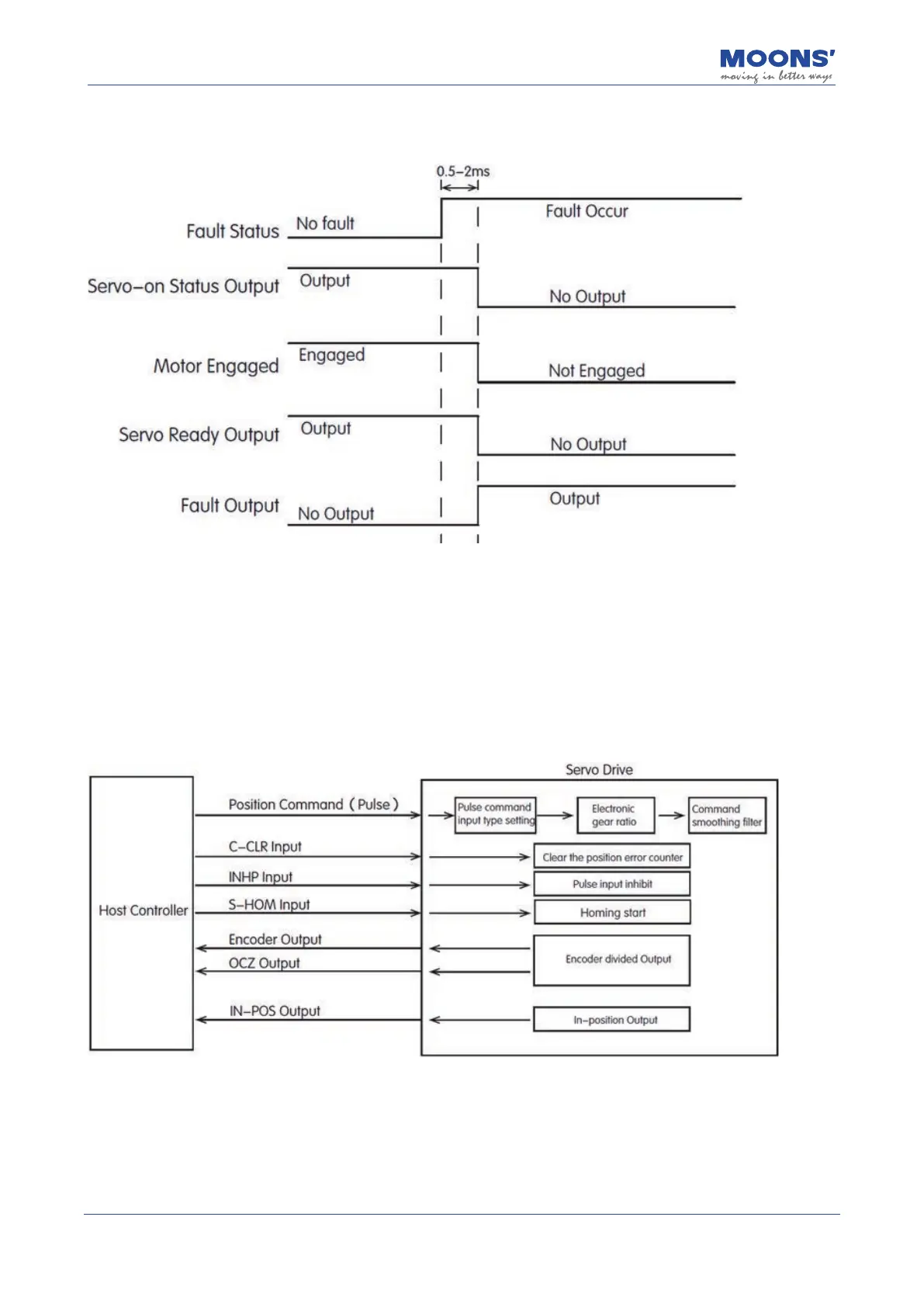

7.1.15.2 Timing chart when fault alarm occurs
7.2 Position control mode
7.2.1 Position control mode conguration
In the position control mode, position control is performed by the position command input from the
host controller. The following describes the basic settings for position control.
◆
Block diagram
