MBDV Hardware Manual
4.6 Using an electromagnetic brake
Servo motors are used in loads such as vertical axes. When the motor is not enabled or powered
o󰀨, in order to prevent the mechanical mechanism driven by the motor from falling due to gravity
and other reasons, it is necessary to use a servo motor with an electromagnetic brake.
Note: The brake of the servo motor can only be used to maintain the position of the motor when
the motor is not enabled or powered o󰀨. Do not use it as a brake during deceleration, otherwise the
motor will be damaged.

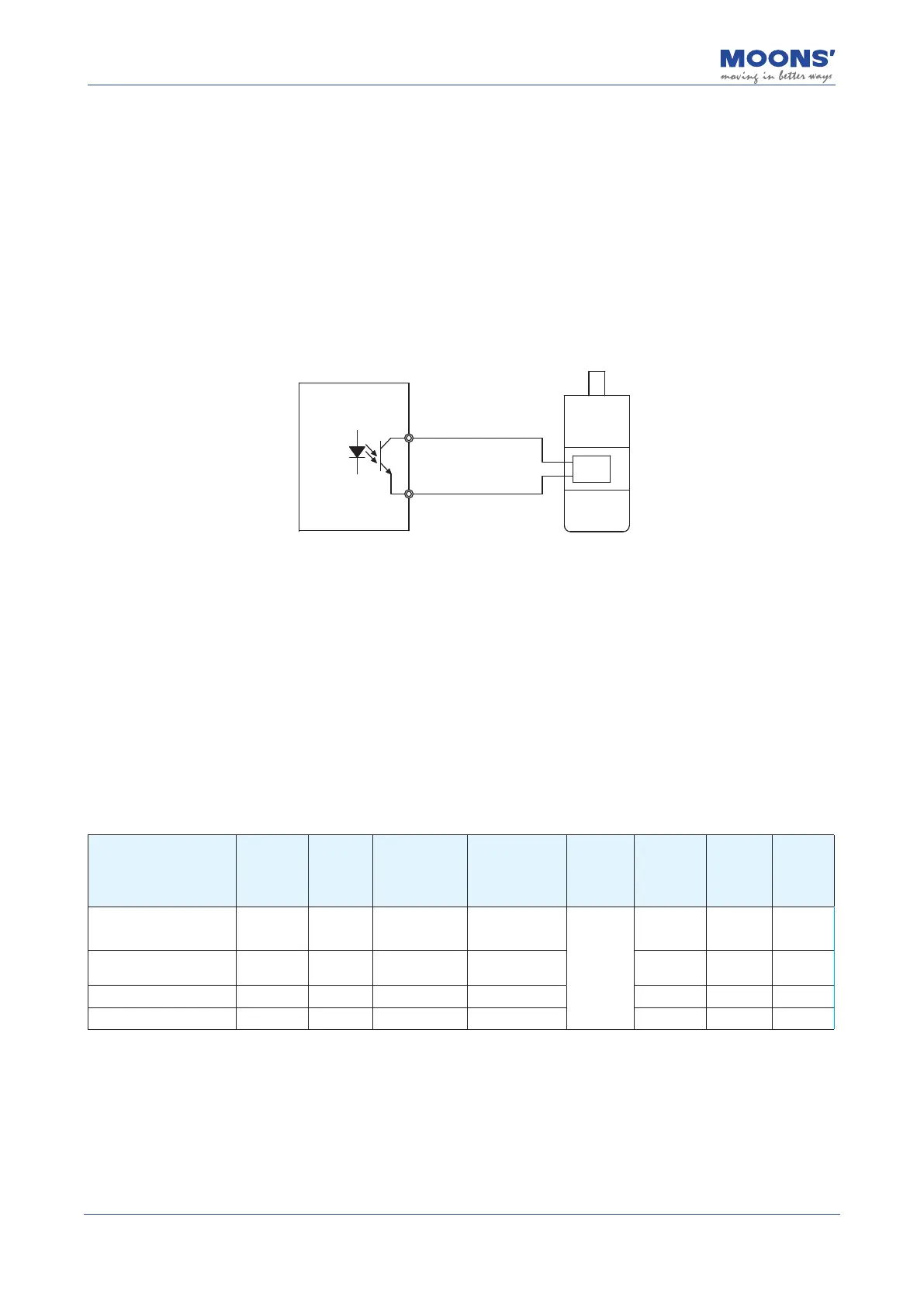

4.6.1 Connection diagram
1
2
Servo Drive
Brake
Brake
4.6.2 Precautions for the use of brake motors
• The special output interface of the driver to control the brake can directly drive the brake of the
motor, and the auxiliary power supply must be connected to provide 24VDC.
• The electromagnetic brake is a normally closed type, and the motor shaft cannot rotate without
power supply to the brake.
• The brake will make a clicking sound during the braking / release action, which will not a󰀨ect
the use.
• It is recommended to use a cable of 0.5mm 2 (AWG20) or more to prevent the cable from
being too thin and causing voltage drop.
◆
Brake specications are as follows
Motor model
Motor
Power
Holding
torque
(Nm)
Continuous
current when
released
(A)
Continuous
power
consumption
when released
(W@20
℃
)
Rated
voltage
(VDC)
Release
time
(ms)
Release
voltage
(VDC)
Braking
time
(ms)
SM0402JSL-KCY-BNV
SM0402GSL-KCY-BNV
100W 0.32 0.26 6.3
24
< 25 18.5 < 70
SM0601J*L-KCY-BNV
SM0601G*L-KCY-BNV
200W 1.5 0.3 7.2 < 25 18.5 < 70
SM0602G*L-KCY-BNV
400W 1.5 0.3 7.2 < 25 18.5 < 70
SM0803G*L-KCY-BNV
750W 3.2 0.4 9.6 < 25 18.5 < 70
