MBDV Hardware Manual
7.1.8 Fault output
When the drive fails, the drive will have a fault alarm output and the servo system will change from
the enabled state to the disable state.
To use this function, a digital output of the servo drive is congured as ALM function.
Parameters P5-12 ~ P5-13 set the function of the digital output Y1 ~ Y2 of the drive. Should either
of these inputs be assigned as the fault output.
Type Signal Symbol Setup Value Signal logic Function
Output ALM
1
Closed When the output is CLOSED, it means that the drive has a fault
Open
When the output is OPEN, it means the drive is in normal state and no
fault is occurred.
2
Open When the output is OPEN, it means that the drive has a fault.
Closed
When the output is CLOSED, it means the drive is in normal
state and no fault are occurred.

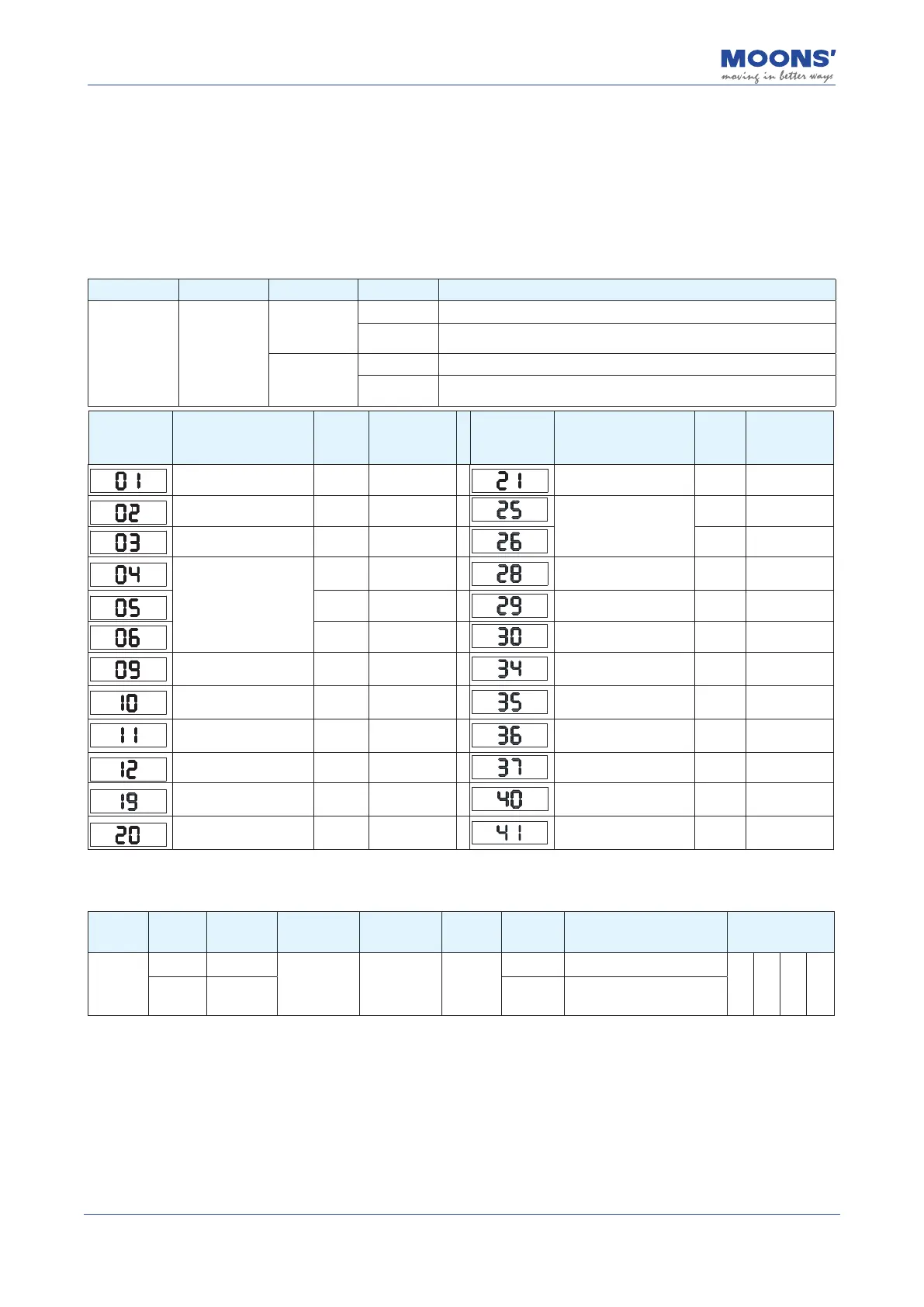

LED Display Description
Alarm
Type
Drive status
after the
alarm occurs
LED Display Description
Alarm
Type
Drive status
after the
alarm occurs
Drive over temperature Fault Servo o󰀨 Regeneration failed Fault Servo o󰀨
Internal voltage error Fault Servo o󰀨
Internal voltage error
Fault Servo o󰀨
Over-voltage Fault Servo o󰀨 Fault Servo o󰀨
Over current
Fault Servo o󰀨
Full-closed loop
position following error
Fault Servo o󰀨
Fault Servo o󰀨 External encoder error Fault Servo o󰀨
Fault Servo o󰀨 Memory error Fault Servo o󰀨
Encoder feedback
error
Fault Servo o󰀨
Motor over
temperature
Fault Servo o󰀨
Position following error Fault Servo o󰀨
Drive MCU over
temperature
Fault Servo o󰀨
Low voltage Fault Servo o󰀨
Absolute encoder multi-
turn error
Fault Servo o󰀨
Over speed Fault Servo o󰀨 Motor stalled Fault Servo o󰀨
Phase loss of main
circuit
Fault Servo o󰀨
Motor collision alarm Fault Servo o󰀨
Safe torque o󰀨 Fault Servo o󰀨
Encoer
Communications error
Fault Servo o󰀨
◆
Default settings for MBDV series drives
Signal
name
Output
NO.
PIN NO. Parameter Command Setting
Signal
logic
Description Support mode
ALM
Y1 15
P5-12 MO1 2
Closed
The drive has a fault.
P V T
YCOM 14 Open
The drive is in normal state
and no fault is occurred.
