7.3.4 Zero speed output
When the absolute value of the actual speed of the motor is less than P5-42 (zero speed judgment
threshold), and the duration reaches the set time of P5-40 , the servo drive outputs the zero-speed
signal Z-SPD. If the absolute value of the actual speed of the motor is greater than P5-42, the
zero-speed signal Z-SPD will not be output.
The zero speed output is not dependent on the control mode or the state of the servo motor. This
allows users to use this output signal as notier of ongoing motion at the motor.

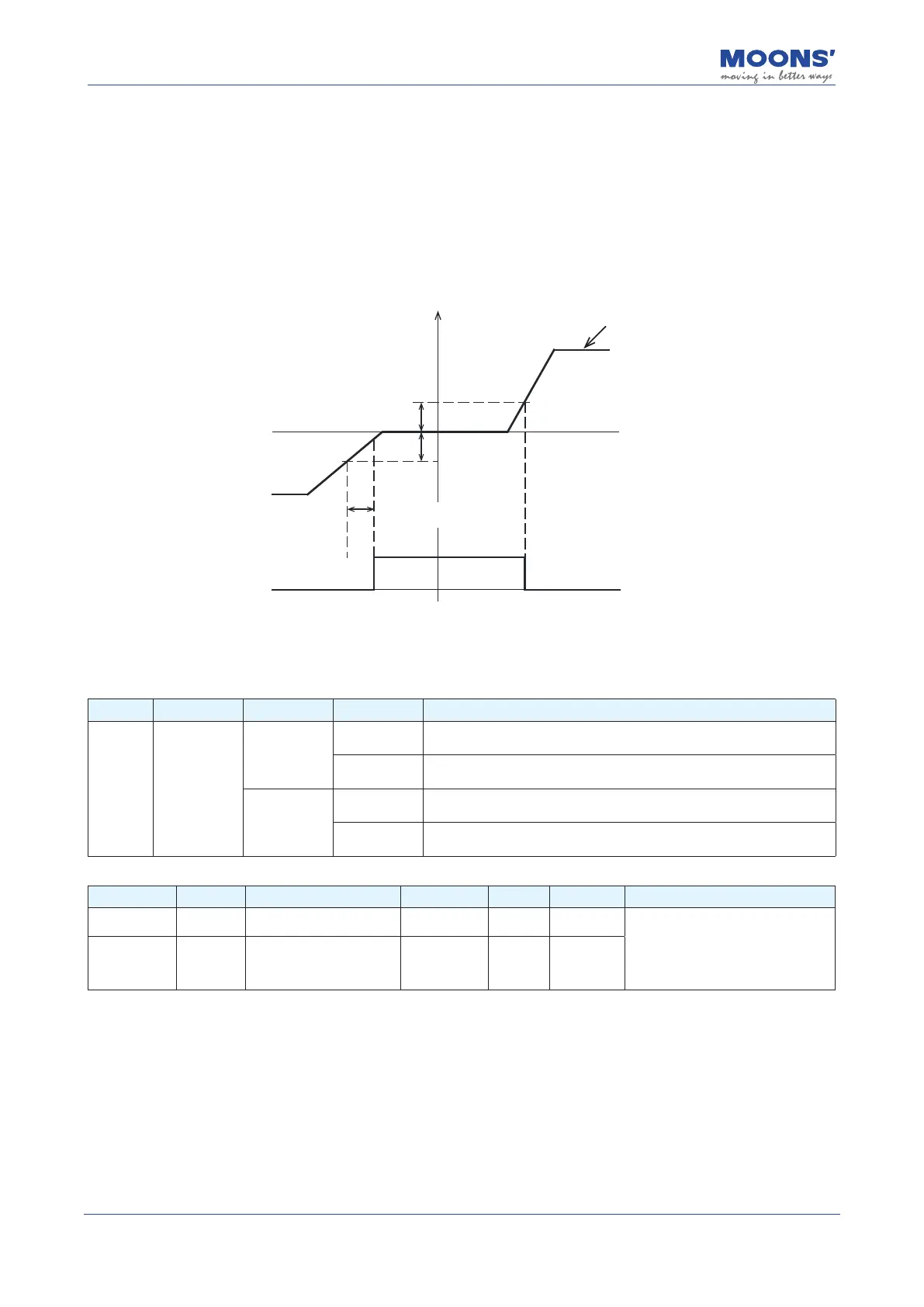

Speed
Actual Speed
Zero Speed Signal
Time
No Output
No Output
Output
P5-42
P5-40
◆
Z-SPD output signal conguration
When using Z-SPD, a digital output pin needs to be assigned this function.
Type Signal name Set value Signal logic Function
Output Z-SPD
33
Closed
The Z-SPD judgment condition is satised, the Z-SPD signal is output,
and the output state is closed
Open
The Z-SPD judgment condition is not satised, the Z=SPD signal is not
output, and the output state is open
34
Open
The Z-SPD judgment condition is satised, the Z-SPD signal is output,
and the output state is open
Closed
The Z-SPD judgment condition is not satised, the Z-SPD signal is not
output, and the output state is closed
Related parameters
Parameter Instruction Name Value range Defaults Unit Description
P5-40 PE Motion condition timer 0 ~ 30000 10 ms
When the speed is less than or
equal to the set value of P5-42, and
the duration reaches the set time of
P5-40, the drive considers that it is
in the zero-speed state at this time
P5-42 ZV
Zero speed threshold
range
0.1 ~ 2 0.5 rps
