Moons' MBDV Series - I;O Signal Pin Block Diagram

46
Rev. 2.0
07/27/2023
MBDV Hardware Manual
Axis Classication
Describe
1
Digital
signals
Inputs
4 optically isolated inputs, congurable via parameters, max 24 VDC, max withstand
current of 20 mA
Outputs
2 optically isolate outputs, congurable via parameters, max 30 VDC, max withstand
current of 100 mA
2
Digital
signals
Inputs
4 optically isolated inputs, congurable via parameters, max 24 VDC, max withstand
current of 20 mA
Outputs
2 optically isolate outputs, congurable via parameters, max 30 VDC, max withstand
current of 100 mA

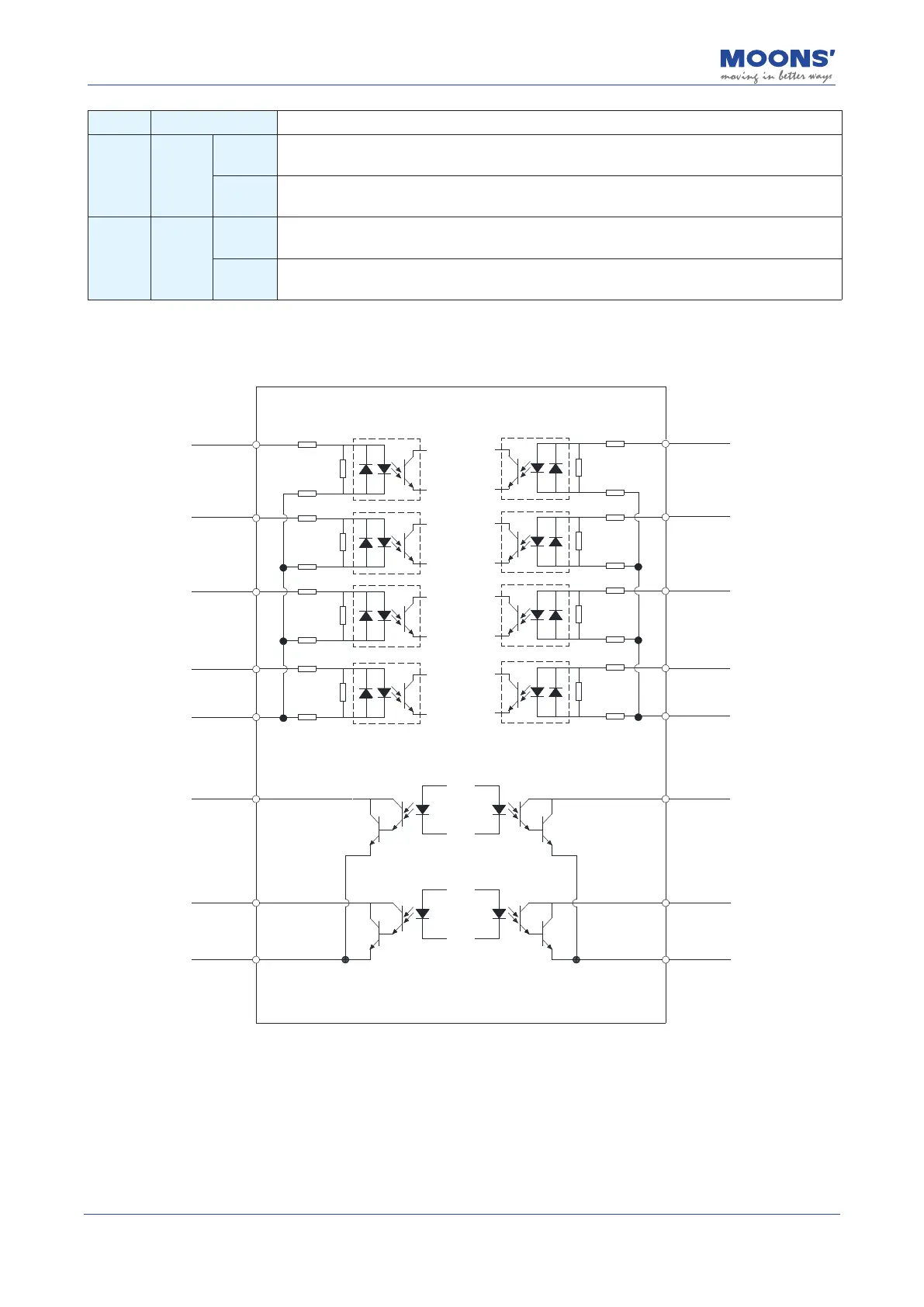

4.10.2 I/O Signal Pin Block Diagram
1
1_X1
2
1_X2
3
1_X3
4
1_X4
5
1_XCOM
2.4KΩ
2.4KΩ
2.4KΩ
2.4KΩ
2.4KΩ
2.4KΩ
2.4KΩ
2.4KΩ
16
15
14
2.4KΩ
2.4KΩ
2.4KΩ
2.4KΩ
2.4KΩ
2.4KΩ
2.4KΩ
2.4KΩ
9
10
11
12
13
8
1_Y2
7
1_Y1
6
1_YCOM
2_X1
2_X2
2_X3
2_X4
2_XCOM
2_Y2
2_Y1
2_YCOM
