S350 Series 24-Port (PoE+) and 48-Port Gigabit Ethernet Smart Managed Pro Switches

Configure Switching User Manual136

3. In the address field of your web browser, enter the IP address of the switch.

If you do not know the IP address of the switch, see

Discover or Change the Switch IP

Address on page 12.

The login window opens.

4. Enter the switch’s password in the Password field.

The default password is

password.

The System Information page displays.

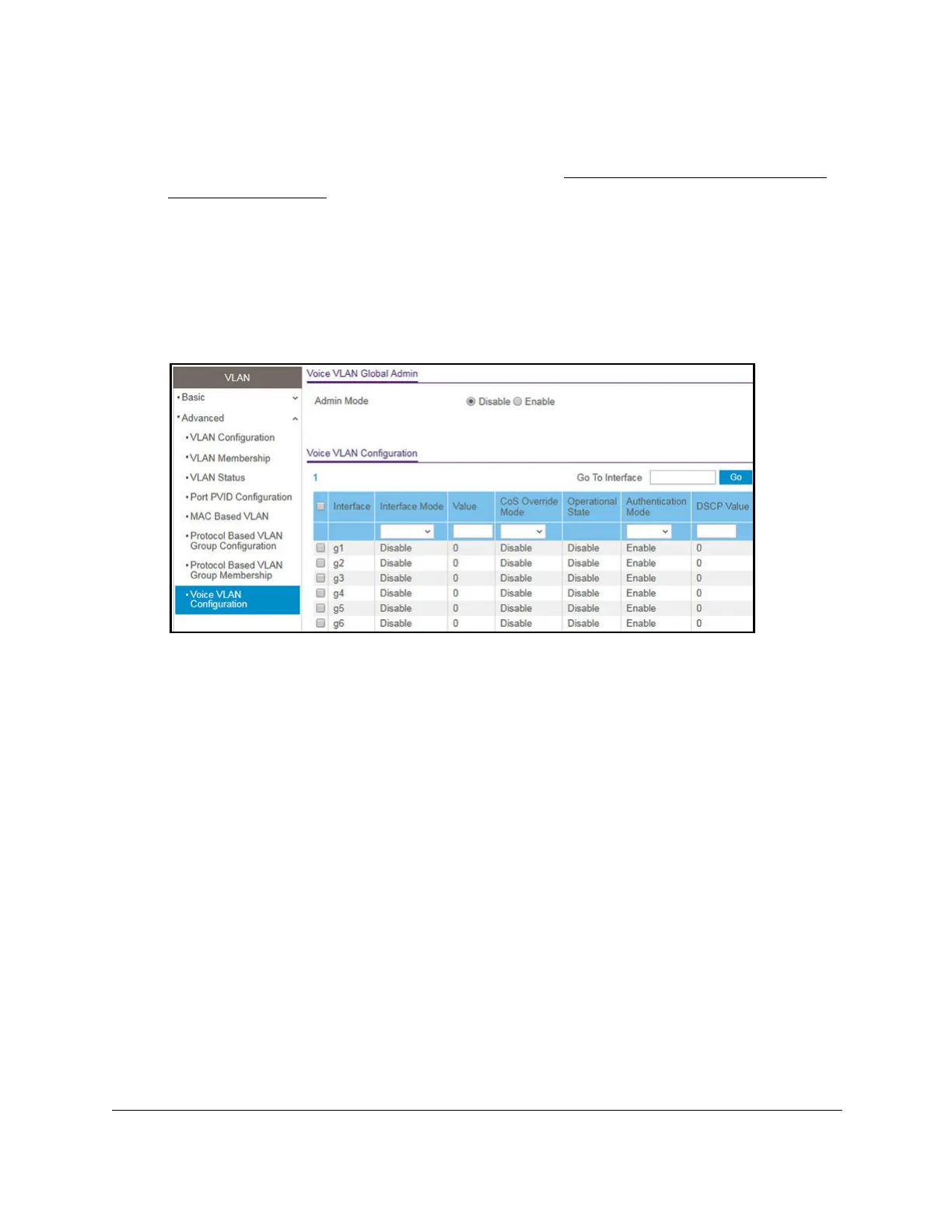

5. Select Switching> VLAN >

Advanced > Voice VLAN Configuration

6. Select the Admin Mode Disable or Enable radio button.

This selection specifies the administrative mode for the voice VLAN for the switch. The

default is Disable.

7. Select the interface by taking one of the following actions:

• To configure a single interface, select the check box associated with the port, or type

the port number in the Go T

o Interface field and click the Go button.

• T

o configure multiple interfaces with the same settings, select the check box

associated with each interface.

• To configure all interfaces with the same settings, select the check box in the heading

row

8. From the

Interface Mode menu, select the voice VLAN mode for selected interfaces:

• Disable. This is the default value.

• None

. Allow the IP phone to use its own configuration to send untagged voice traffic.

• VLAN ID

. Configure the phone to send tagged voice traffic. Y

ou must enter the VLAN

ID in the Value field (see the next step).

• Dot1p. Configure voice VLAN 802.1p priority tagging for voice traffic. Y

ou must enter

the dot1p value in the Value field (see the next step).

• Untagged. Configure the phone to send untagged voice traffic.

NETGEAR GS324T Specifications

General

Switch type	Managed
Switch layer	L2/L3/L4
ARP inspection	Yes
Master (outer) case width	270 mm
Master (outer) case height	271 mm
Master (outer) case length	481 mm
Master (outer) case weight	8850 g
Harmonized System (HS) code	85176990
Quantity per master (outer) case	3 pc(s)
Package type	Box
Package depth	465 mm
Package width	229 mm
Package height	79 mm
Package weight	2710 g
Cables included	AC
Stackable	-
Product color	Black
Input current	5 A
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	13.5 W
Operating temperature (T-T)	0 - 40 °C
MAC address table	16000 entries
Power connector	AC-in jack
SFP module slots quantity	2
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	24
Number of VLANs	256
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3az, IEEE 802.3x
Virtual LAN features	Private VLAN, Voice VLAN, Port-based VLAN
DHCP features	DHCP client
