NETGEAR GS324T User Manual

S350 Series 24-Port (PoE+) and 48-Port Gigabit Ethernet Smart Managed Pro Switches
Manage Device Security User Manual258
6. Select whether to display physical interfaces, LAGs, or both by clicking one of the following
links above the table heading:
•1 (the unit ID of the switch). Only physical interfaces are displayed.
This is the default
setting.
• LAG
. Only LAGs are displayed.
• All. Both physical interfaces and LAGs are displayed.
7. Select one or more interfaces by taking one of the following actions:
• T
o configure a single interface, select the check box associated with the port, or type
the port number in the Go T
o Interface field and click the Go button.
• To configure multiple interfaces with the same settings, select the check box
associated with each interface.
• To configure all interfaces with the same settings, select the check box in the heading
row
.

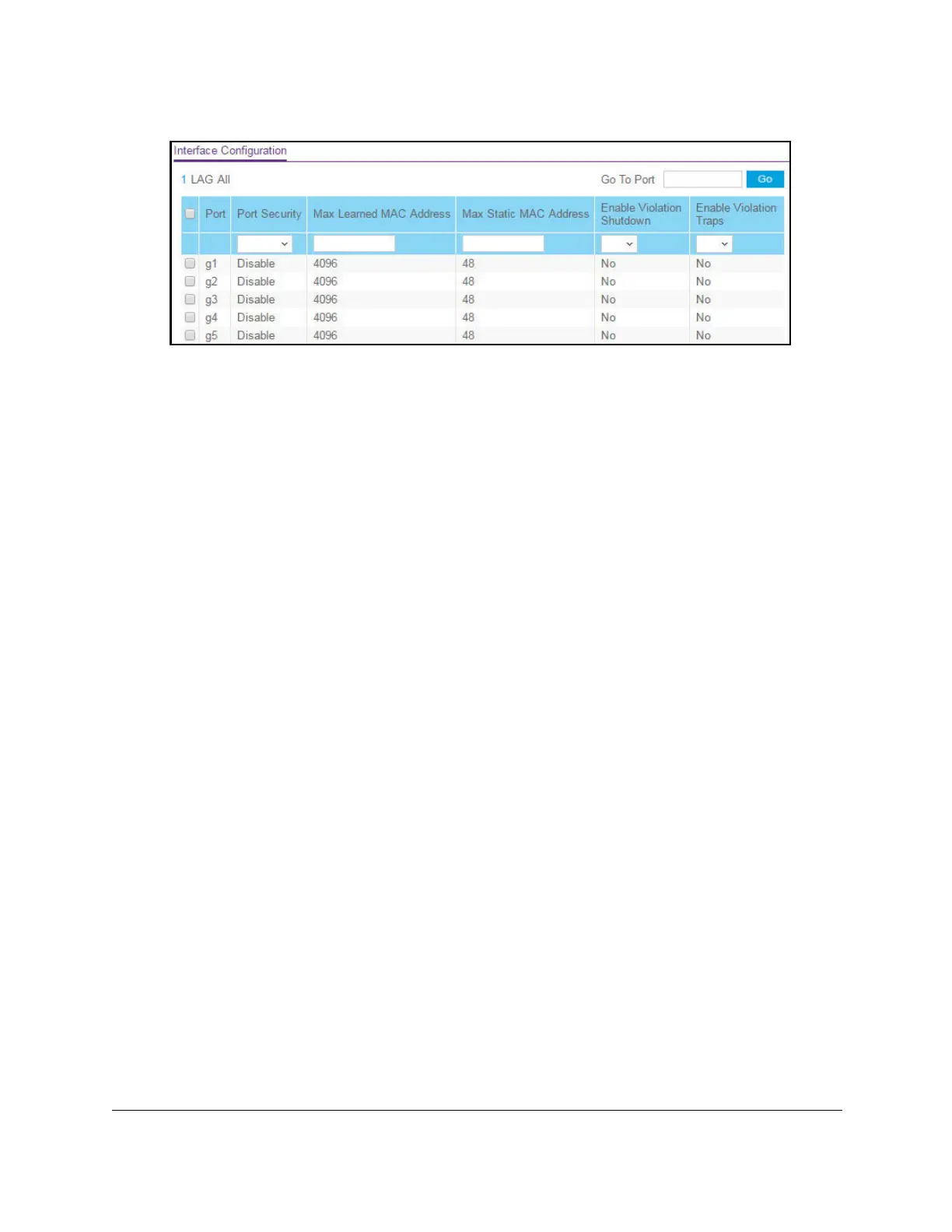

8. Specify the following settings:
•
Port Security. Enable or disable the port security feature for the selected interfaces
The default is Disable.
• Max Learned MAC Address. Specify the maximum number of dynamically learned
MAC addresses on the selected interfaces. The default is 4096.
• Max Static MAC Address. Specify the maximum number of statically locked MAC
addresses on the selected interfaces. The default is 48.
• Enable V
iolation Shutdown. Enable or disable shutdown of the selected interfaces if
a packet with a disallowed MAC address is received. The default value is No, which
means that the option is disabled.
• Enable V
iolation Traps. Enable or disable the sending of new violation traps if a
packet with a disallowed MAC address is received. The default value is No, which
means that the option is disabled.
9. Click the Apply button.
Y
our settings are saved.

NETGEAR GS324T Specifications

General

Switch type	Managed
Switch layer	L2/L3/L4
ARP inspection	Yes
Master (outer) case width	270 mm
Master (outer) case height	271 mm
Master (outer) case length	481 mm
Master (outer) case weight	8850 g
Harmonized System (HS) code	85176990
Quantity per master (outer) case	3 pc(s)
Package type	Box
Package depth	465 mm
Package width	229 mm
Package height	79 mm
Package weight	2710 g
Cables included	AC
Stackable	-
Product color	Black
Input current	5 A
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	13.5 W
Operating temperature (T-T)	0 - 40 °C
MAC address table	16000 entries
Power connector	AC-in jack
SFP module slots quantity	2
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	24
Number of VLANs	256
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3az, IEEE 802.3x
Virtual LAN features	Private VLAN, Voice VLAN, Port-based VLAN
DHCP features	DHCP client

Weight and Dimensions

Depth	169 mm
Width	328 mm
Height	43 mm
Weight	1620 g
