Wiring a Remote Station Fire Alarm System NFPA Applications
AFP-200 PN 15511:H2 10/14/2002 137
B.4.2 Using a 4XTM Module

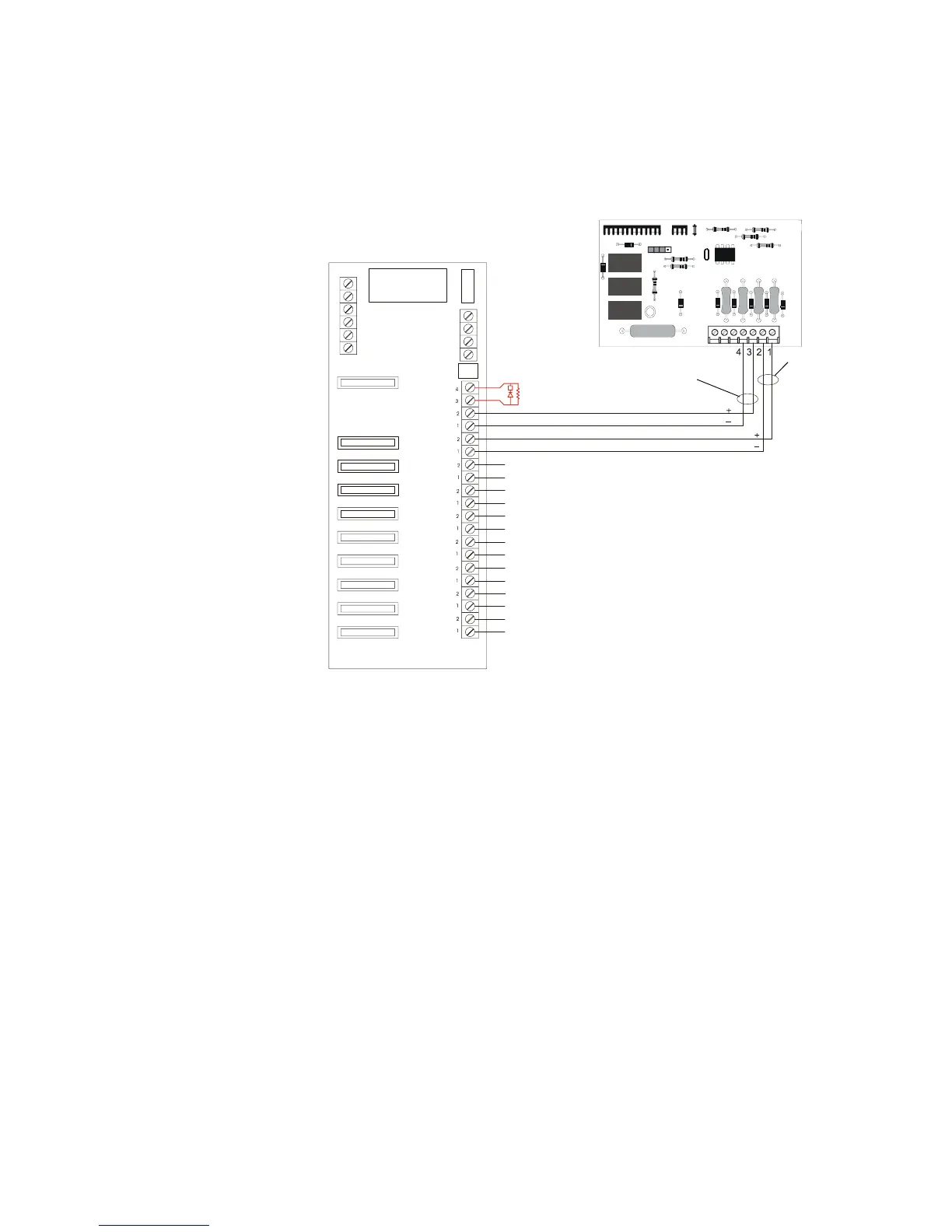

Figure 133 shows typical connections for wiring the control panel to remote station fire
alarm system using a 4XTM module.
Figure 133 NFPA 72 Remote Station Fire Alarm System
4XTM
Transmitter Module
(activated polarities shown)
Polarity shown is for normal standby.
Alarm
Signal
Input 3
Alarm
Signal
Input 4
Alarm
Signal
Input 5
Alarm
Signal
Input 6
Alarm
Signal
Input 7
Alarm
Signal
Input 8
Alarm
Signal
Input 9
Bell or
Horn
Remote
Trouble
Remote
Alarm
Remote
Station Master
RS82to4XTM.cdr
