Installation Wiring a Signaling Line Circuit (SLC)
44 AFP-200 PN 15511:H2 10/14/2002
Partial-Conduit Shield Termination
Do not allow the shield drain wire to enter the system cabinet or the conduit. Connect
the drain wire to the termination point of the conduit run.
Figure 21 Shield Termination – Partial Conduit
2.9.6 Setting an SLC Address for a Module
Each module can be set to one of 99 addresses (01-99) and is factory preset with an
address of “00”. Addresses past 99 are not recognized by this system.
To set an SLC address, use a common screwdriver to adjust the rotary switches on the
module to the desired address. The unit below is set at “35”. When finished, mark the
address on the module face in the place provided.
Figure 22 Setting SLC Address on Module

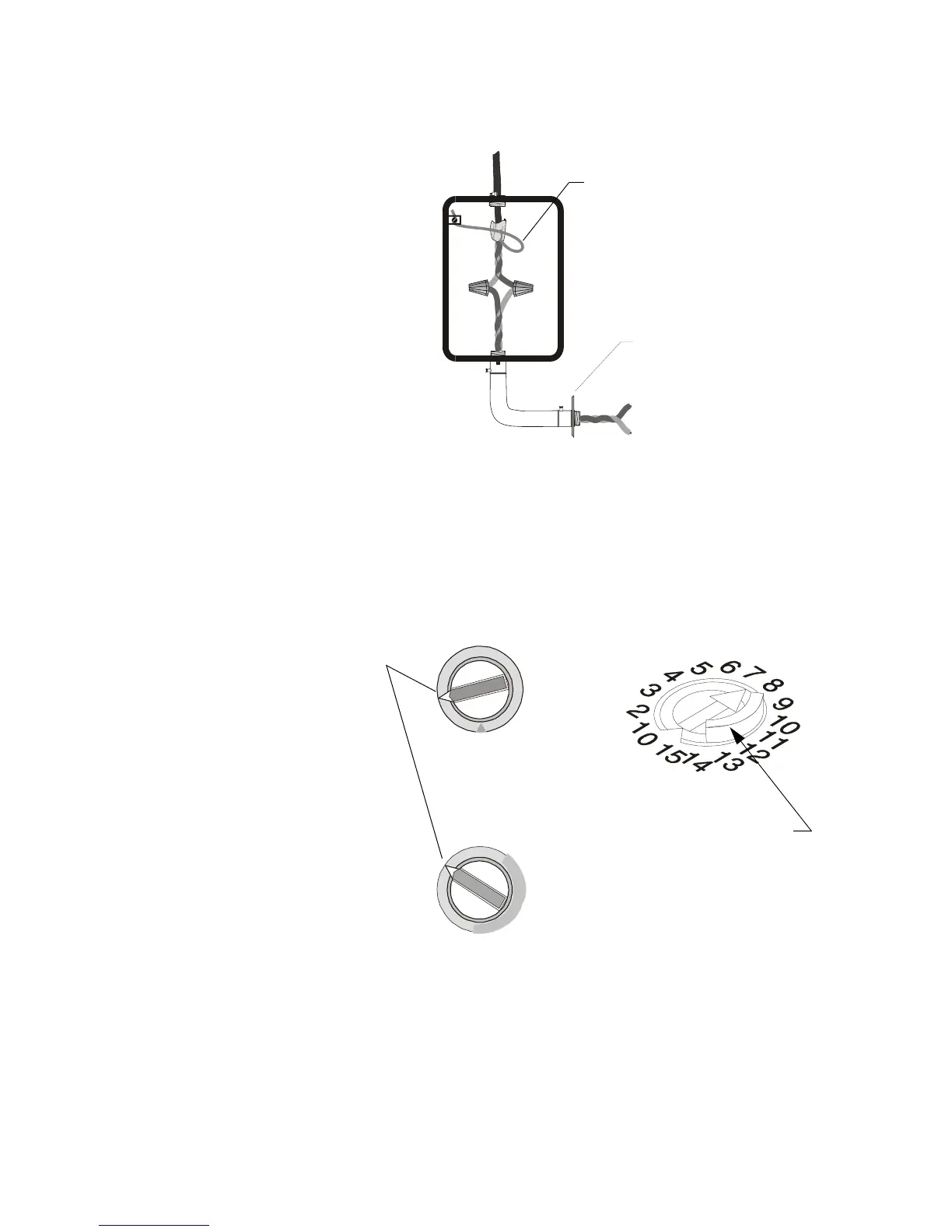

If the length of conduit from the
control panel cabinet exceeds
20 feet (6.096 m), terminate the
shield as shown. If using a
metal box, you must use a
metal conduit.
Cabinet
Shield Drain Wire
SLC +
SLC -
TENS
ONES
8
9
10
11
12
13
14
15
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
SLC-setadd.cdr
Rotary Switches
Breakaway Tab - Devices
come with a raised
breakaway tab on the TENS
rotary switch. This tab must
be left intact for this system.
