Annunciators LCD-80 Display
140 AFP-200 PN 15511:H2 10/14/2002
Appendix C Annunciators

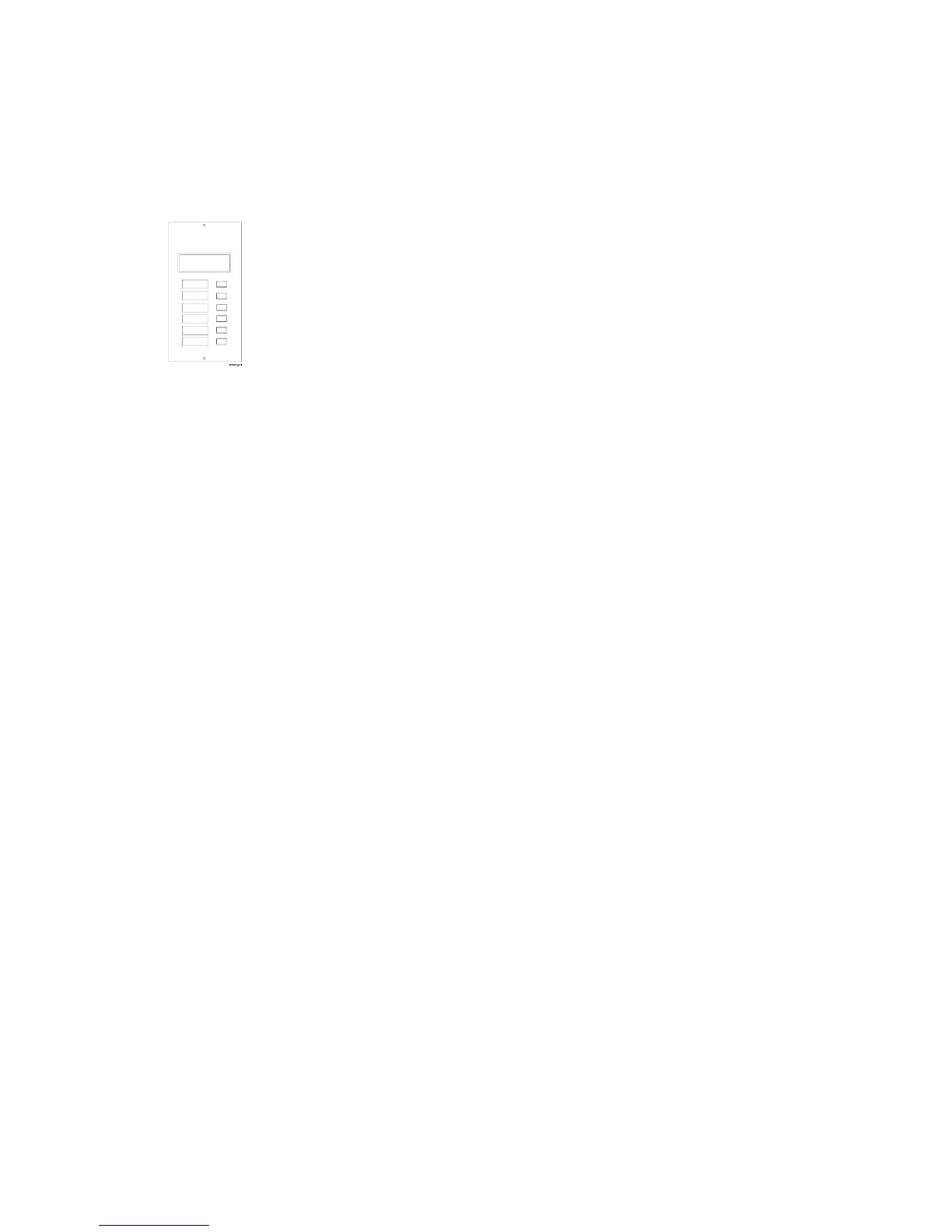

C.1 LCD-80 Display
The LCD-80 alphanumeric display module is an AFP-200 ancillary device that
provides two modes of operation: Terminal Mode, where the LCD-80 acts as a display
repeater; and ACS Mode, where the LCD-80 acts as an alphanumeric annunciator. To
select the operation mode, use switch SW2 on the CPU (Figure 3 on page 17). The
LCD-80 features the following:
80-character LCD display that backlights under normal and alarm conditions
Control switches for Acknowledge, Alarm Silence, and System Reset, all made
operational by an optional AKS-1 switch
Time and date display field
Annunciator backbox ABF-1 package with optional AKS-1 key switch and phone
jack options
Remote operation (mounts up to 6,000 feet (1828.8 m) from the control panel)
Local panel sounder with alarm/trouble resound
C.1.1 ACS Mode
ACS Mode, which requires programming the LCD-80, provides a remote or local
digital display and a printer interface for the control panel and provides the following
features:
C.1.2 Terminal Mode
Terminal Mode, which does not require any programming, offers the following
features: Device type identifiers from control panel; device and zone custom
alphanumeric labels from control panel, and time/date and device address from control
panel.
C.2 Terminal Mode (LCD-80) Annunciation Interface (TB5 on CPU)
In Terminal mode, the control panel annunciates all point information to remote
LCD-80 displays. Each LCD-80 mirrors the control panel LCD display and includes
Acknowledge, Silence, and Reset switches. An LCD-80 will display all 198 intelligent
points without being programmed. Switch SW2 on the CPU board must be set for
TERM and the control panel must be programmed for Terminal mode.
General status banner
40 character custom label
Step Display and Time/Date/Set
switches
Custom “normal” message
Alarm and trouble count
First alarm/last alarm/alarm count
(European option)
Field-programmable messages
(available in English and all foreign
language versions)
Field programmable, nonvolatile
memory in two options (128 points,
40-character labels or 256 points,
20-character labels)
Internal nonvolatile clock
