Notifier AFP-200 Installation Manual

Installation Expansion Power Supplies
AFP-200 PN 15511:H2 10/14/2002 183
J.4.2 Installing the APS-6R
Mounting the APS-6R
To mount the APS-6R, follow these steps:
1. Place the APS-6R into the cabinet as shown in Figure 163.
2. Insert mounting screws into cabinet; then tighten the screws until the APS-6R is
securely fastened to the cabinet.

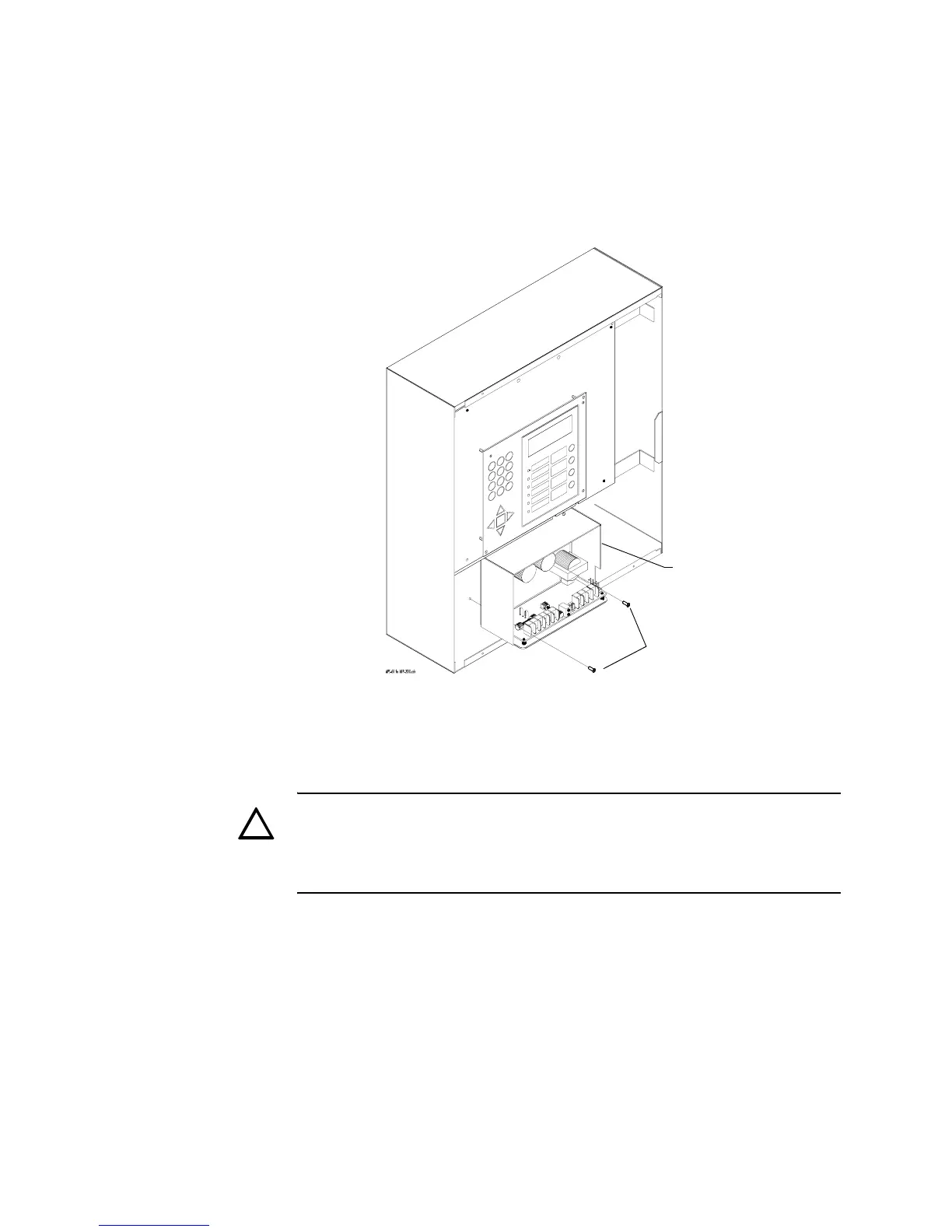

Figure 163 Mounting the APS-6R
Wiring the APS-6R
Wire the APS-6R to the control panel according to the steps in Table 69 and the
drawing in Figure 164.
WARNING: Use extreme caution when working with the AVPS-24 or APS-6R—high
voltage and AC line-connected circuits are present in the AVPS-24 or APS-6R.
Turn off and remove all power sources. To reduce the risk of electric shock—make
sure to properly ground the AVPS-4R or APS-6R. Before connecting AC and DC
power, install the APS-6R cover.
Mounting
APS-6R
!
Technical Manuals Online! - http://www.tech-man.com

Notifier AFP-200 Specifications

General

Control Panel Type	Addressable Fire Alarm Control Panel
Auxiliary Power Output	24 VDC, 500 mA
Operating Temperature	32°F to 120°F (0°C to 49°C)
Display	80-character LCD
Power Supply	120 VAC, 60 Hz
Capacity	198 addressable devices
Notification Appliance Circuits	2
Relay Contacts	3 (Form-C)
Relative Humidity	93% non-condensing
