D.3.1 Connecting a Releasing Device to a Control Panel
through an SLC Control or Relay Module
Figure 145 shows typical connections of releasing device to the control panel to a via a
control or relay module.

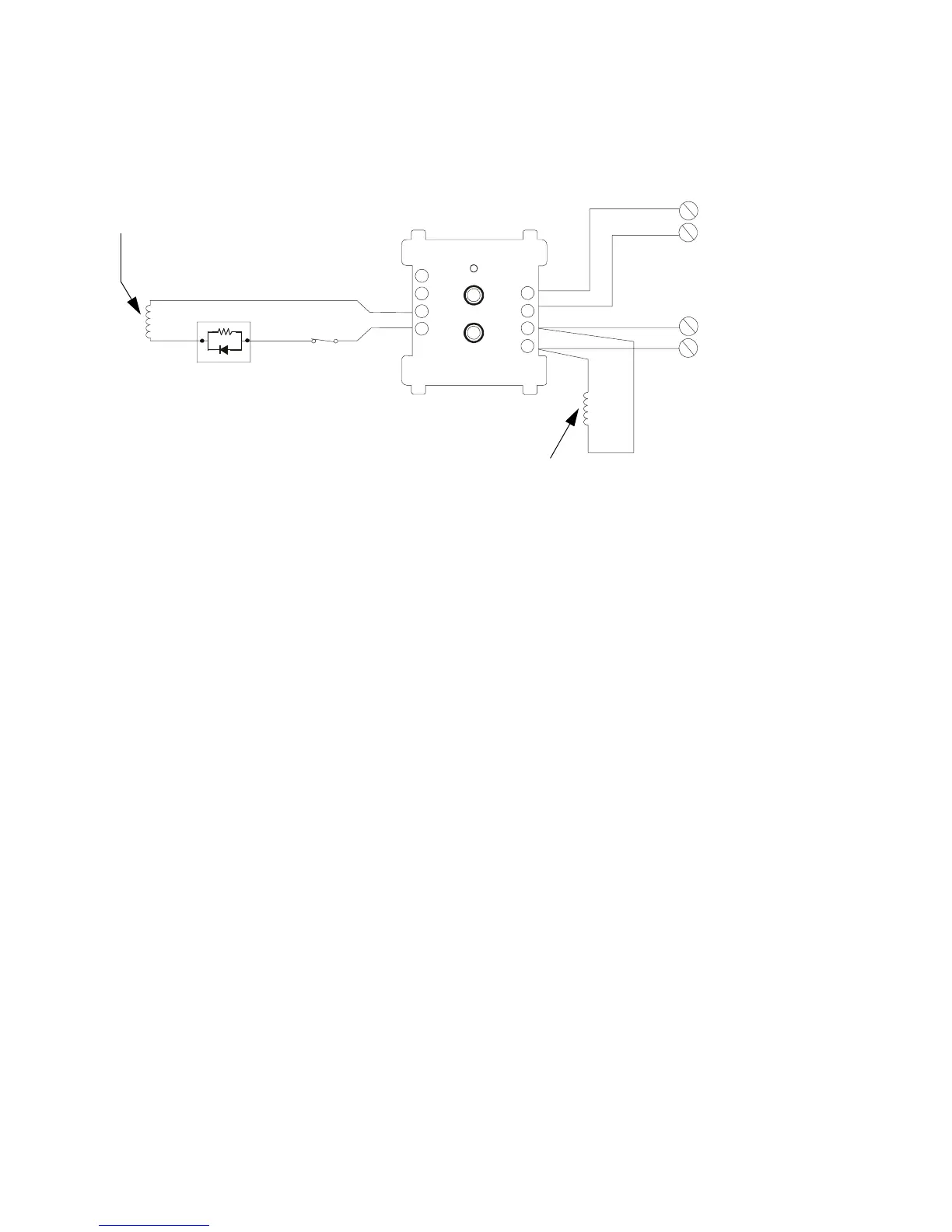

Figure 145 Typical Connection of Releasing Device to Control Module
D.3.2 Connecting an NBG-12LRA Agent Releasing Abort
Station
Figure 146 shows typical connections for wiring an NBG-12LRA Agent Releasing
Abort Station to the AFP-200. All wiring for releasing circuits is supervised against
opens and shorts.
When connecting this type of circuit, follow these instructions:
1. For releasing applications, use an end-of-line device (part number REL-47K) with
the control module.
2. Connect the end-of-line device as shown in Figure 146.
3. Program the control module or NAC for a Rel Ckt ULC type code.
90
81
72
63
54
24 VDC UL-listed
releasing device
Power Supervision Relay A77-716B
SLC Loop to AFP-200
TB6-5 (-)
TB6-3 (+)
Alarm polarity shown
N.C. supervised
relay contact
REL-47K
Brown Red
24 VDC power
from the AFP-200
TB1-2 (-)
TB1-1 (+)
+
+
+
-
-
-
FCM-1
