Programming Combination Fire/Burglary Applications
AFP-200 PN 15511:H2 10/14/2002 159
Refer to Device Compatibility Document 15378 for compatible Notification Appliance
Circuits.

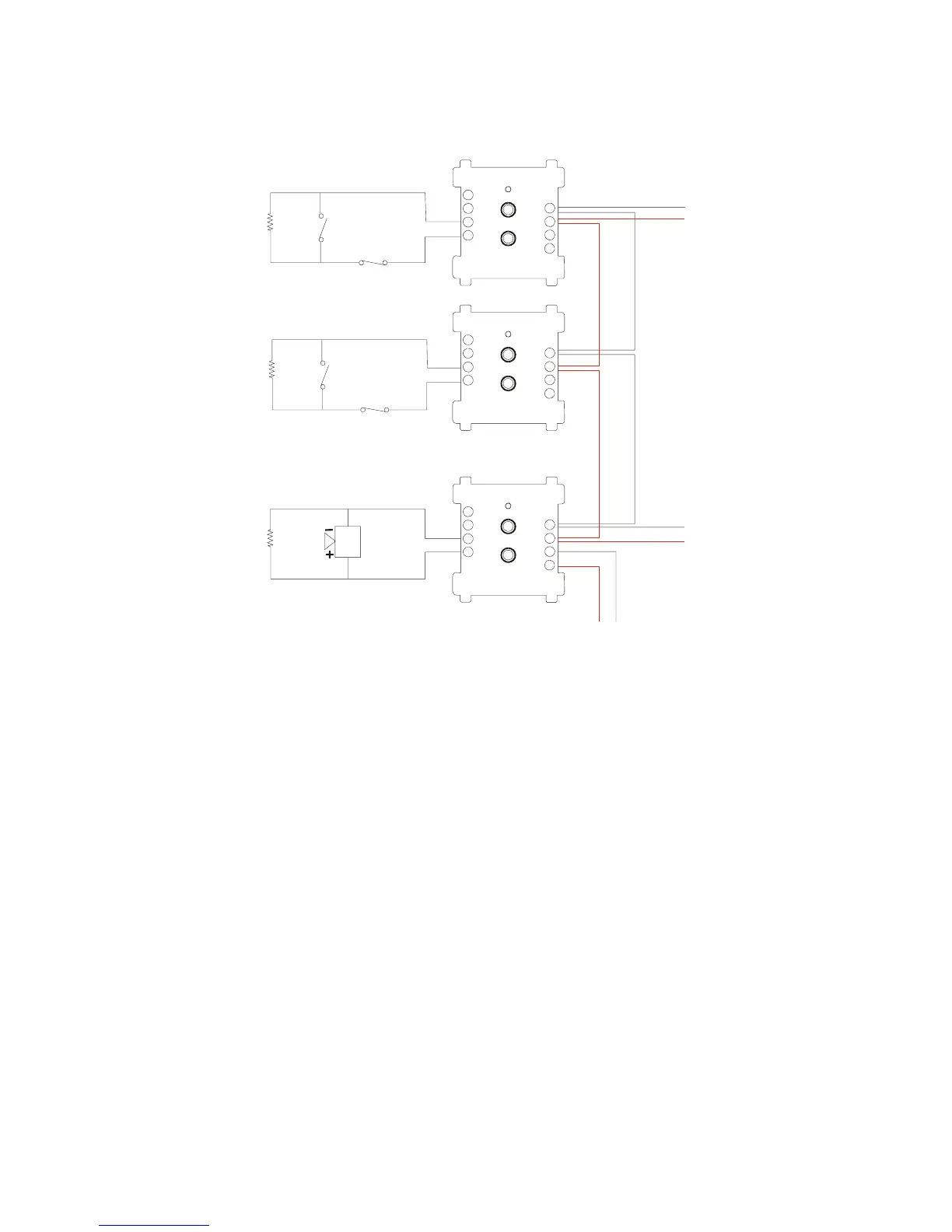

Figure 149 Wiring Diagram for Proprietary Security Alarm Applications
E.2.4 Connecting to an AM2020/AFP1010 Receiving Unit
For applications requiring transmission of burglary alarm information to a central
receiving unit, do the following:
1. Connect the control panel to an AM2020 or AFP1010 provided with a NIB-96
network interface board. Burglar alarm zones are reported to the
AM2020/AFP1010 through the NIB-96 Network Interface Board (for installation
instructions, refer to Appendix B).
2. Configure the AM2020/AFP1010 for Combination Fire/Security applications. For
instructions, refer to the installation section of the AM2020/AFP1010 manual.
3. Program the AM2020/AFP1010 networked monitor points as SARM type code
(security alarm).
E.3 Programming
Program the control panel to select any number of Burglar Alarm type code devices
(refer to Section 3 “Programming”). To program a point used for security, follow these
instructions:
1. Select the address of a monitor module used for security.
2. Set the monitor module type code to
BURGLAR ALA.
90
81
72
6
3
54
-
-
+
+
90
81
72
63
54
-
+
+
-
90
81
72
63
54
-
+
+
-
(+) (-)
UL-listed 24 VDC
Power Supply
To next device
SLC (Channel A or B)
AFP-200 Protected
Premises Unit
Monitor modules are
programmed with type code
BURGLAR ALA (refer to
Section 3 “Programming”).
+24 VDC UL-listed
Notification Appliance
UL-listed, normally-closed
security switch
47K
End-of-Line
Resistor
(A2143-00)
47K
End-of-Line
Resistor
(A2143-00)
47K
End-of-Line
Resistor
(A2143-00)
UL-listed, normally-open
security switch
UL-listed, normally-closed
security switch
UL-listed, normally-open
security switch
Monitor
Module
Monitor
Module
Control
Module
(-)
(+)
afp4burglar-fs.cdra
