Notifier AFP-200 Installation Manual

Installation Standard Relays (TB3)
36 AFP-200 PN 15511:H2 10/14/2002

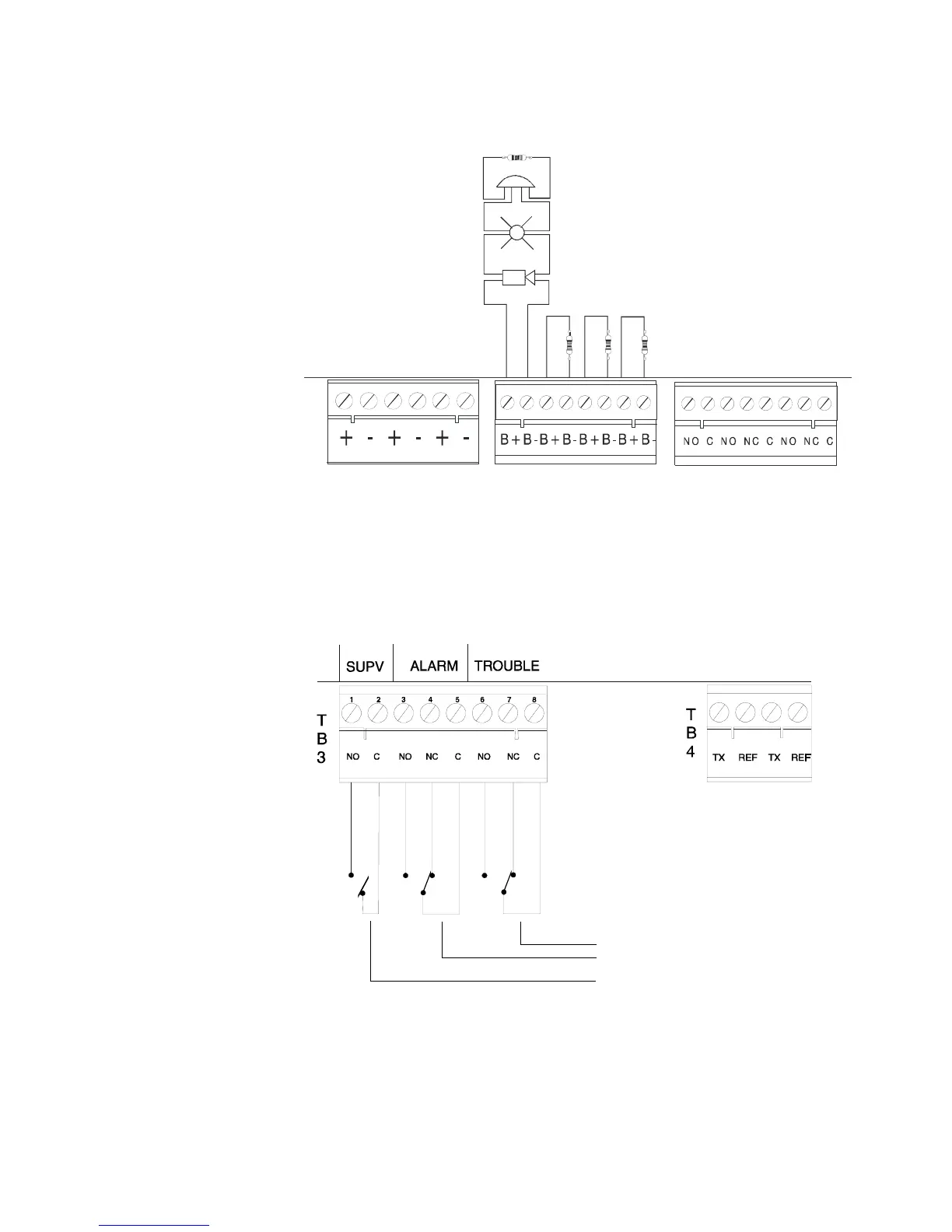

Figure 12 Output Circuit Connections (TB2)
2.7 Standard Relays (TB3)
The control panel provides a set of Form-C alarm and a set of Form-C trouble contacts
rated for 2.0 A @ 30 VDC (resistive). The control panel also provides a Form-A
supervisory contact rated for 2.0 A @ 30 VDC (resistive).
Figure 13 Relay Connections (TB3)
T
B
3
T
B
2
T
B
1
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
+ -
+ -
Polarized Horn
Polarized Strobe
Style Y Notification
Appliance Circuit
(supervised and
power-limited)
Dummy Load all
unused Circuits 4.7K,
1/2-Watt
4.7K, 1/2-Watt (PN 71252 UL-listed)
+ –
Note: Notification circuit polarity
shown in alarm state.
Polarized Bell
afpoca.cdr
Form-C contacts
Form-A contact
Technical Manuals Online! - http://www.tech-man.com

Notifier AFP-200 Specifications

General

Control Panel Type	Addressable Fire Alarm Control Panel
Auxiliary Power Output	24 VDC, 500 mA
Operating Temperature	32°F to 120°F (0°C to 49°C)
Display	80-character LCD
Power Supply	120 VAC, 60 Hz
Capacity	198 addressable devices
Notification Appliance Circuits	2
Relay Contacts	3 (Form-C)
Relative Humidity	93% non-condensing
