Notifier AFP-200 Installation Manual

External Battery Charger Connecting the CHG-120
194 AFP-200 PN 15511:H2 10/14/2002
N.4 Connecting the CHG-120

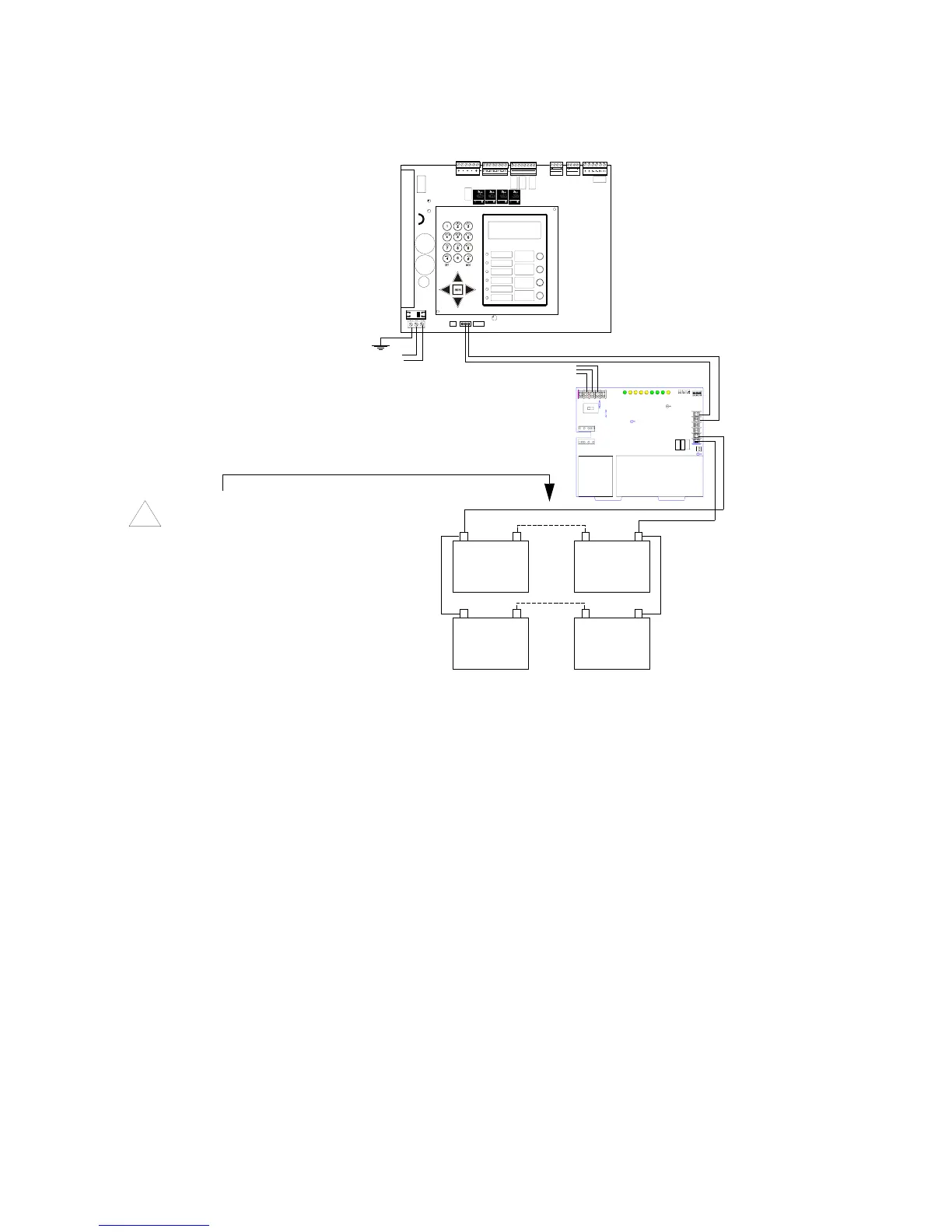

Figure 171 shows how to connect four 55 AH batteries to the charger:
Figure 171 Connecting the CHG-120 to the AFP-200
N.4.1 Connecting a CHG-120 to the AFP-200
Connect CHG-120 (tied to four batteries) to the AFP-200 as follows:
1. Remove all power sources to the charger.
2. Tie the batteries in pairs by connecting the battery negative terminals and the
battery positive terminals as shown in Figure 171.
3. Connect the battery negative cable to the TB2 terminal (on the charger labeled
“Battery –”) as shown in Figure 171.
4. Connect the battery positive cable to the TB2 terminal (on the charger) labeled
“Battery +”) as shown in Figure 171.
5. Proceed to the section “Connecting the Charger.” Do not connect the Battery
Interconnect Cable at this time—refer to the CHG-120 manual, part number
50641 for more detail.
TB2
F1 F2 F3
TB1
–
+
–
+
–
+
55 AH/
60 AH
(12 V)
55 AH/
60 AH
(12 V)
55 AH/
60 AH
(12 V)
55 AH/
60 AH
(12 V)
Out 2 +
J3
JP2
Battery +
Battery –
Out 2 –
–
+
–
+
–
+
–
+
A
FP2-
C
H
G
AC Power In
Hot
Gnd.
Neut.
A
C Power In
Batt +
Batt –
Battery Interconnect Cable
Battery Interconnect Cable
Warning: Do not
connect the Battery
Interconnect Cable
at this time.
!
Charger
AFP-200
TB2
