Notifier AFP-200 Installation Manual

Mounting the CHG-120 External Battery Charger
AFP-200 PN 15511:H2 10/14/2002 193
battery box. This means there is only room left for two 25 AH batteries in the BB-55 or NFS-LBB.
Figure 170 shows the mounting position.

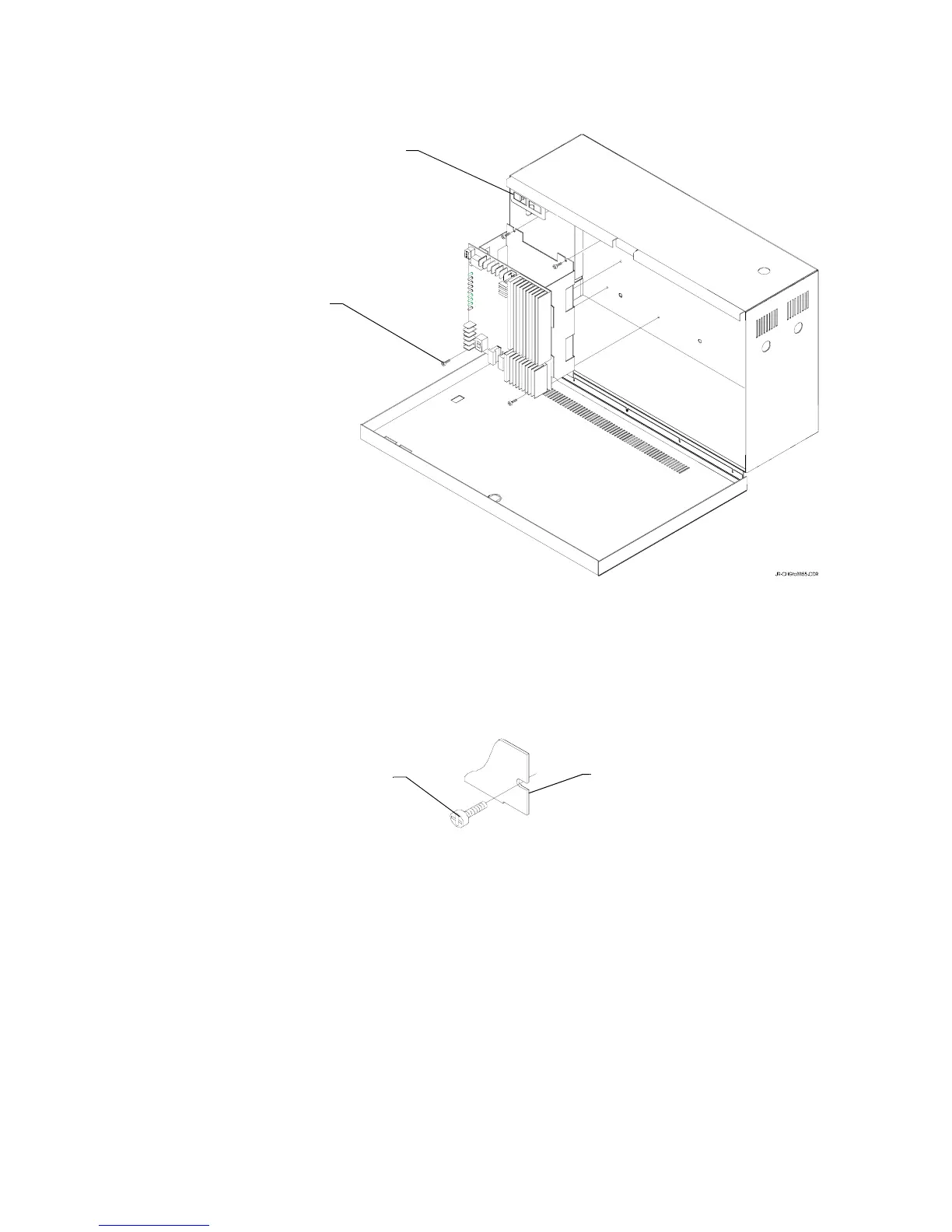

Figure 170 Mounting a Charger into a BB-55 or NFS-LBB
To mount a charger into the battery box, follow these instructions:
1. Place the charger chassis mounting slots in line with the mounting holes in the BB-55 or
NFS-LBB.
2. Insert the self-tapping screws through the charger chassis mounting slots and into the mounting
holes in the battery box.
3. Tighten the self-tapping screws.
Optional bracket for
mounting an optional
AM-1 or VM-1
Self-tapping screws
Self-tapping screw
Chassis mounting slot
Technical Manuals Online! - http://www.tech-man.com

Notifier AFP-200 Specifications

General

Control Panel Type	Addressable Fire Alarm Control Panel
Auxiliary Power Output	24 VDC, 500 mA
Operating Temperature	32°F to 120°F (0°C to 49°C)
Display	80-character LCD
Power Supply	120 VAC, 60 Hz
Capacity	198 addressable devices
Notification Appliance Circuits	2
Relay Contacts	3 (Form-C)
Relative Humidity	93% non-condensing
