Overview Expansion Power Supplies
AFP-200 PN 15511:H2 10/14/2002 177
Appendix J Expansion Power Supplies
J.1 Overview
Expansion power supplies provide additional power for notification appliances
connected to NAC 3 and NAC 4 on the control panel. You can install one of the
following expansion power supplies:
Table 67 Expansion Power Supplies
An expansion power supply mounts in the battery compartment of the cabinet. Batteries
must be relocated to the BB-17 Battery Box. This appendix contains instructions for
mounting and wiring an AVPS-24 and APS-6R as well as instructions for programming
the control panel.
WARNING: Because the AVPS-24/AVPS-24E supplies special purpose power that
is unfiltered & unregulated, only compatible notification appliances listed in the
Device Compatibility Document can be connected to NACs 3 and 4.
J.1.1 AVPS-24 Audio/Visual Power Supply
The AVPS-24 supplies power (unfiltered, unregulated, 3.0 A maximum) to Notification
Appliance Circuits (NACs) and occupies one position on the CHS-4 chassis. A trouble
cable is provided for connection to the control panel. The AVPS-24 mounts in the
bottom of the AFP-200 cabinet. AC power required for the AVPS-24 is 120 VAC,
50/60 Hz, 1.0 A and AC power required for the AVPS-24E is 220/240 VAC, 50/60 Hz,

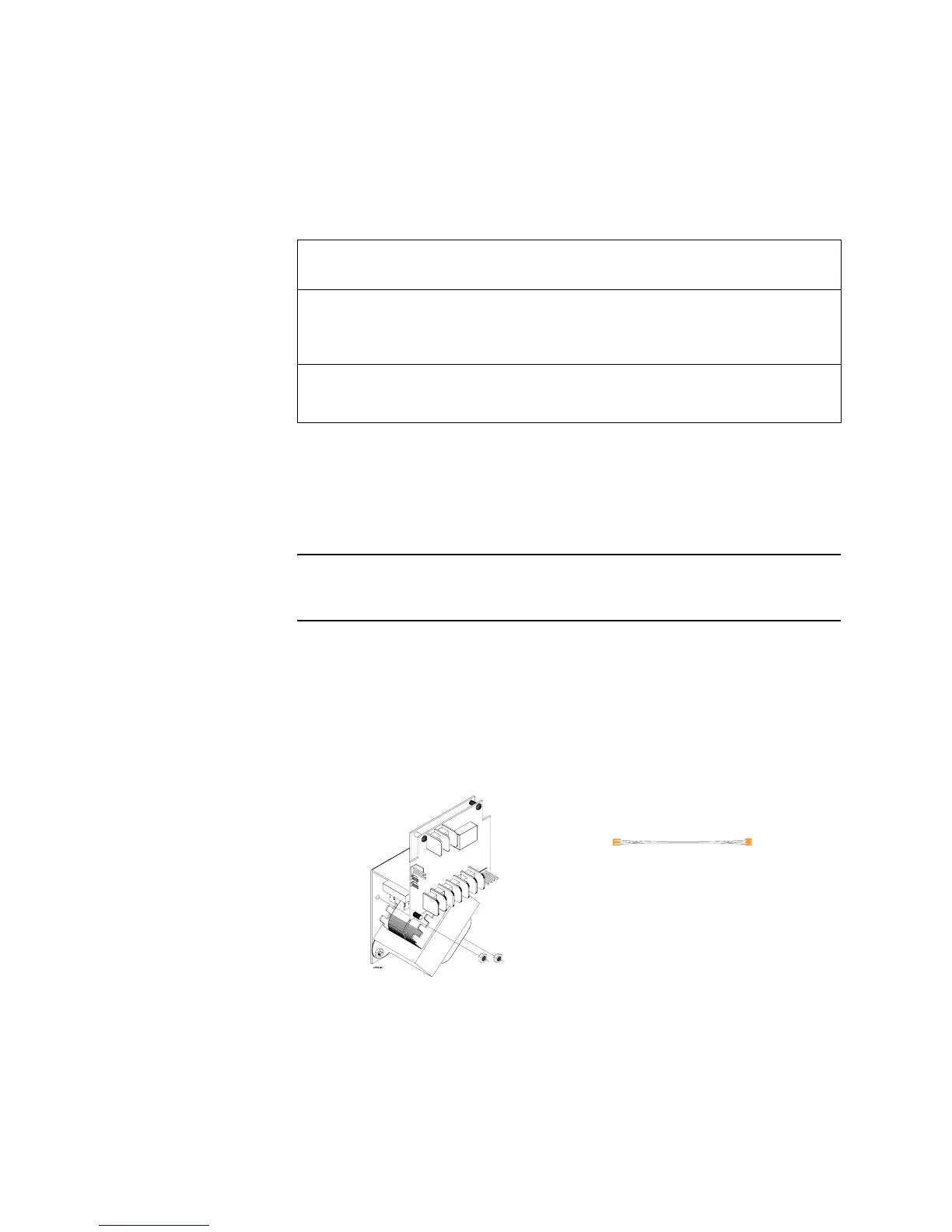

0.5 A. Figure 158 shows an AVPS-24 and the provided Power Cable
Figure 158 AVPS-24 Power Supply
J.1.2 APS-6R Auxiliary Power Supply
The APS-6R is a 150W cabinet-mounted power supply, designed to power devices that
require filtered, regulated, non-resettable power, such as NACs and Control Modules.
The APS-6R provides two 24 VDC (filtered) output circuits (3 A each, 6 A total, 4 A
Expansion Power
Supply
Description
Audio/Visual Power
Supply
(AVPS-24/AVPS-24E)
A 24 VDC unfiltered, unregulated power supply that supplies a
maximum of 3.0 A to the notification appliances connected to NACs 3
and 4 combined. The maximum current from any one circuit, however,
is limited to 2.5 A.
Auxiliary Power
Supply (APS-6R)
An APS-6R (120 VAC or 240 VAC input) supplies power to NACs and
provides two filtered, regulated, non-resettable 24 VDC outputs (3 A
each, 6 A total, 4 A continuous).
Power Cable (71093)
