System Overview Addressable Modules
22 AFP-200 PN 15511:H2 10/14/2002

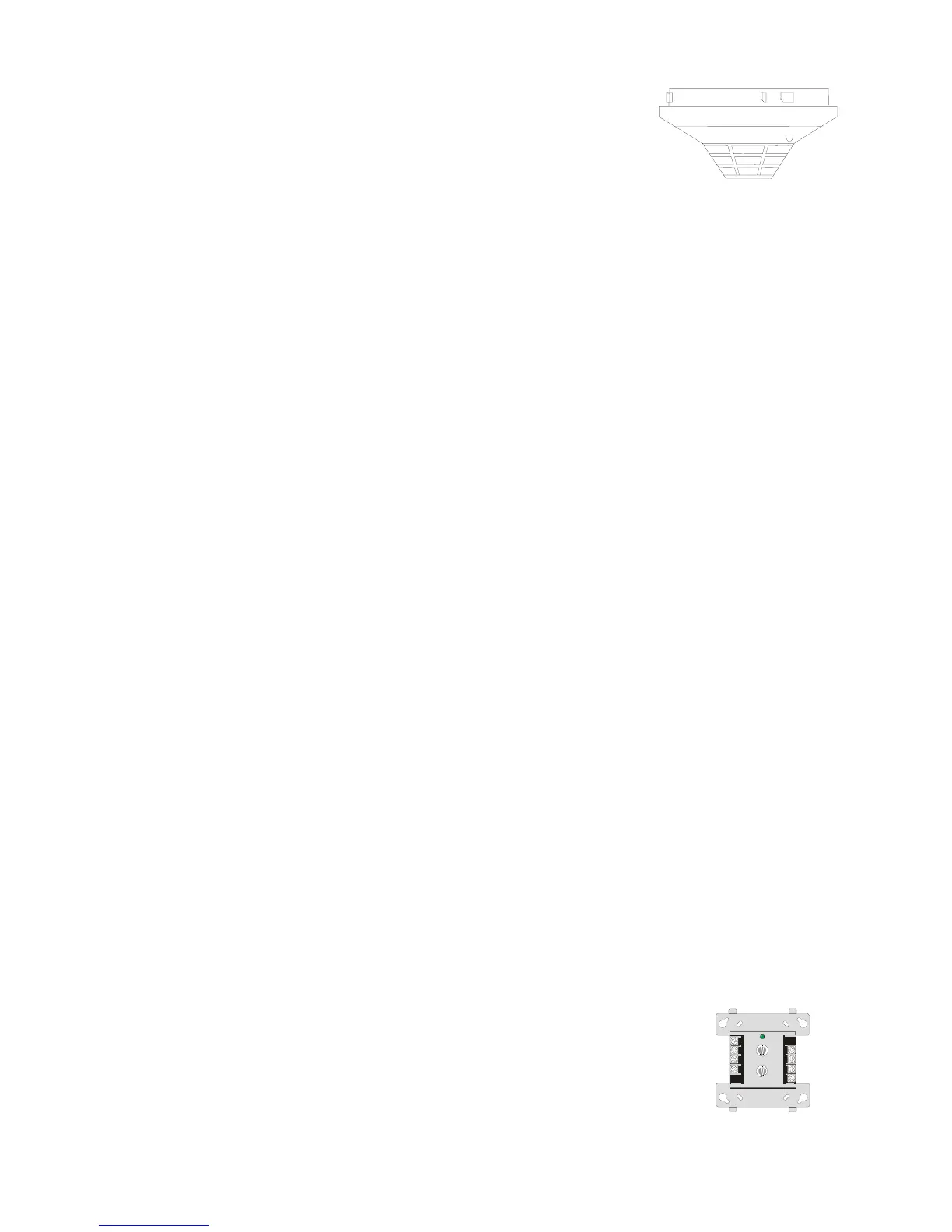

• FST-751. Intelligent thermistor sensing circuit for
fast response. Designed to provide open area
protection with 50 foot spacing capability. The
FST-751R incorporates a thermal rate of rise of
15°F (9.4°C).
• FSD-751P. Photoelectric Duct Detector. The
FSD-751RP includes an alarm relay.
• HPX-751. A special smoke detector that provides
early warning smoke detection in hostile
environments where traditional smoke detectors are
not practical.
Detector Bases
Several bases, to which the detectors are affixed, are available:
• B710LP. Standard U.S. Low-Profile base
• B501. Standard European flangeless base
• B501BH. Sounder base, includes B501
• B524RB. Intelligent relay base
• B524BI. Intelligent isolator base
• B224RB. Low Profile Intelligent relay base
• B224BI. Low Profile Intelligent isolator base
• B710HD. HARSH detector base
Accessories
The following is available:
• RA400Z. A Remote Single LED Annunciator that can be wired directly off of an
addressable detector for annunciation of that detector's alarm status.
1.7 Addressable Modules
1.7.1 Overview
Addressable modules include:
• Control modules. Provide an interface between the control panel and
conventional notification appliances such as horns and bells.
• Relay modules. Route power to relays under specified conditions; relays can
control non-resistive loads within power supply limitations.
• Monitor modules. Provide an interface between the control panel and initiating
devices, such as pull stations.
You can set each control, relay and monitor module to respond to an address with
built-in rotary decimal switches.
Note: A blinking LED on a monitor, control or relay module indicates communication
between the module and the control panel.
1.7.2 Module Descriptions
The monitor, control and relay modules and other addressable modules described below
can be used with the control panel:
Control Modules. FCM-1 control modules are used as
Notification Appliance Circuits (NACs) to power and
supervise compatible, UL-listed notification appliances. Wire
supervised circuits as NFPA Style Y or Style Z. Comes with a
thermoplastic cover for mounting to a 4-inch (10.16 cm) square
mounting box.
FST-751
8
9
10
11
12
13
14
150
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
TENS
ONES
LOOP
LOOP ADDRESS
ADDRESS
8
9
7
6
5
9
8
7
6
5
0
1
2
3
4
4
3
2
1
0
TENS
ONES
8
9
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
0
1
2
3
4
5
6
7
FMM-1.cdr
FCM-1
