System Overview Cabinet Dimensions
28 AFP-200 PN 15511:H2 10/14/2002
1.11.5 Relays (TB3)
Relays for Alarm, Trouble, Security, and Supervisory are available on terminal TB3 for
power-limited circuits only. Contact ratings for relays through TB3 are:
• 2.0 A at 30 VDC (resistive), 0.5 A at 30 VAC (resistive)
• Alarm and Trouble: Form-C
• Supervisory: Form-A
1.11.6 24 VDC Power (TB1)
Terminal Block (TB1) provides 24 VDC power as follows:
1.12 Cabinet Dimensions
1.12.1 Surface Mount with a BB-17 Battery Box

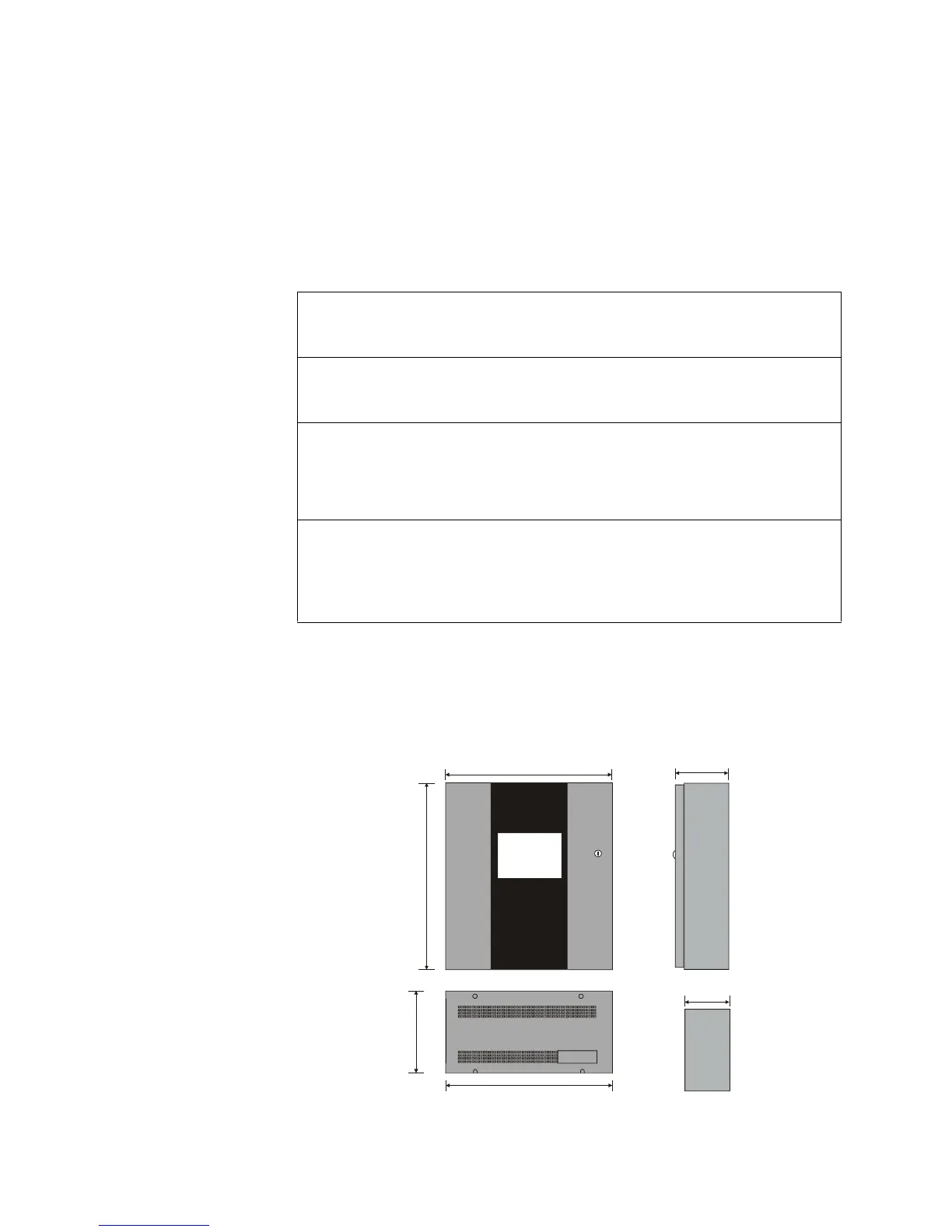

Figure 6 shows dimensions for mounting a cabinet with a BB-17 Battery Box.
Figure 6 AFP-200 Cabinet and BB-17 Battery Box Dimensions
Four-wire Smoke Detector Power
(24 VDC ± 5%) – TB1-5 and
TB1-6
• Max. ripple voltage: 10 mVrms
• Up to 500 mA is available for powering four-wire
smoke detectors
1,2
Non-resettable 24 V Power (24
VDC ± 5%) – TB1-3 and TB1-4
• Max. ripple voltage: 10 mVrms
• Total DC current available from this output is up to
500 mA (subtracted from four-wire smoke power)
2
High Ripple Regulated 24 V
Power (24 VDC ±10%) – TB1-1
and TB1-2
• Max. ripple voltage: 2 Vrms
• Total DC current available for powering external
devices is 1.0 A standby and 1.5 A alarm
2
.
This power is not recommended for LCD-80 or ACS
annunciators except for an ACM-8R.
1
For power supply calculations, refer to Appendix A.
2
Total current for regulated power, non-resettable power, four-wire smoke power, and four
Notification Appliance Circuits must not exceed 5 A or 8 A if using an AVPS-24 (refer to
Appendix J “Expansion Power Supplies”) or APS-6R. Total external system current in excess of
2.5 A requires 12 AH or 18 AH batteries—not 7 AH.
Door = 16.125"
(40.9575 cm)
Backbox = 16.0"
(40.64 cm)
Battery Box = 8.25"
(20.955 cm)
(Optional BB-17)
Door = 14.625" (37.1475 cm)
Backbox = 14.5" (36.83 cm)
Depth = 4.75" (12.065 cm)
Battery Box = 14.5" (36.83 cm)
(Optional BB-17)
Depth = 5.5" (13.97 cm)
afp2cab-surface.cdr
