Installation Option Module Installation
64 AFP-200 PN 15511:H2 10/14/2002

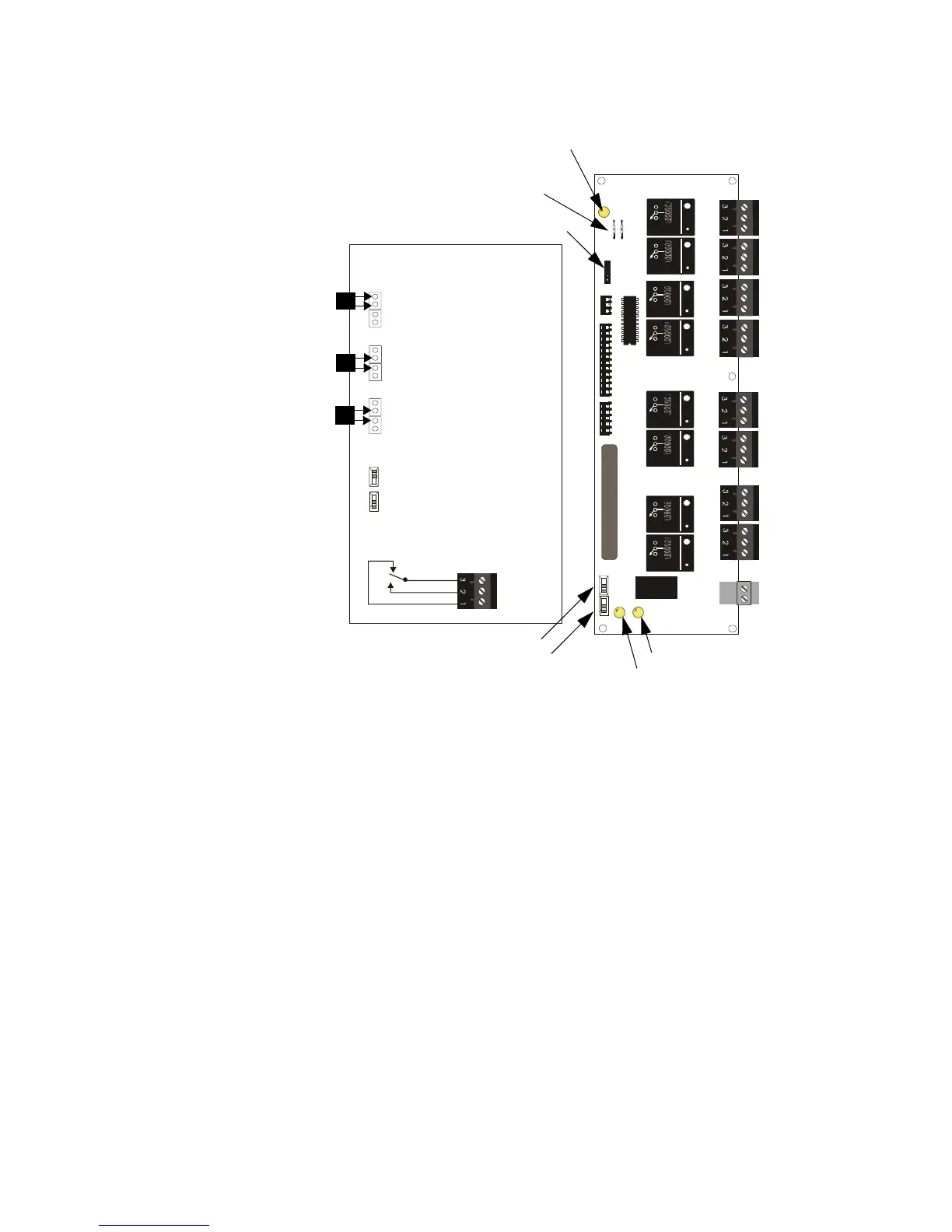

Figure 47 shows electrical connections for the RTM-8 module.
Figure 47 RTM-8 Module Connections
Notes on the RTM-8 module
1. Zone Relay Contact Ratings – 6 A @ 30 VDC or 300 VAC. Material: Silver
Nickel.
2. Refer to the power-limited label located on the AFP-200 cabinet door. Make a
notation on the label for each circuit used as a nonpower-limited circuit. (Refer to
the example on the label).
The RTM-8 module is not
suitable for separate
transmission of both alarm
and trouble signals to remote
station.
3. Polarity Reversal Output – 24 VDC (nominal), 10 mA maximum rated current.
Internal resistance: 1200 ohms (nominal). Intended for connection to the polarity
reversal circuit of a remote station receiving circuit (Fire•Lite RS-82) having
compatible ratings. Output is power-limited. Wiring can exit the protected
premises.
4. Municipal Box output – Supervised for open circuit. Nonpower-limited. Maximum
short current circuit: 0.6 A. Maximum open circuit voltage: 27.6 VDC. Maximum
wire resistance: 3 ohms. Wiring can exit the protected premises.
C
NO
NC
Local Energy Municipal Box LED (yellow)
Relay Disconnect Switch
Transmitter Disconnect Switch
Transmitter Disabled LED (yellow)
Relay Disabled LED (yellow)
Zone 5
Zone 6
Zone 7
Zone 8
Transmitter
Output
(-) normal
(+) normal
Alarm/Trouble Polarity Reversal
Remote Station
JP1 must be cut
Alarm only Polarity Reversal
Remote Station
JP1 must be cut
Local Energy Municipal Box
Jumper JP1 is optional
Disconnected
Normal
JP-2 Jumper Settings
Switch Settings
Typical Form-C Relay
Configuration
JP2 - Transmitter Module Select
JP1 - Cut for polarity
reversal remote station operation
Zone 1
Zone 2
Zone 3
Zone 4
AFP200-RTM-8.cdr
Place jumper
over pins as
indicated
Jumper
Jumper
Jumper
