Basic copy operations
3
d-Color MF25
3-7
2

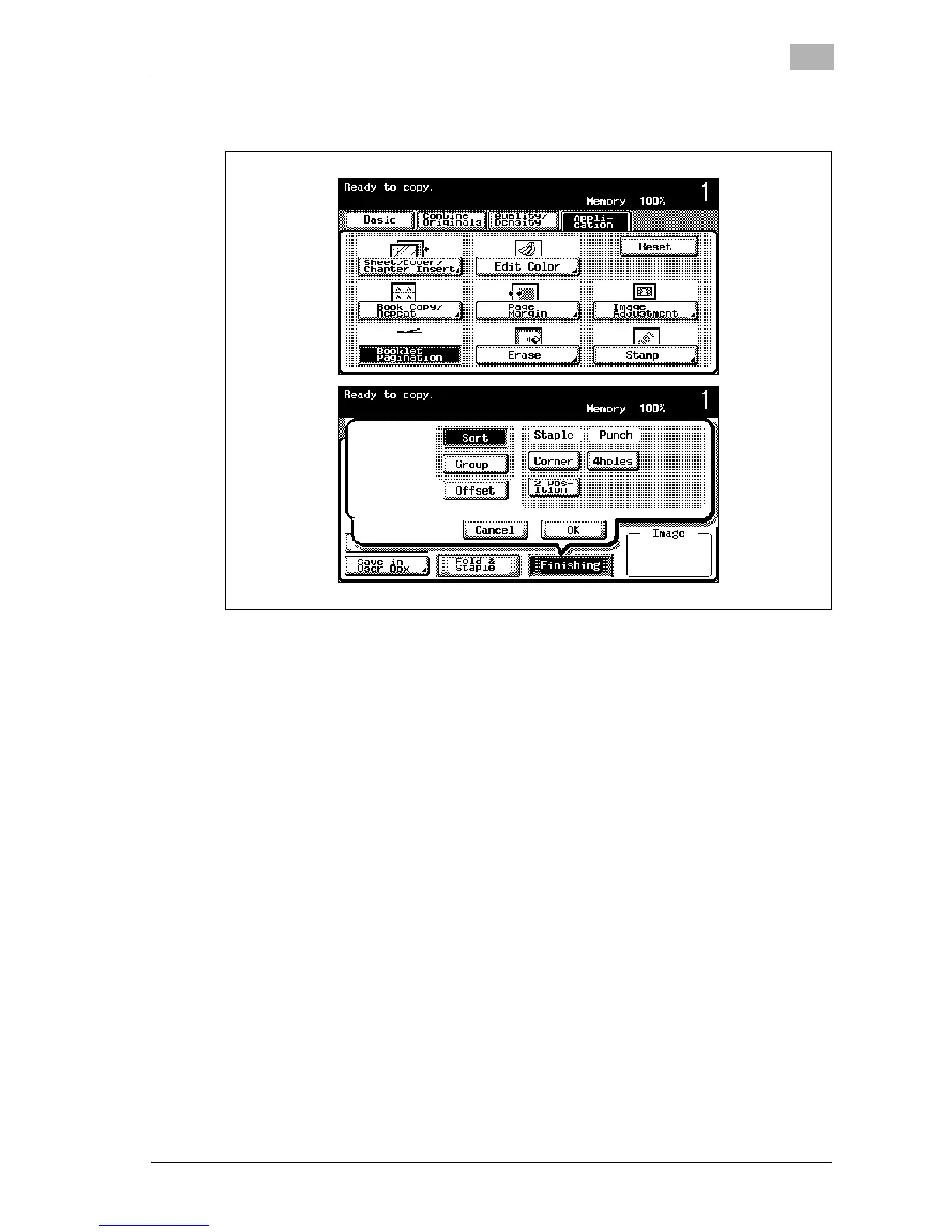

Set the
“Booklet Pagination” function.
The “2 Position” Staple setting is automatically cancelled, and the
“Booklet Pagination” function is set.
To select the “2 Position” Staple setting, cancel the “Booklet Pagina-
tion” function, and then select the “2 Position
” setting.
