3
Basic copy operations
3-62
d-Color MF25
Adjusting the reproduction quality of text
0
The
default setting is “0”.
1

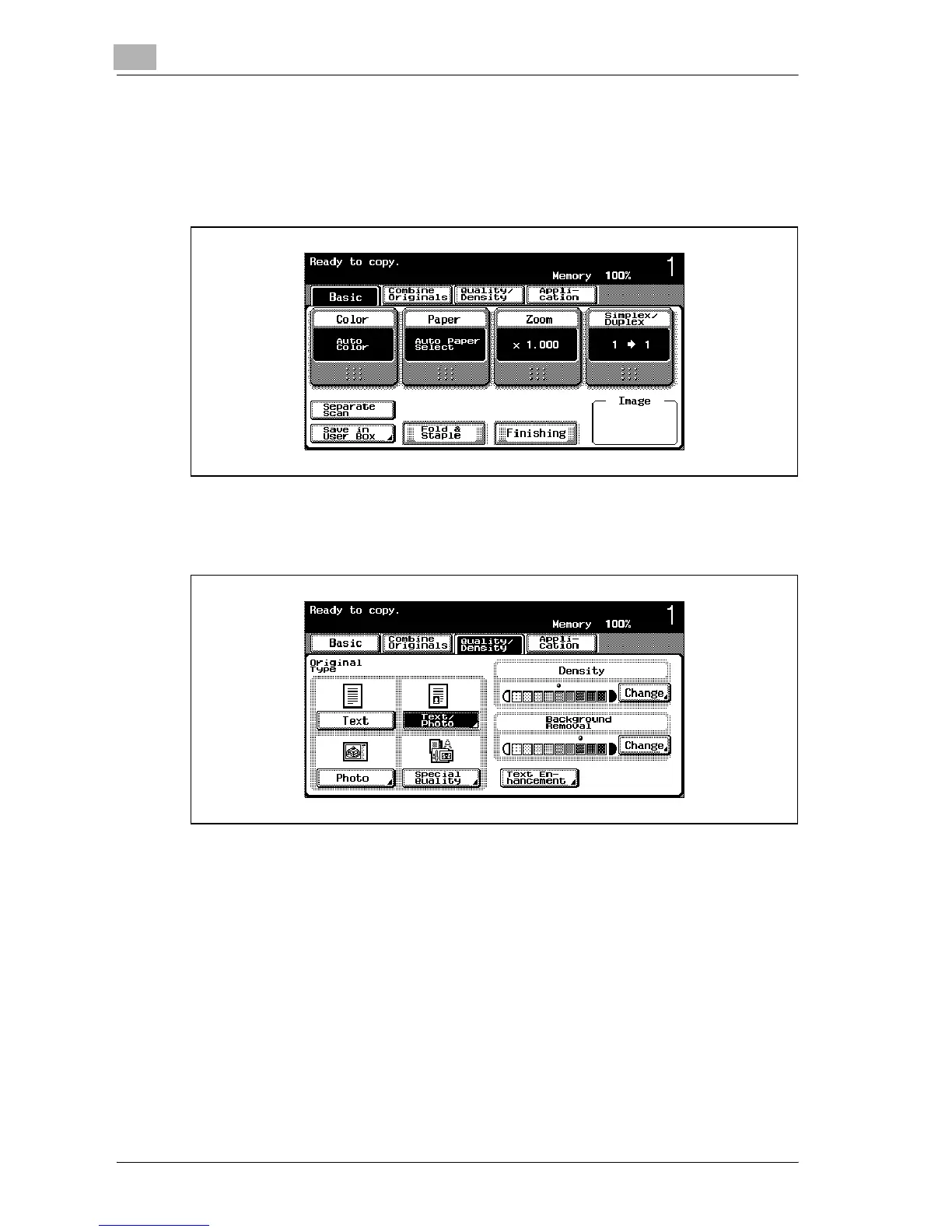

In the Basic screen, touch [Quali
ty/Density].
The Quality/Density screen appears.
2
Touch [Text Enhanceme
nt].
The Text Enhancement screen appears.
201
203
