Replacing toner cartridges and staples and emptying waste containers
9
d-Color MF25 9-13
To replace the staple cartridge for finisher FS-603

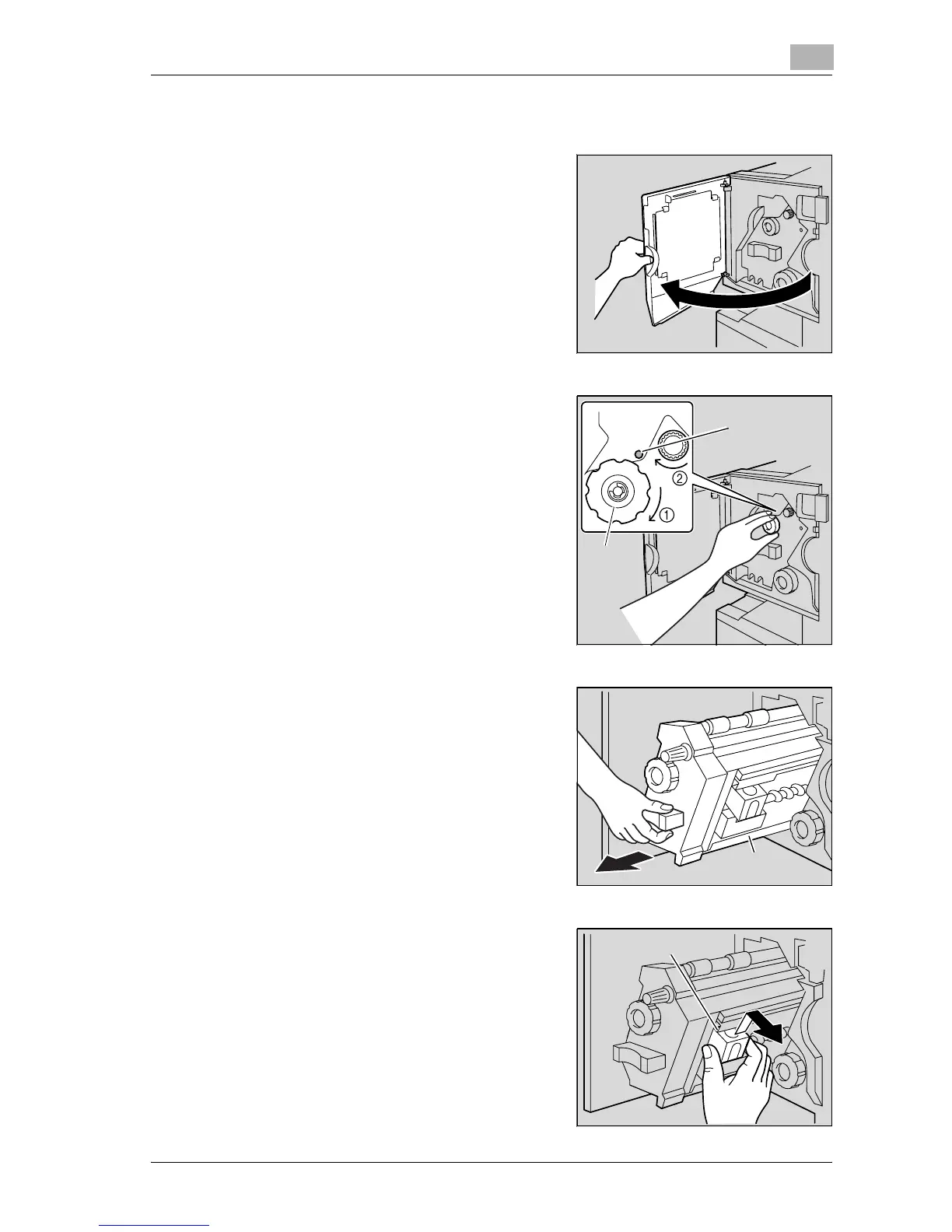

1 Open the front door of the finisher.
2 Turn misfeed-clearing dial 1 clock-
wise until the removal indicator is
completely blue.
?
What should be done if the mis-
feed-clearing dial 1 is turned too
far?
% Turn the misfeed-clearing dial 1
counterclockwise to finely adjust
it.
3 Slowly pull out the stapler unit as far
as possible.
4 Grasp both sides of the staple car-
tridge holder, lift it up, and then pull it
out.
Removal
Misfeed-
clearing
dial 1
indicator
Stapler unit
Staple cartridge
holder
