Troubleshooting
5
d-Color MF25
5-35

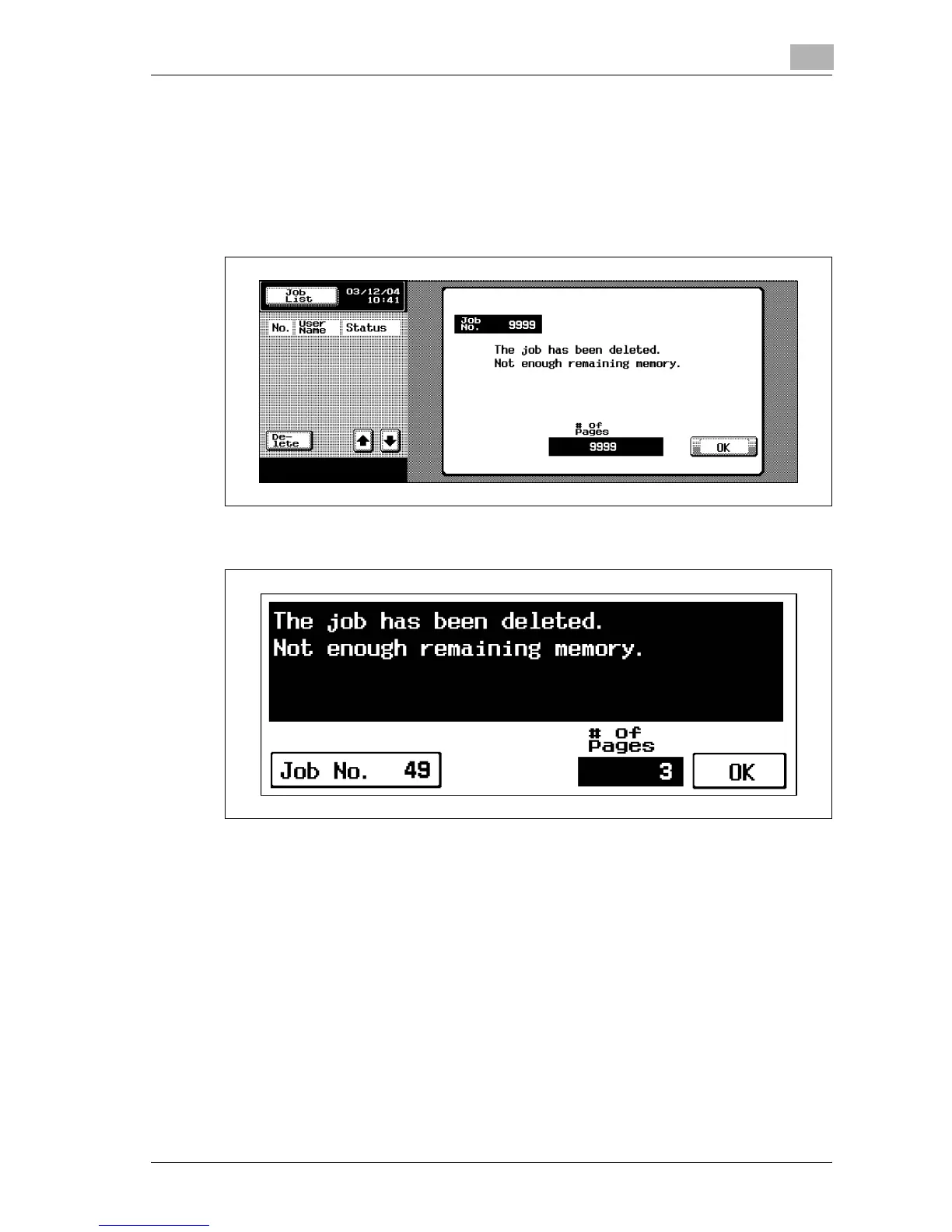

Memory becomes full while queuing a job
This message appears when the memory becomes full and the scanned
job
was deleted while scanning a document for a job to be queued.
Check the number of pages counted for the document, and then adjust the
number of pages in the job to be queued.
Display in Enlarge Display mode
298
300
