Basic copy operations
3
d-Color MF25
3-41
3

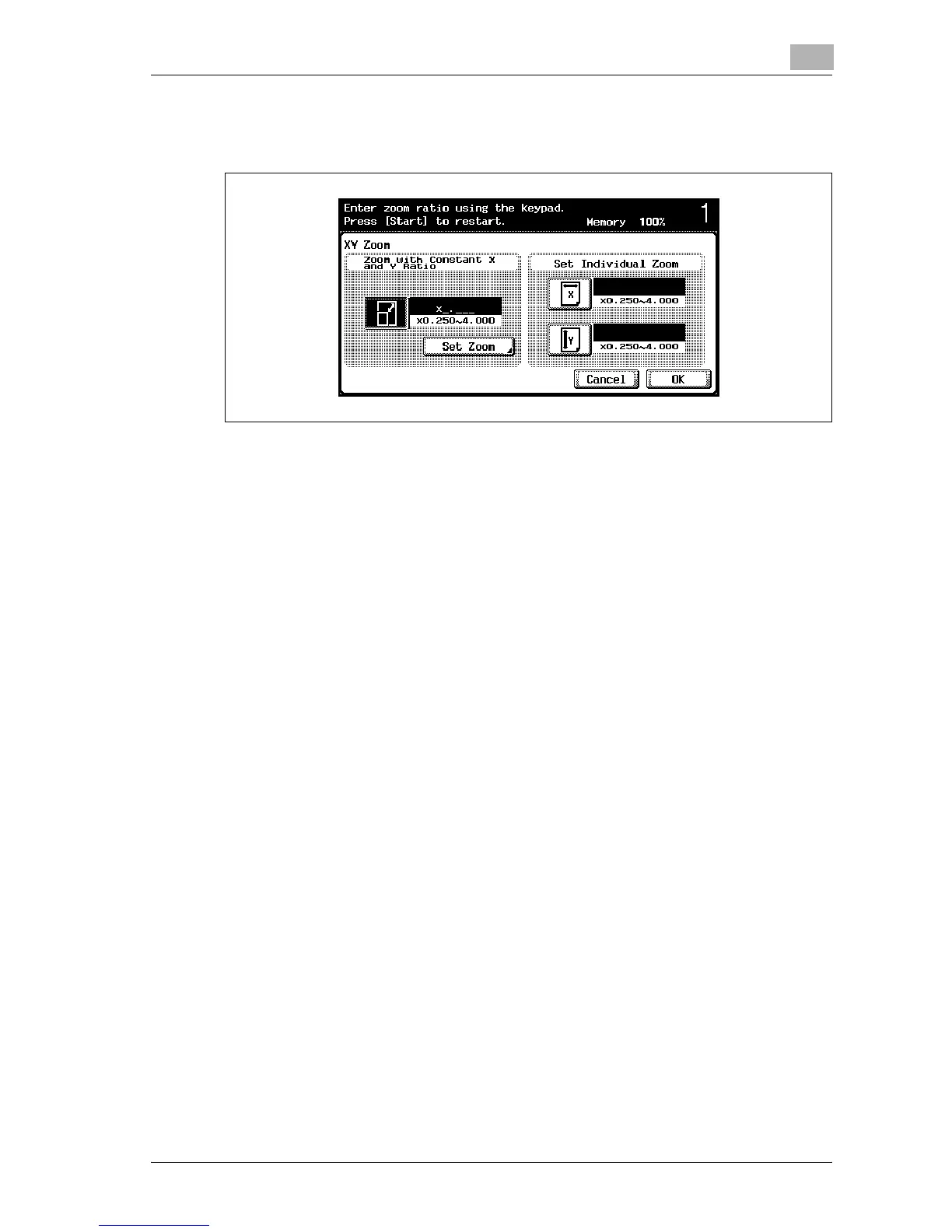

Touch
the button under “Zoom with Con
stant X and Y Ratio”, and then
use the keypad to type in the desired
zoom ratio.
–
To cancel changes to the settings, touch [Cancel].
4
Touch [OK], and then touch [OK] in the next screen that appears.
The Basic scre
en appears
again.
180
182
