3
Basic copy operations
3-44
d-Color MF25
4
Touch

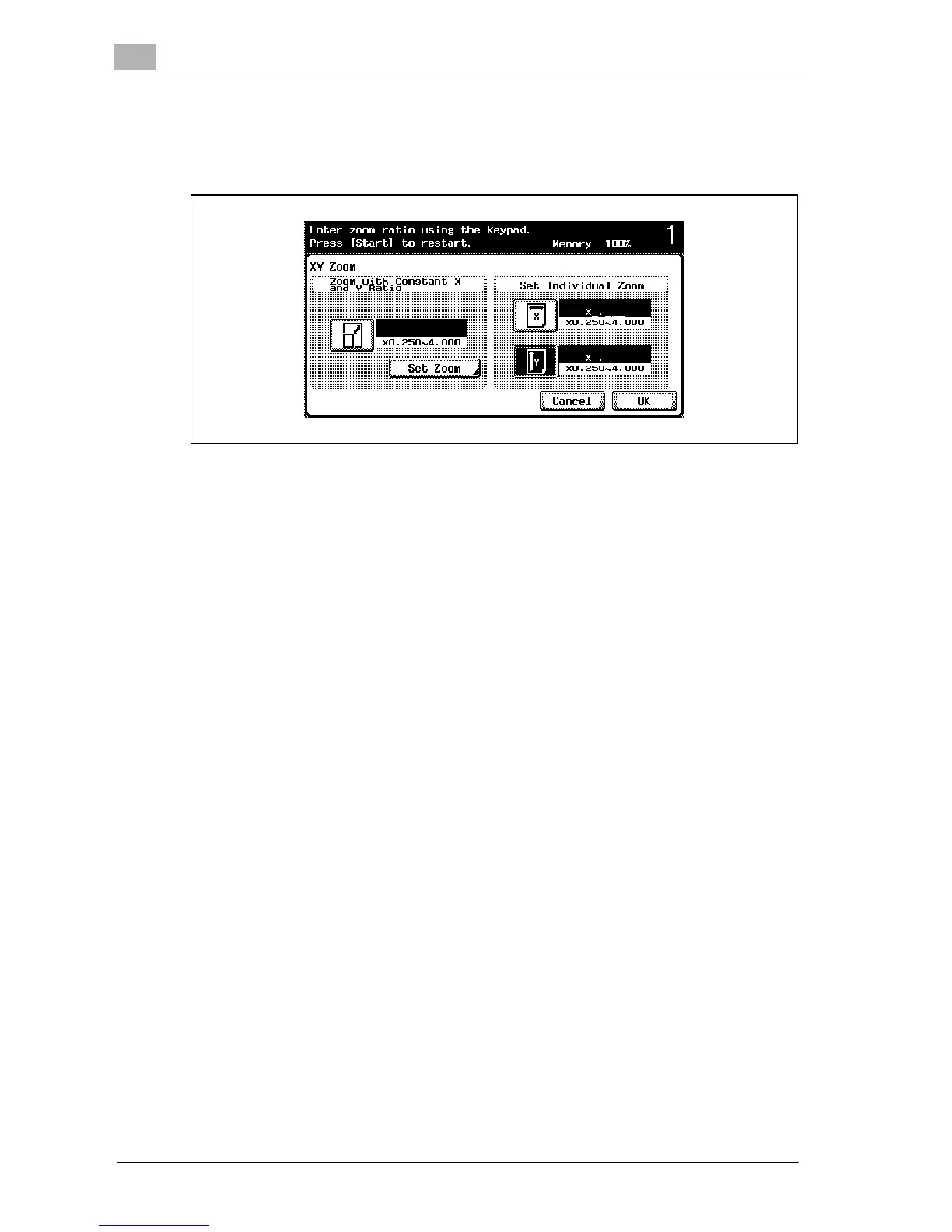

[Y] under “Set Individual Zoom”, and then use the keypad to
type in the desired zoom ratio (between ×0.250 and
×4.000) for the Y
direction.
–
To cancel changes to the settings, touch [Cancel].
5
Touch [OK], and then touch [OK] in
the next screen that appears.
The Basic scre
en appears
again.
