Copy paper/original documents
7
d-Color MF25
7-25
3

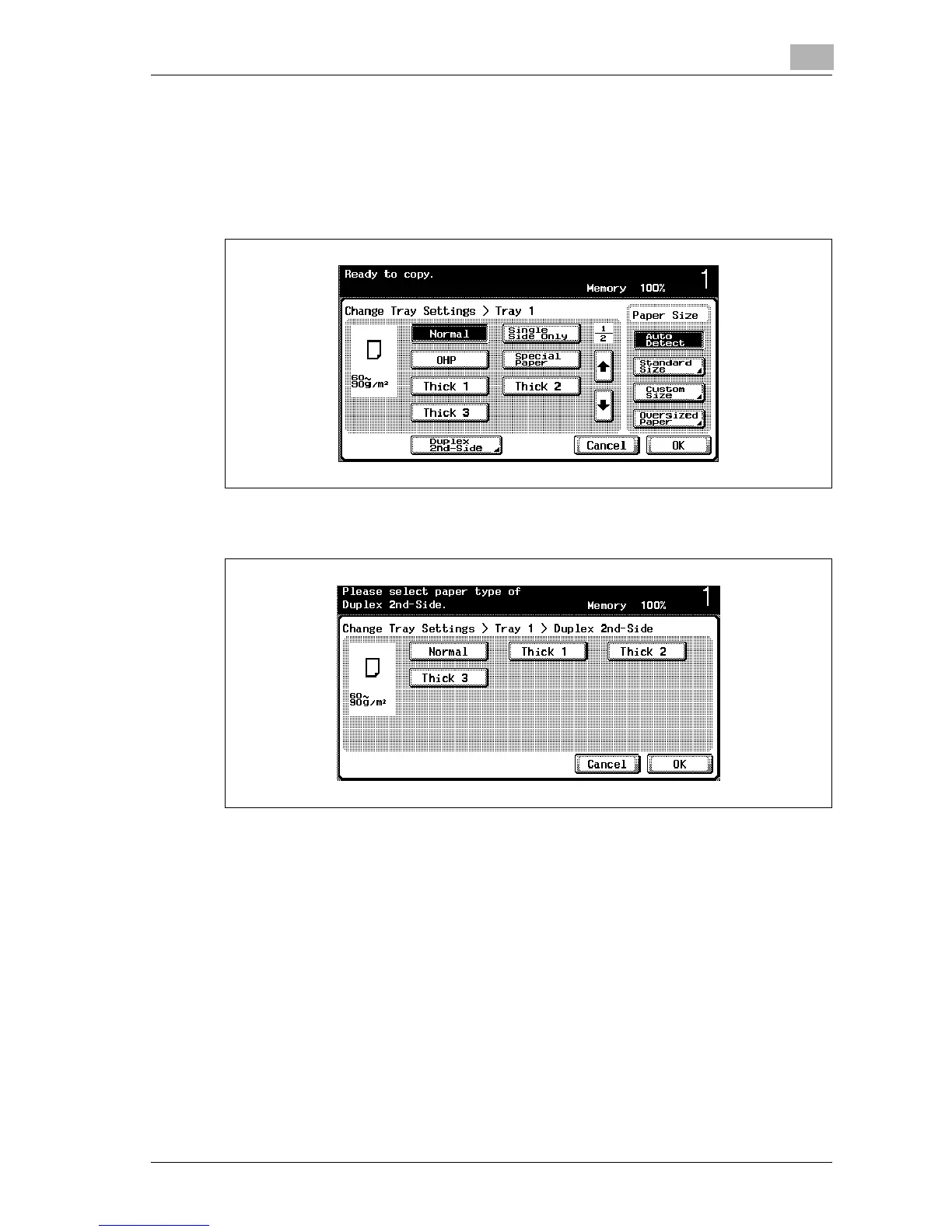

Touch [Change Tray
Settings].
4
Touch [Duplex 2nd-Side].
5
Select the setting for
the type of used paper that is loaded.
6
Touch [OK], and then touch [OK] in the next two screens that appear.
The Basic scre
en appears
again.
